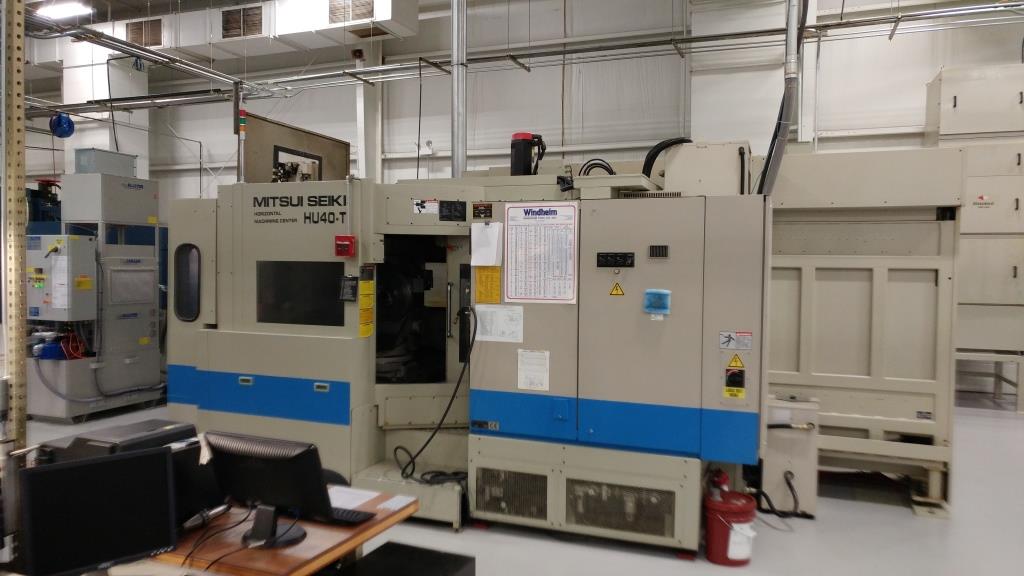

Mitsui Seiki HU40T 2001

machine specifications

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  30 HP

• Max Tapping Feed:

  100 IPM

• Tool Changer Type:

  60 ATC

• APC:

  60 Station

• X Travel:

  X +11.050 to X -13.000 from C/L 50T

• Y Travel:

  Y +11.062 to Y -11.062 from C/L 50T

• Z Travel:

  27.9528 minus TLO from Gage Line of spindle to C/L of B-axis.

• B Travel:

  180º (trunnion/table perpendicular to spindle = B0, B90 rotates clock wise)

• C Travel:

  0 - 360º

• Infinite Indexing:

  Integral B&C axis table

• Rotary encoder feed back:

  0.001º (360,000 positions)

• Rotation Speed:

  .01 - 7,200 º

• Indexing accuracy:

  ± 3 sec

• Repeating accuracy:

  ± 1.5 sec

• Max permissible C-axis plain table load:

  440 lb

• Spindle Taper (CAT/BT):

  HSK-463
