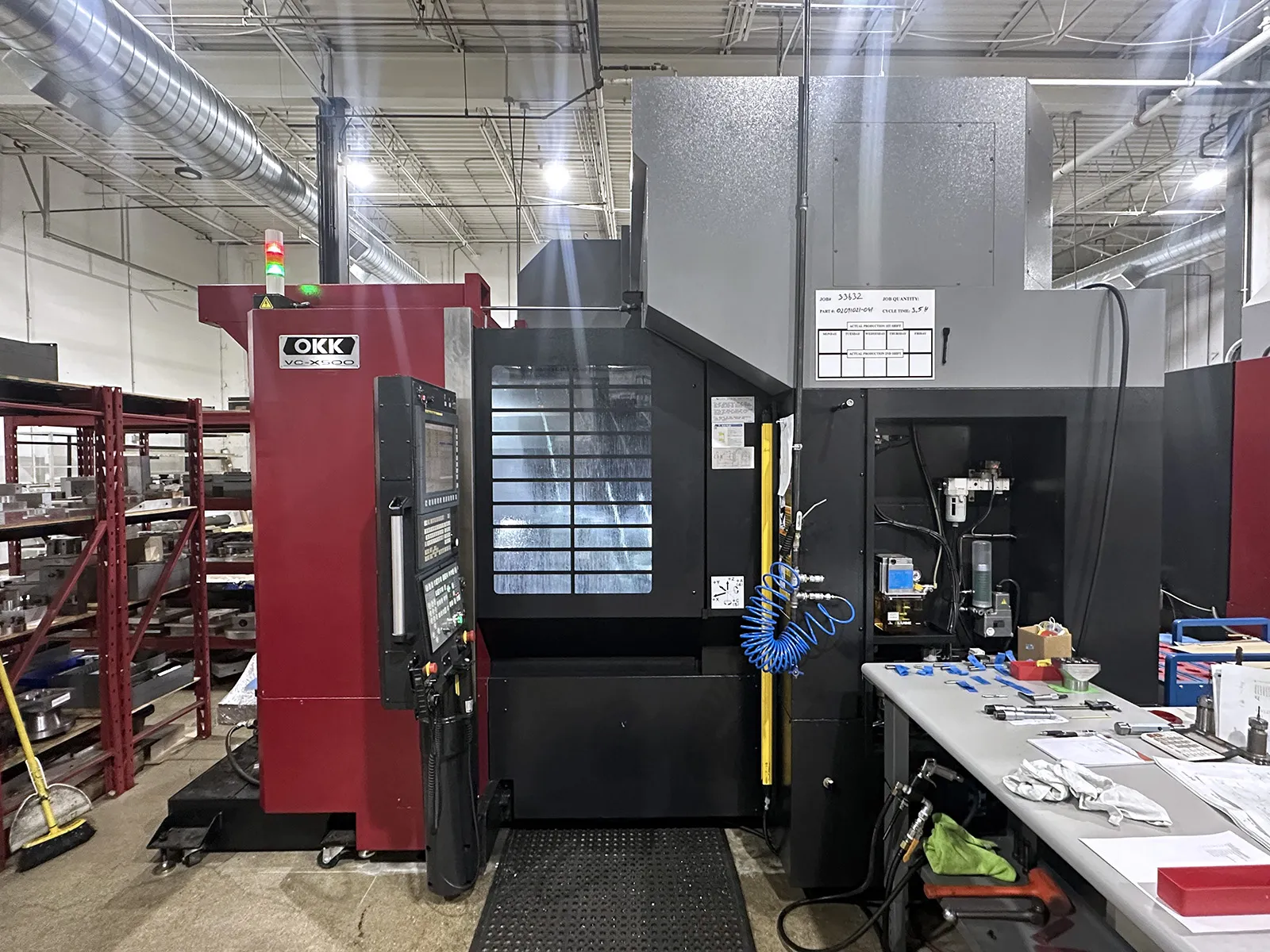

OKK VC-X500 2021

machine specifications

• X-Axis Travel:

  27.56"

• Y-Axis Travel:

  33.46"

• Z-Axis Travel:

  24.02"

• A-Axis Travel:

  -120~+30

• C-Axis Travel:

  360 deg

• Distance from table top surface to spindle nose:

  5.91" ~ 29.92"

• Distance from column front to spindle center:

  20.87"

• Table Work Surface Area:

  19.69" x19.69"

• Max. workpiece weight loadable on table:

  1102 lbs

• Distance to the table work surface from the floor:

  42.52"

• Spindle Speed:

  100~12000

• Number of spindle speed change steps:

  Electric 2-step speed change

• Spindle Nose:

  CAT 40 Big Plus

• Spindle bearing bore diameter:

  2.56"

• ATC:

  60

• Dimensions:

  146.46" x 96.46"

• Weight:

  26500 lbs
