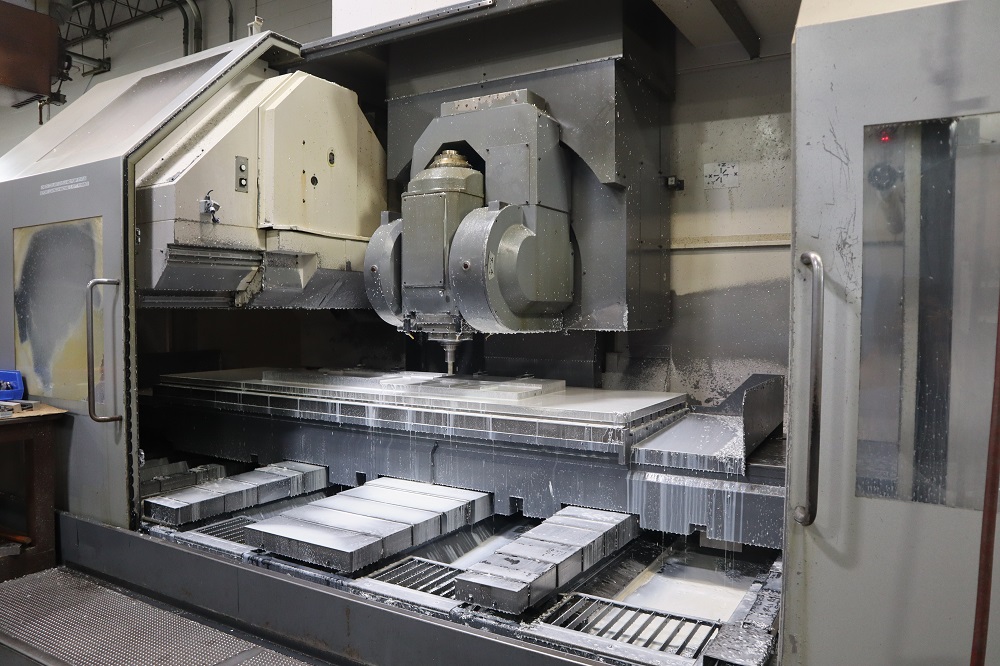

Okuma Millac 853PF-5X 2008

machine specifications

• Table Dimensions:

  126" X 33.5"

• Max Table Load:

  6,600 Lbs.

• X-Axis Travel:

  120.08"

• Y-Axis Travel:

  33.46"

• Z-Axis Travel:

  27.56"

• A-Axis Travel:

  ±35°

• B-Axis Travel:

  ±35°

• Spindle Nose to Table:

  5.91" – 33.46"

• Spindle Center to Column:

  36.61" (slideway)

• Spindle Bore Taper:

  Cat 50

• SPINDLE SPEED RANGE:

  60 – 12,000 Rpm

• Spindle Drive Motor:

  75 Hp

• Spindle Bearing:

  I.D.: 3.54"

• Tool Changer:

  30 ATC

• Max Tool Length:

  13.78"

• Max Tool Weight:

  44 Lbs.

• Tool Change Time (T - T / C - C):

  9 / 16

• Coolant Pump Motor:

  2.9 Hp

• Coolant Tank:

  396 Gal.

• Spindle Center To Column Slideway:

  36.61"

• X-AXIS BALLSCREW DIA./PITCH:

  2.48" / 0.42"

• Y-AXIS BALLSCREW DIA./PITCH:

  1.97" / 0.63"

• Z-Axis Ballscrew Dia./Pitcc:

  1.97" / 0.47"

• X, Y, Z AXIS THRUSTS:

  3,527 Lbs.

• Rapid Traverse (X/Y Axis):

  1,181 Ipm

• Rapid Traverse (Z Axis):

  945 Ipm

• RAPID TRAVERSE (A/B AXIS):

  3600 Deg./Min.

• Cutting Feedrate X/Y/Z Axis:

  0.039 – 945 Ipm

• Cutting Feedreate A/B Axis:

  1 – 2,400 Deg./Min.

• HYDRAULIC UNIT MOTOR:

  3.7 Hp
