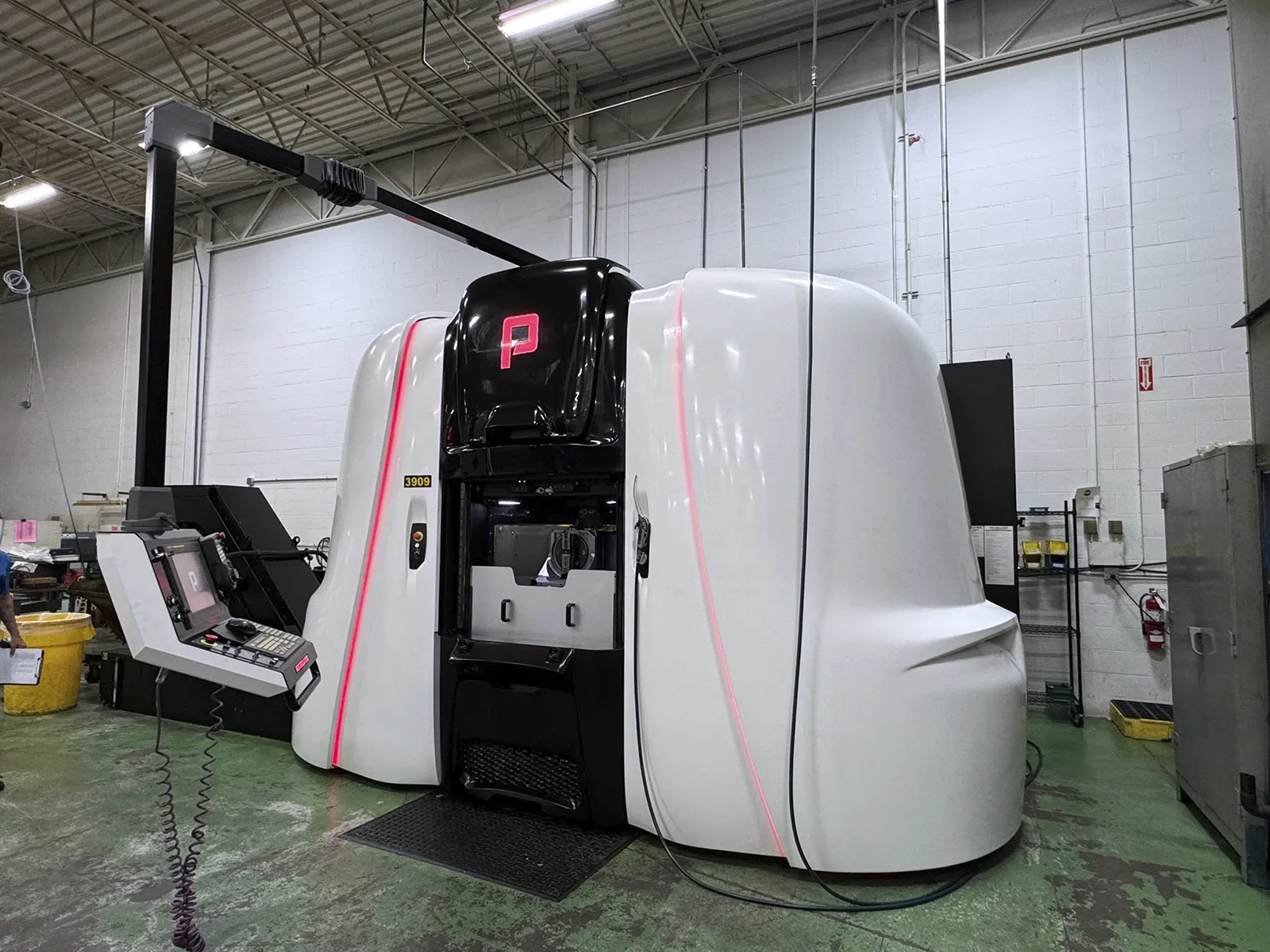

Porta Solutions Multicenter 3 Spindle 2020

machine specifications

• Number of Tables:

  4

• Max. Rotation Diameter:

  18.9”

• Rotation Time for 90°:

  0.9 seconds

• Centralized Hydraulic Attachments:

  2

• Clamping System:

  Hydraulic

• Programmable Division of 0.1°:

• Number of Modules:

  3

• Tool attachment:

  CAT 40

• Axis X stroke:

  9.84”

• Axis Y stroke:

  12.8”

• Axis Z stroke:

  7.87”

• Max. spindle rotation speed:

  6,000 rpm

• spindle power:

  15HP

• X, Y axis positioning precision:

  ±0.0125

• Z axis positioning precision:

  ±0.02

• X, Y axis repeatability precision:

  ±0.005

• Z axis repeatability precision:

  ±0.005

• Number of tool change:

  3

• Positions per tool changer:

  12+12+12

• Max. tool weight:

  17.64 lbs

• Max Tool Diameter:

  3.15”

• Max Tool Length:

  9.84”

• Max tool diameter (with empty next positions):

  4.72”

• Tool Change Time:

  3.4 seconds (with brake motor)
