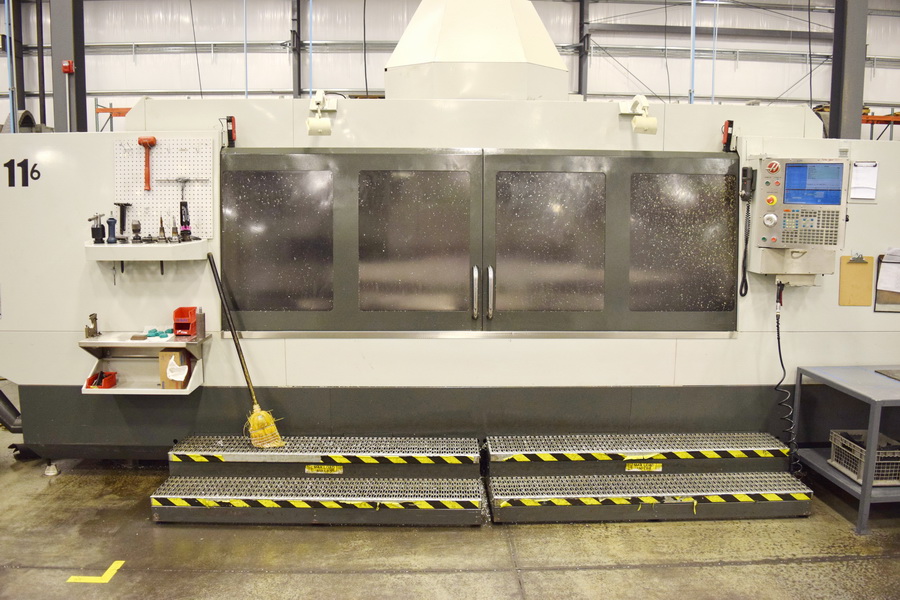

Haas VR-11 2013

machine specification

• X-AXIS TRAVEL
• 120"

• Y-AXIS TRAVEL
• 40"

• Z-AXIS TRAVEL
• 30"

• MAX RATING X
• 7.5 HP

• MAX RATING Y
• 5.0 HP

• MAX RATING Z
• 5.0 HP

• A-AXIS TILT
• ± 32 °

• MAX THRUST X/Y/Z
• 3400 LB

• T-SLOT WIDTH
• 5/8 "

• MAX CUTTING A/B
• 600 °/MIN

• MAX TOOL WEIGHT
• 12 LB

• COOLANT CAPACITY
• 95 GAL

• MAX TOOL DIAMETER
• 3.5 "

• TOOL TO TOOL (AVG)
• 11.0 SEC

• BEARING LUBRICATION
• Air/Oil Injection

• REPEATABILITY A & B AXES
• 10 ARC-SEC

• T-SLOT CENTER DISTANCE
• 4.92 "

• POSITIONING A,B AXES (±)
• 45 ARC-SEC

• DRIVE SYSTEM
• Vector Drive

• TAPER
• CT40

• TABLE SIZE
• 120" x 28"

• TOOL CHANGER
• 32 ATC

• MAX SPEED
• 15,000 RPM

• MAX RATING
• 30 HP

• MAX CUTTING
• 360 IN/MIN

• RAPIDS ON A/B
• 1900 °/MIN

• RAPIDS ON X
• 360 IN/MIN

• RAPIDS ON Y & Z
• 600 IN/MIN

• AIR REQUIRED
• 9 SCFM, 100 PSI

• B-AXIS ROTATION
• ± 32 °

• SPINDLE NOSE TO TABLE
• 4" - 34"

machine equipped with

• 5 AXIS CNC
• AUTOMATIC CHIP AUGER
• 750 MB PROGRAM MEMORY
• HIGH SPEED MACHINING
• RIGID TAPPING
• FLOOD COOLANT SYSTEM
• 30 HP (22.4 KW) VECTOR DRIVE
• HIGH INTENSITY LIGHTING
• ETHERNET INTERFACE
• 32-STATION CAROUSEL TOOL CHANGER
• DUAL HALOGEN LAMPS DOOR ACTIVATED
• 40 TAPER PROGRAMMABLE COOLANT NOZZLE

machine description

New in 2013, this used Haas Machining Center features a 15,000 RPM spindle speed, an automatic chip auger, a 750 MB program memory, 5- axis CNC, 40 Taper Programmable Coolant Nozzle, Rigid Tapping, and high-speed machining. This used mill has a 120" x 28" table size, a 32 Tool ATC, and a CAT 40 Spindle Taper. The CNC machining center has 120"X x 40"Y x 30"Z travels. This CNC machine is currently under power. Call MMI at 312.266.4150 to schedule an inspection.
