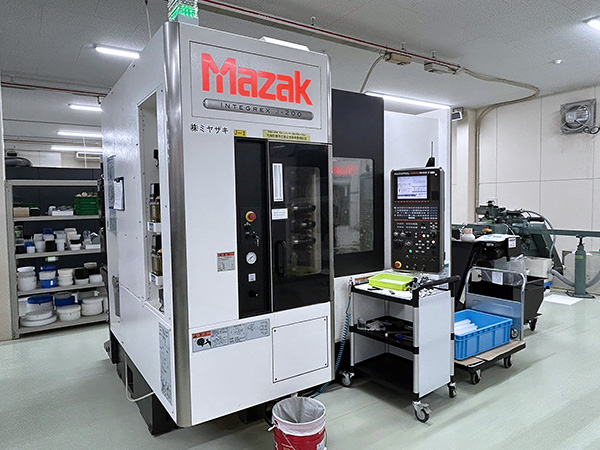

Mazak Integrex j-200 2013

machine specifications

• Max Turning Diameter:

  19.69"

• Maximum Cutting Length:

  19.69"

• X-Axis Travel:

  17.72"

• Z-Axis Travel:

  21.65"

• Y-Axis Travel:

  7.87"

• C-Axis Indexing:

  0.001 deg

• Main Spindle Bore Diameter:

  3"

• Main Spindle Maximum Bar Work:

  2.5"

• Main Spindle Speed:

  5,000 RPM

• Main Spindle Horsepower:

  15HP

• ATC Magazine Capacity:

  36

• B Axis Rotary Tool Spindle Speed:

  12000 rpm

• B-Axis Rotary Tool Spindle Horsepower:

  10 hp

• B-Axis Indexing:

  1 degree

• Parts Catcher:

  Yes

• Chip Conveyor:

  Yes

• Milling Spindle Synchronous Tapping:

  Yes

• Tool Eye Automatic Front Spindle:

  Yes

• Coolant Thru Milling Head:

  Yes

• Multi Tap Transformer:

  Yes

• Control:

  CNC (MAZATROL MATRIX)

• Weight:

  13,530 LBS
