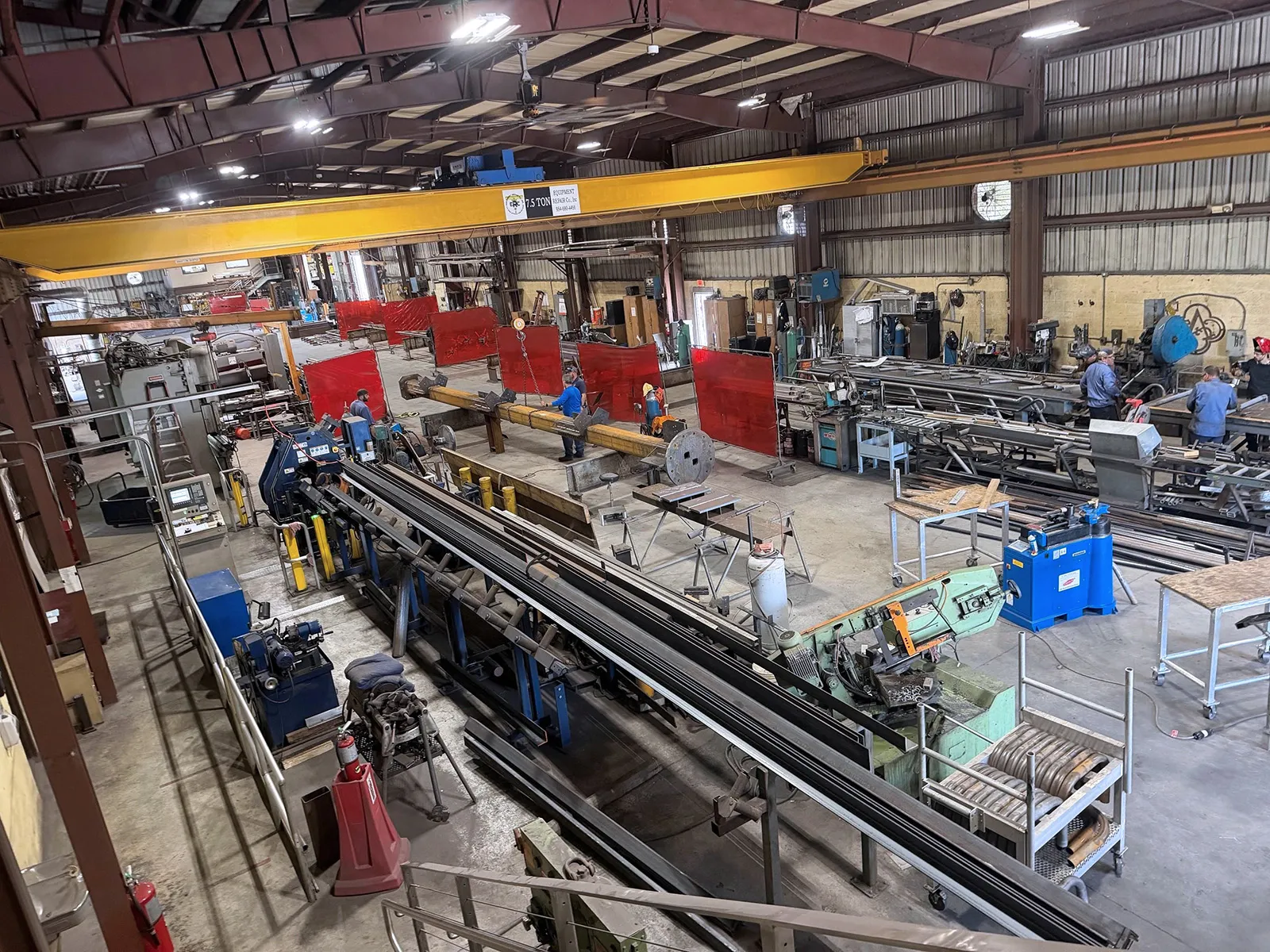

Peddinghaus Ocean Clipper Angle Line 2015

machine specifications

• Angle Sizes:

• Max angle size:

  6 x 6 x 5/8" (150 x 150 x 15 mm)

• Minimum angle size:

  1-1/2 x 1-1/2 x 1/8" (40 x 40 x 4 mm)

• Drill One Leg - Round Hole Only:

• Minimum Hole Diameter:

  5/16" (8 mm)

• Maximum Hole Diameter:

  1-9/16" (40 mm)

• Minimum Drill Gauge:

  0.5" (12 mm)

• Maximum Drill Gauge:

  5.5" (140 mm)

• Drill Feed Rate:

  2-10 inch/min (50-250 mm/min)

• Punch One Leg - Slots, holes, shapes etc:

• Punching Tonnage:

  75 Tons US (68 Metric Tons)

• Maximum Punch Size:

  1-1/4" (32 mm) diameter

• Punch Cycle Time:

  2 seconds

• Shear - Cut to Length:

• Shear Tonnage:

  100 Tons US (91 Metric Tons)

• Minimum Drop:

  8.125" (206 mm)

• Shear Cycle Time:

  5 seconds

• Slug Size:

  1/2" (12 mm)

• Measurements & General:

• In-feed Speed (X-Axis):

  61 FPM (18.5 meters/min), max

• Maximum X Direction Stroke:

  50" (1270 mm)

• Y Axis Travel:

  12" (300 mm)

• Z Axis Travel:

  5" (127 mm)

• Machine Pass Line:

  45" (1143 mm)

• In Feed Conveyor:

  26'

• Power Requirements:

  460V, 3 Phase

• Overall Dimensions:

  34' x 8' x 7'

• Overall Weight:

  9,000 lbs
