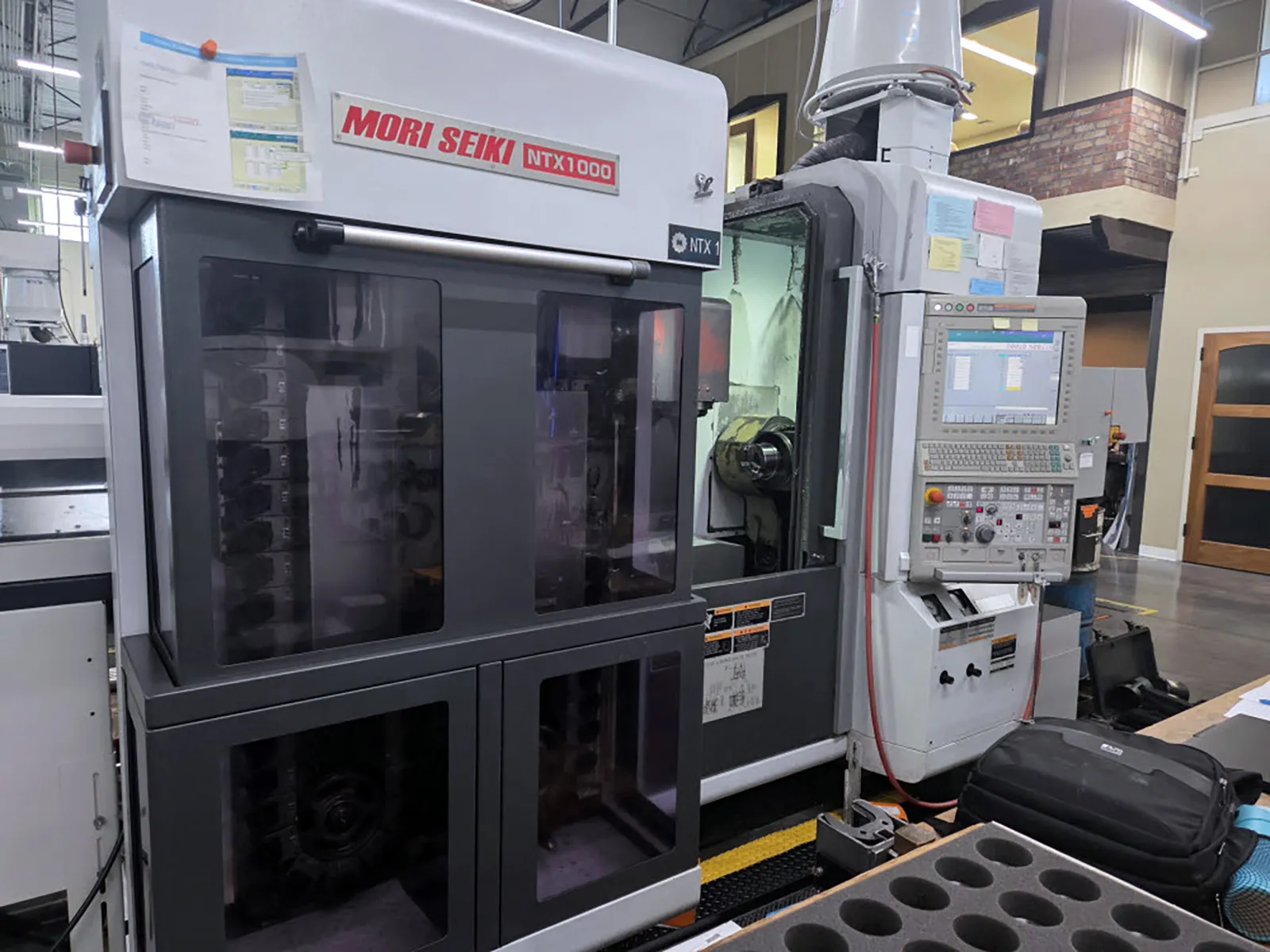

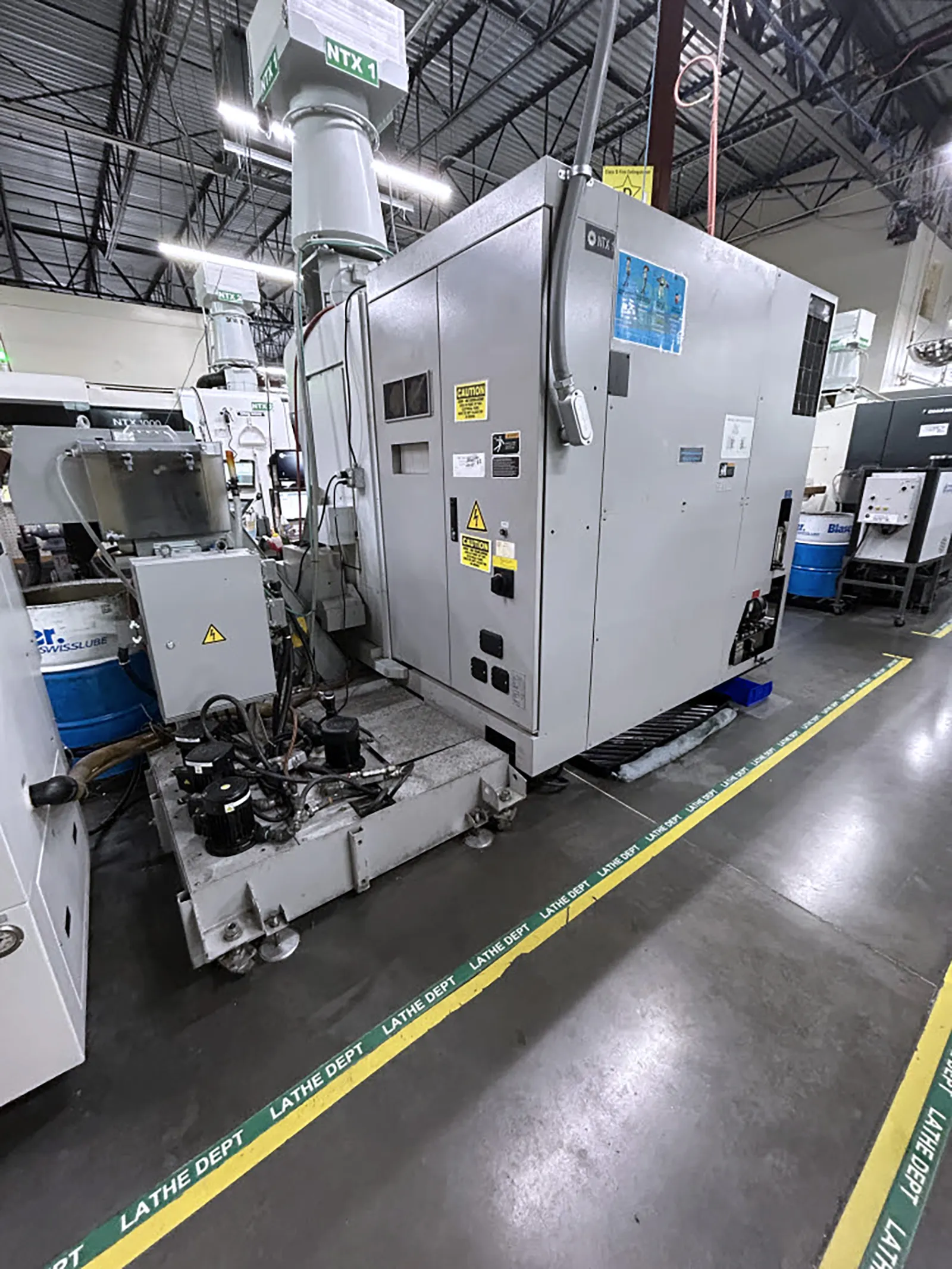

DMG Mori NTX 1000/SZM 2011

machine specifications

• SWING OVER WORKPIECE:

  14.5″

• Swing over cross slide:

  14.5"

• Max Turning Diameter:

  14.5"

• Max Turning Length:

  16.6"

• Bar Feeder Capacity:

  2.0"-2.5"

• X-Axis Travel:

  15"

• Y-Axis Travel:

  4.1"

• Z-Axis Travel:

  18.1" + 6.1"

• B-Axis Travel:

  +120 Degrees

• X2 Axis:

  6.1″

• Z2 Axis:

  24″

• Spindle 1 Specifications:

• Spindle 1 - Spindle Speed:

  6,000 RPM

• Spindle 1 - Number Of Spindle Speed Ranges:

  2

• Spindle 1 - Spindle Nose:

  JIS A2-5 (JIS A2-6)

• Spindle 1 - Through Spindle Hole Diameter:

  2.4″ – 2.9″

• Spindle 1 - Spindle Indexing Increment (Degree):

  0.0001 Degree

• Spindle 1 - Spindle Indexing Increment:

  3.9″ – 4.3″

• Spindle 2 Specifications:

• Spindle 2 - Spindle Speed:

  6,000 RPM

• Spindle 2 - Number Of Spindle Speed Ranges:

  1

• Spindle 2 - Spindle Nose:

  3.1″ G6 Flat Nose

• Spindle 2 - Through Spindle Hole Diameter:

  1.5"

• Spindle 2 - Spindle Indexing Increment (Degree):

  0.0001 Degree

• Turret Tool Positions:

  10 Positions w/Milling

• Turret Rotary Tool Spindle Speed:

  12,000 RPM

• Style of Tooling:

  Capto C5
