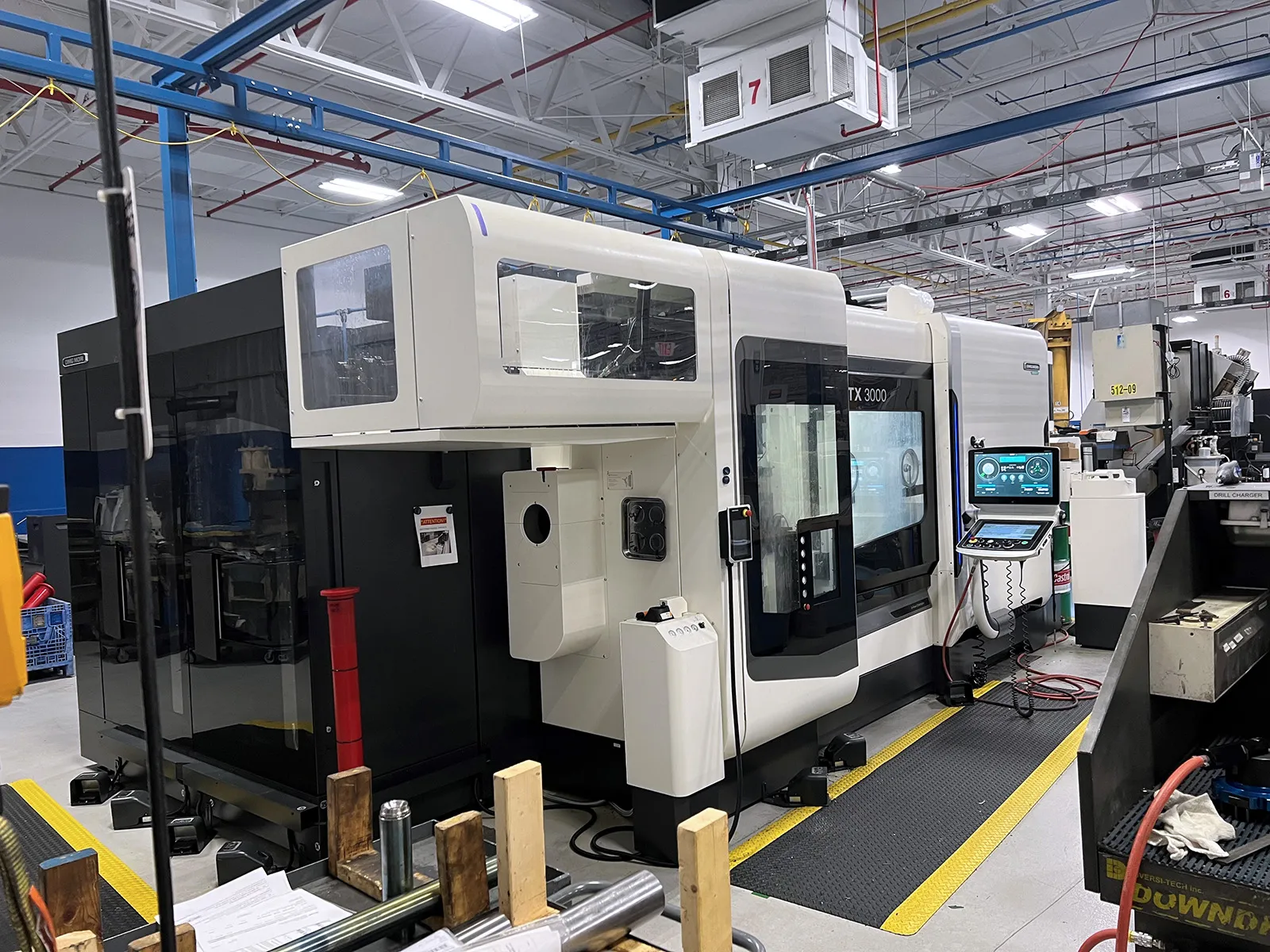

DMG Mori NTX 3000/1500 2022

machine specifications

• Max Turning Diameter:

  (26.3”)

• Max Turning Length:

  61"

• Swing over cross slide:

  (27.6”)

• Bar Capacity Main Spindle:

  (4.0”)

• Bar Capacity Sub Spindle:

  (3.1”)

• X Axis:

  (26.5”)

• Y-Axis:

  (± 5.9”)

• Z axis:

  60"

• B-Axis:

  240° (±120°)

• Main Spindle Chuck Size :

  12”

• MAIN SPINDLE Max Speed:

  3,000 RPM

• Main Spindle Power:

  (48 HP)

• sub spindle chuck size:

  8”

• Sub spindle Max Speed:

  4,000 RPM

• Sub Spindle Power:

  (35 HP)

• Milling Spindle Taper:

  Capto C6

• Milling Spindle Max speed:

  12,000 RPM

• Indexing accuracy:

  0.0001°

• Tool Changer Capacity:

  246 Tools

• Lower Turret:

  Static

• Lower Turret Positions:

  12 positions

• Read more
