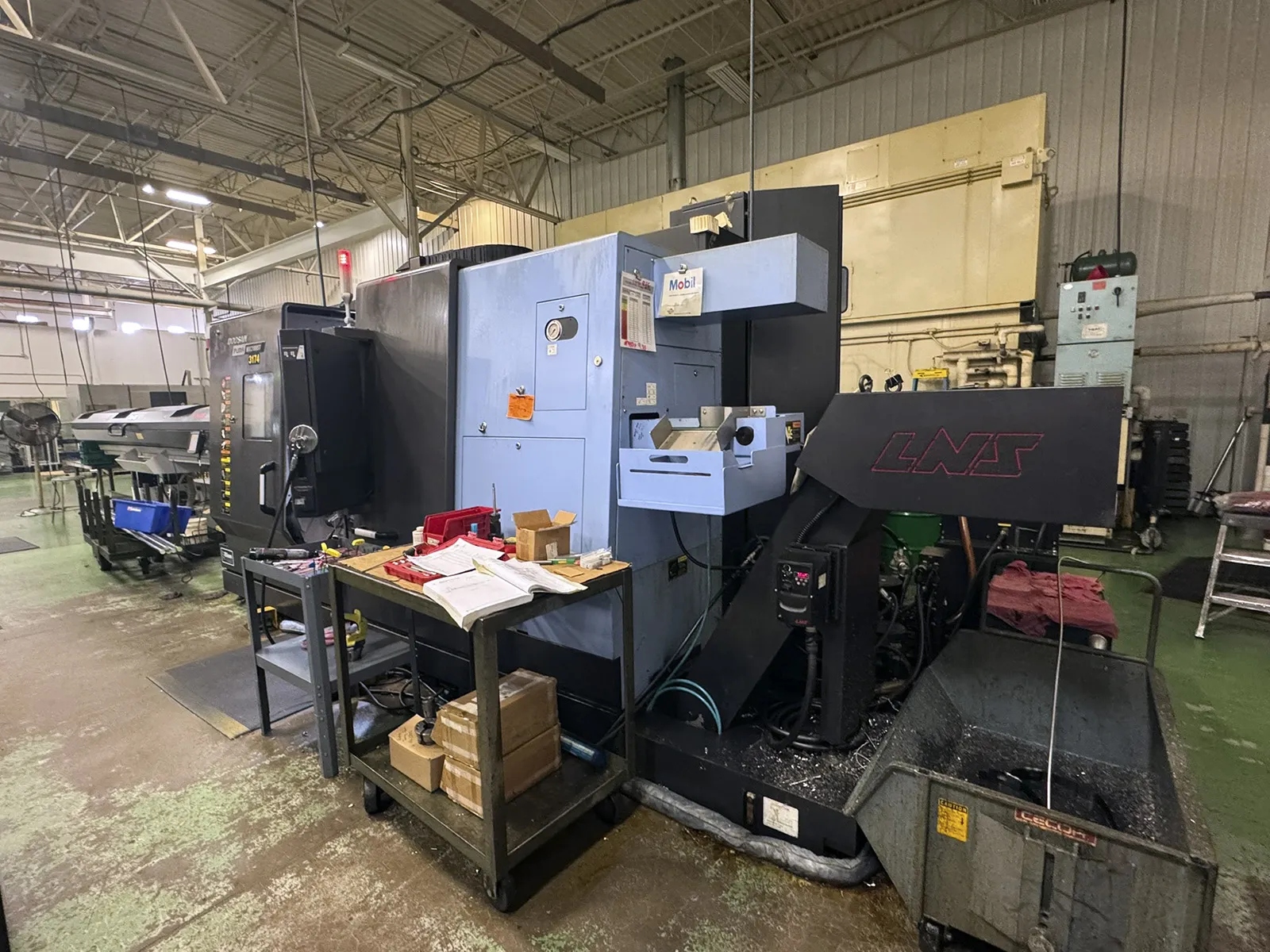

Doosan Puma MX2100ST 2020

machine specifications

• Travel Distance Z1-axis:

  (41.3 in.)

• Swing over Bed:

  29.5"

• Max Machining Diameter:

  21.3"

• Max Turning Length:

  40.2"

• Travel Distance X1-axis:

  (22.2 in.)

• Travel Distance X2-axis:

  (7.4 in.)

• Travel Distance Z2-axis:

  (41.3 in.)

• Travel Distance Y-axis:

  1(6.7in.)

• Travel Distance B-axis:

  ±120°

• Rapid Traverse X-Axis:

  (1417 in/min)

• Rapid Traverse Z-Axis:

  (1417 in/min)

• Rapid Traverse Y-Axis:

  (1024 in/min)

• Main Spindle Through Hole Diameter:

  (Left Spindle) 3"

• Main Spindle Chuck Size :

  8"

• Main Spindle Speed:

  5000RPM

• Main Spindle Nose:

  A2-6

• Main Spindle Power:

  30HP

• sub spindle chuck size:

  6"

• Sub Spindle Speed:

  5000RPM

• Sub Spindle Nose:

  A2-6

• Milling Spindle Speed:

  12,000 rpm

• B-Axis Indexing:

  0.001 deg

• Milling Spindle Power:

  (25 Hp)

• Milling Spindle Taper Capto:

  C6

• TOOLING Changer Capacity:

  40

• Lower Turret Positions:

  12 nos

• Rotary Tool Speed:

  5,000 rpm

• Rotary Tool Power:

  (7.5 Hp)

• Machine Size:

• Length:

  (191 in.)

• Height:

  (110.5 in.)

• Width:

  (99.5 in.)

• Machine Weight:

  (26,455 lbs)
