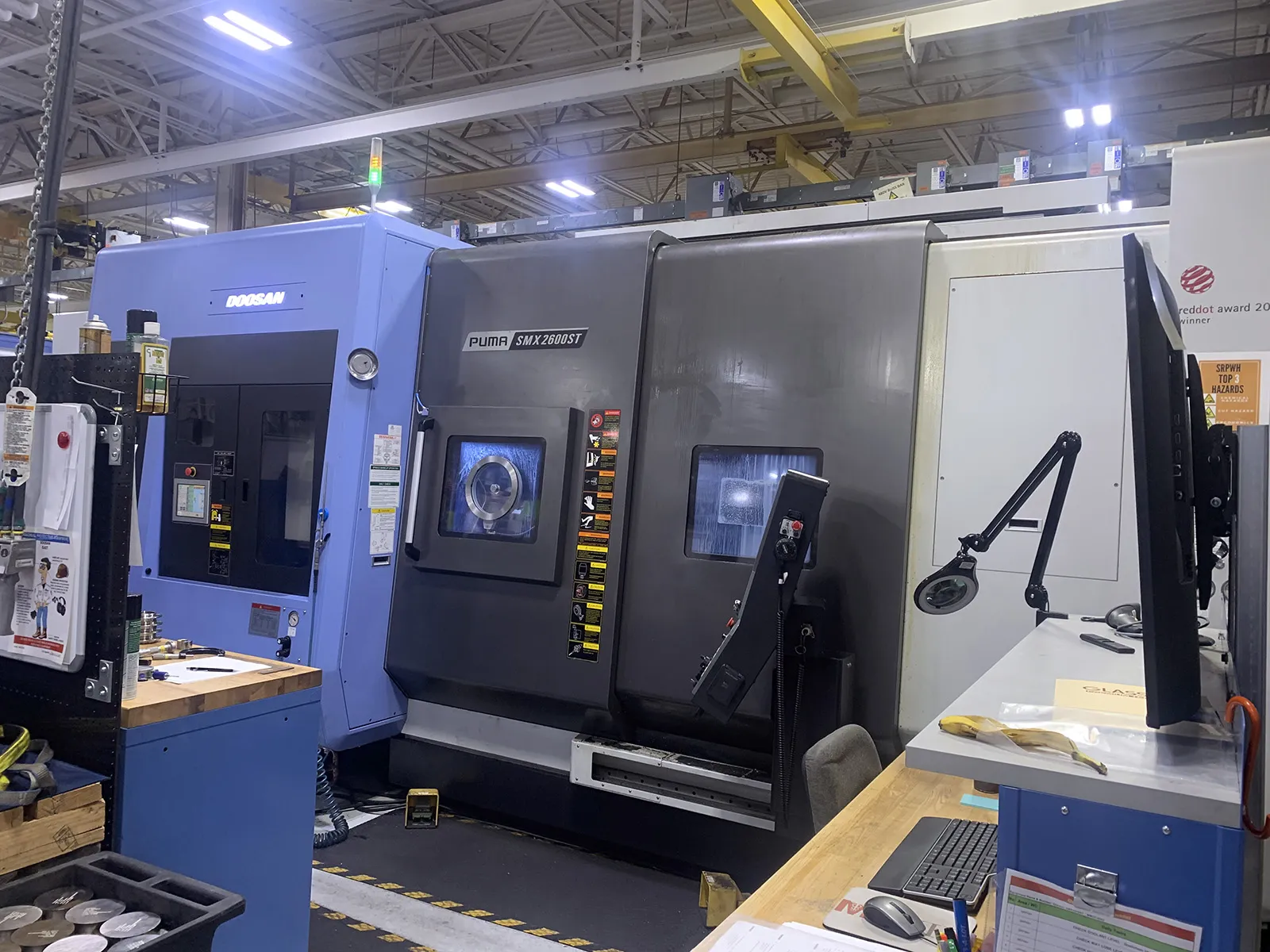

Doosan Puma SMX 2600ST 2019

machine specifications

• Swing over Bed:

  (26.0")

• Turning Diameter:

  (10.0")

• Max. Turning Diameter:

  (26.0")

• Max. turning length mm:

  (inch) (60.6)

• Main Spindle Chuck:

  12"

• Sub Spindle:

  inch 12"

• Chuck work weight:

  (lb) (573.2)

• Bar Working Diameter:

  (inch) (3.2)

• X-axis:

  (inch) 27.4)

• Y-Axis:

  (inch) (±5.9))

• Z-axis:

  (inch) (62.4)

• A-Axis:

  (inch) 1540 (60.6)

• B-axis deg:

• C1-axis / C2-axis:

  deg 360 / 360

• X2-axis / Z2-axis:

  (inch) (9.3 / 60.6)

• Rapid Traverse Rate:

• X-axis m/min:

  (ipm) (1889.8)

• Y-axis m/min:

  (ipm) (1417.3)

• Z-axis m/min:

  (ipm) (1889.8)

• A-axis** m/min:

  (ipm) (1181.1)

• Spindle Speed:

  4000RPM

• Spindle Motor Power:

  (Hp) 40

• Spindle Nose:

  A2-8

• Spindle Bearing Diameter:

  (5.1)

• Spindle through Hole:

  (inch) 3.6

• Main Spindle Indexing Angle:

  (C1-axis) deg 0.0001

• Tool Storage Capacity:

  80 tools

• Spindle Taper:

  CAPTO C6

• Lower turret No. of tool:

  12

• Max. Rotary Tool Speed:

  5000 RPM
