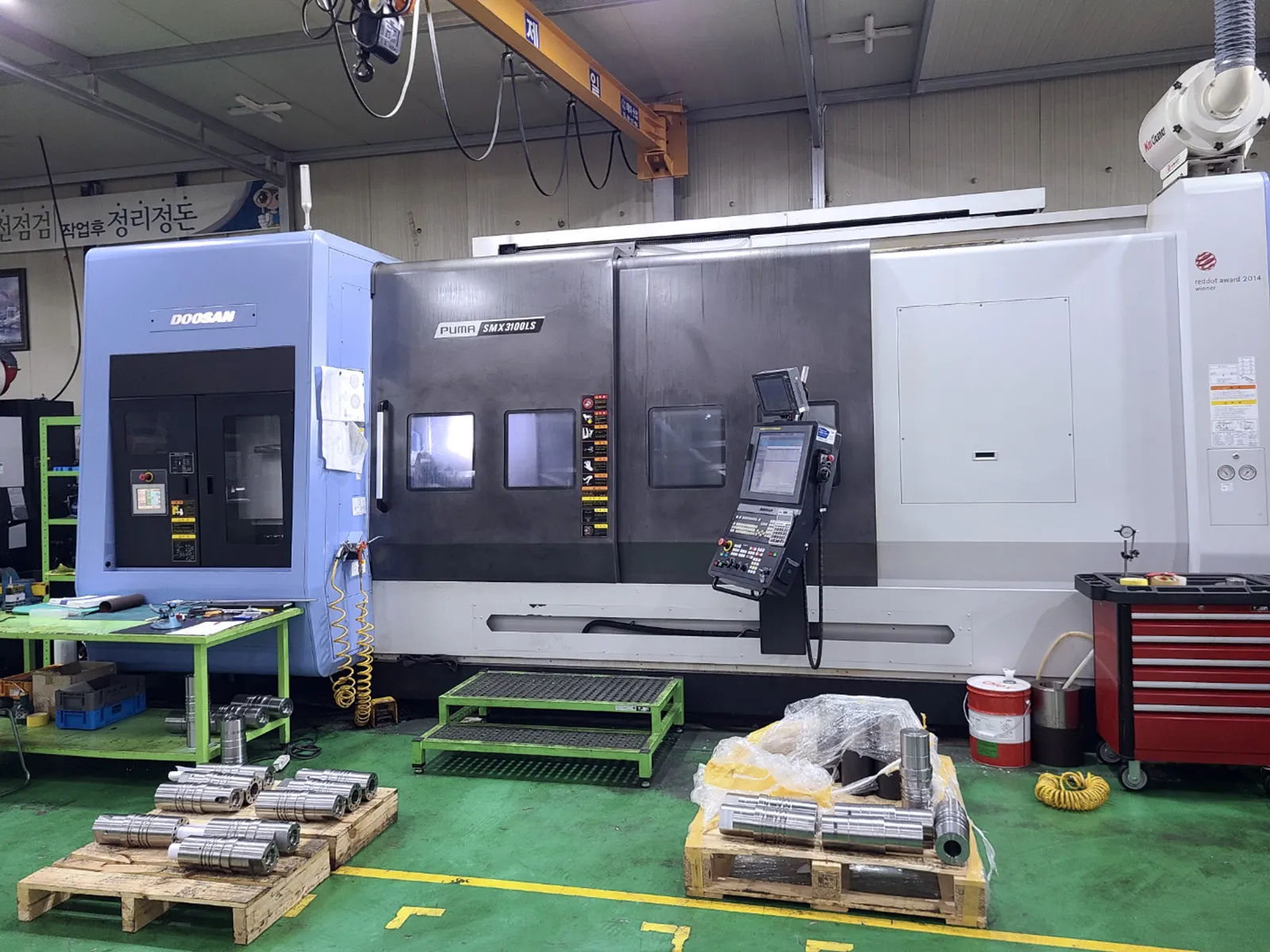

Doosan Puma SMX3100LS 2018

machine specifications

• Swing over Bed:

  26"

• Turning Diameter:

  26"

• Turning Length:

  100"

• Chuck Size 1:

  15"

• Bar Capacity 1:

  4"

• Spindle Speeds 1:

  2,500 RPM

• Chuck Size 2:

  12"

• Bar Capacity 2:

  3.6"

• Spindle Speeds 2:

  4,000 RPM

• B - Axis Head Indexing:

  0.0001

• B - Axis Milling Spindle Taper:

  Capto C6

• B - Axis Milling Spindle Speed:

  12,000 RPM

• B - Axis Milling Spindle Horse Power:

  35 hp

• ATC For Milling Spindle:

  80

• Tool Length:

  17.7"

• Tool Weight:

  26.5 lb

• X1 - Axis Travel:

  24.8"

• Z1 - Axis Travel:

  101.8"

• Y1 - Axis Travel:

  11.8"

• C - Axis Indexing 1:

  360

• W - Axis Travel Sub Spindle:

  98.4"

• Rapid Traverse Rate - X1:

  1889.8 ipm

• Rapid Traverse Rate - Z1:

  1181.1 ipm

• Rapid Traverse Rate - Y1:

  1417.3 ipm

• Machine Weight:

  45,195 lb

• Dimensions:

  252" x 118.5" x 112.2"
