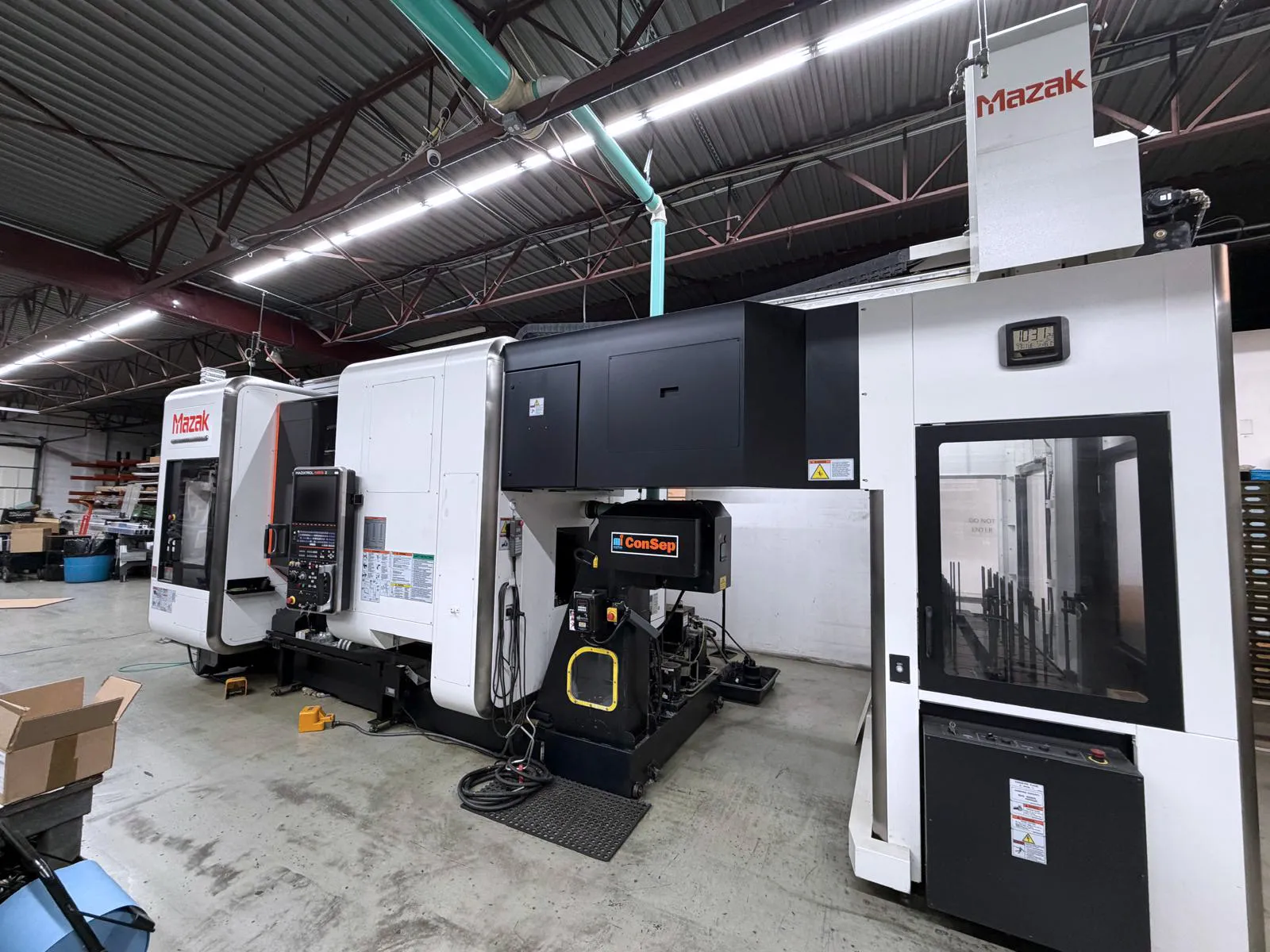

Mazak I-200S 2014

machine specifications

• Main & Sub-Spindle Chuck Size:

  8 in

• Maximum Machining Diameter:

  23.62 in

• Maximum Machining Length:

  33.46 in

• Main & Second Spindle Bar Capacity:

  2.56 in / 3.0 in

• X-Axis Travel (Cross):

  21.06 in

• Y-Axis Travel (Off-Center):

  8.27 in (+/-4.13 in)

• Z-Axis Travel (Longitudinal):

  33.46 in

• B-Axis Travel (Milling Head Swivel):

  -30 to +210 (Continuous 0.0001 indexing)

• C-Axis Travel (Both Spindles):

  360 (Continuous 0.0001 contouring)

• Main Spindle Speed:

  5,000 RPM

• Second Spindle Speed:

  5,000 RPM

• Main spindle motor power:

  30 HP

• Second Spindle Motor Power:

  25 HP

• Spindle Nose:

  A2-6

• Milling Speed:

  12,000 RPM

• Milling Motor Power:

  25 HP

• Tool Storage Capacity:

  36 tools
