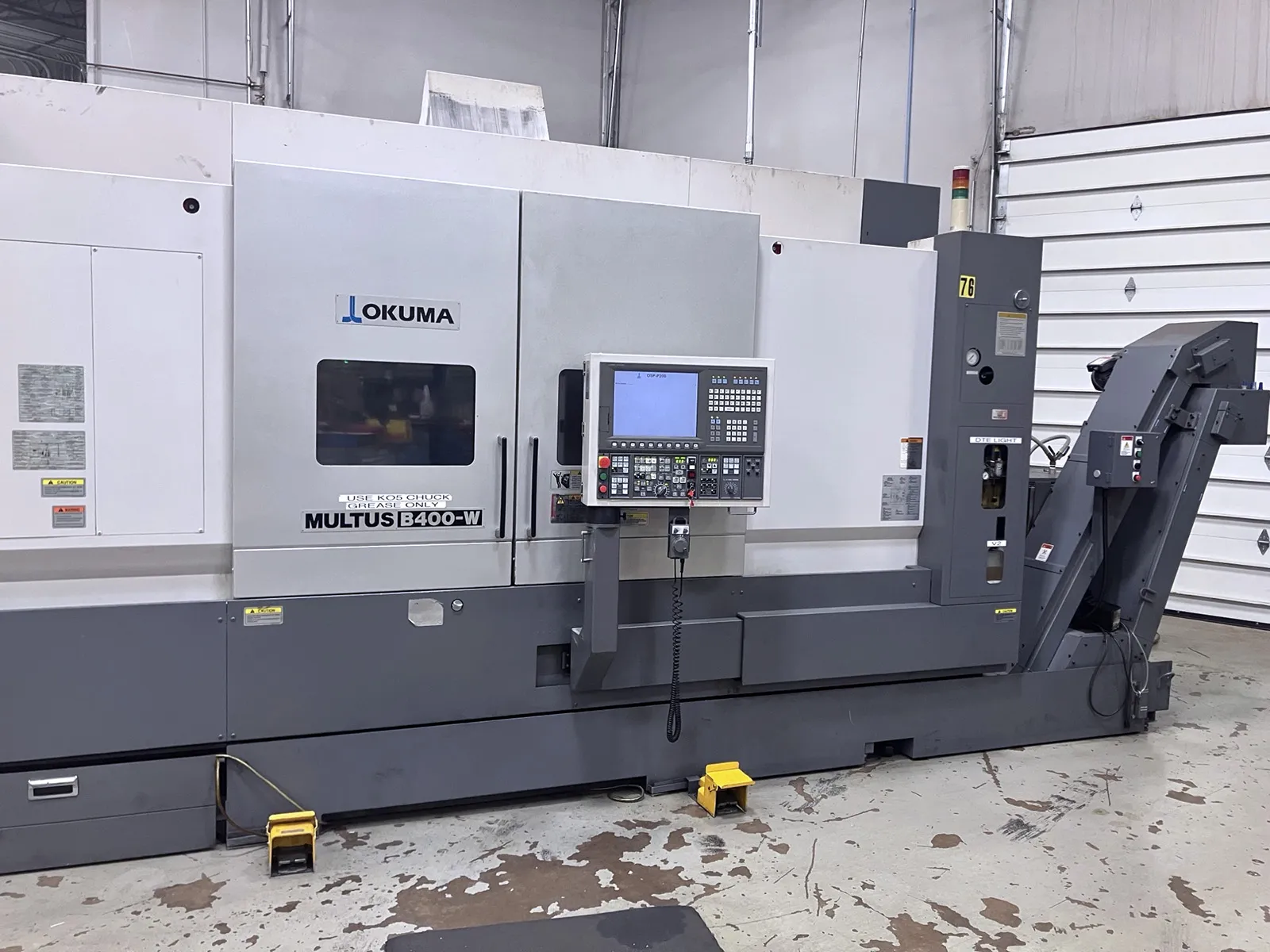

Okuma Multus B400-W 2010

machine specifications

• X-Axis Travel:

  27.17"

• Y-Axis Travel:

  9.06"

• Z-Axis Travel:

  60.51"

• W-Axis Travel:

  60.71"

• Swing over Bed:

  27.95"

• Max. Turning Diameter:

  27.95"

• Distance Between Spindles:

  59"

• Main Spindle Nose:

  A2-11

• Main Spindle Speed:

  2,800 RPM

• Main Bar Capacity:

  4"

• Main Chuck Size:

  15"

• sub spindle chuck size:

  10"

• Sub Spindle Speed:

  2,800 RPM

• C-Axis Index Increment:

  .001°

• B-Axis Index Angle:

  -30° to 195°

• B-Axis Index Increment Angle:

  .001°

• Rotary Tool Speed:

  6,000 RPM

• Spindle Taper:

  CAPTO C6

• ATC Magazine:

  40

• Main Spindle Drive Motor:

  30 HP

• Approx. Weight:

  37,200 LBS
