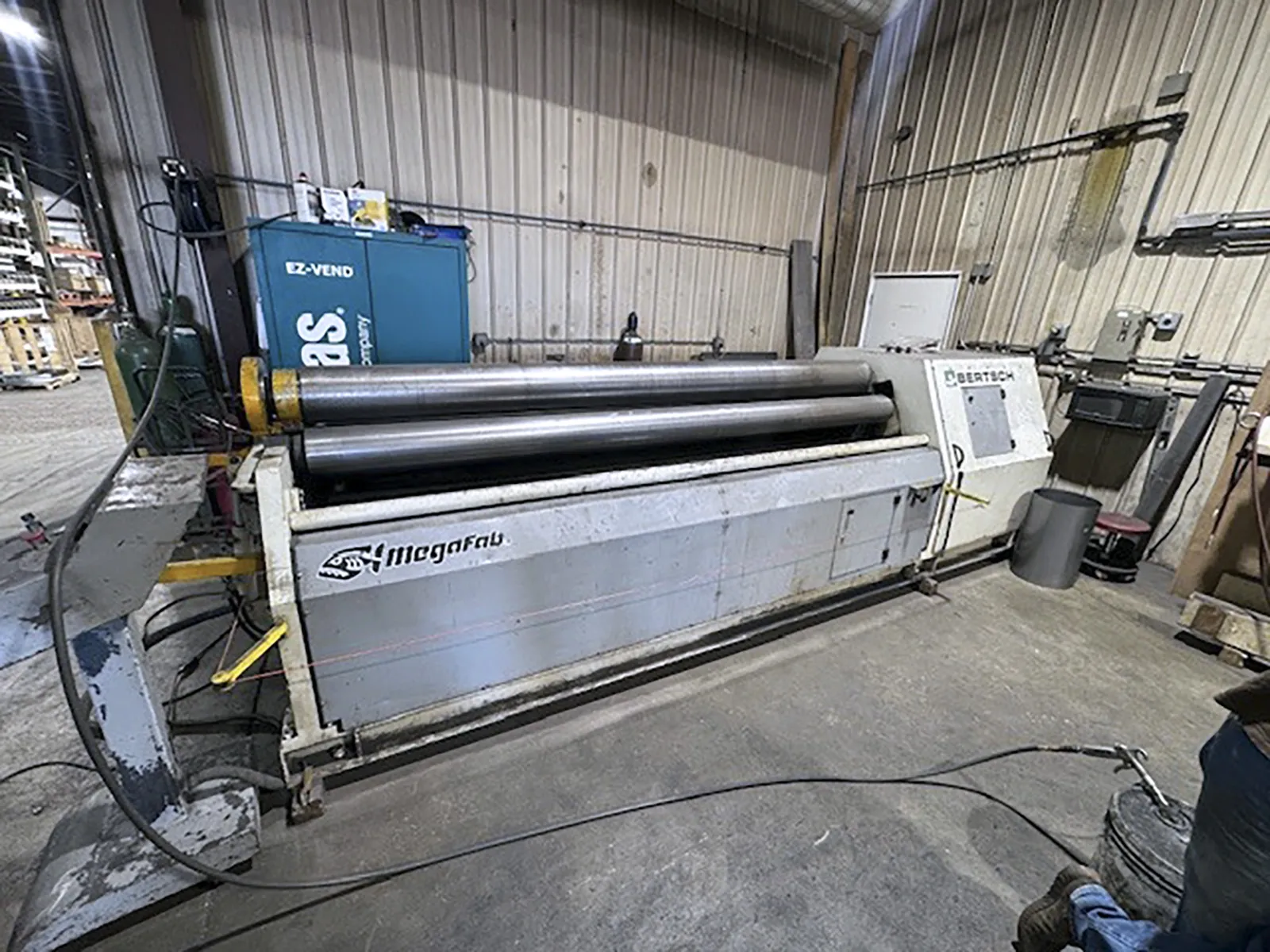

Bertsch 4R HMS 3100/220 2015

machine specifications

• Length of Rolls:

  122"

• Number of Rolls:

  4

• Top and Bottom Roll Diameter:

  8.66"

• Side (Lateral) Roll Diameter:

  7.09"

• Plate Yield Strength Basis::

  24 kg/mm² (≈ 235 MPa mild steel)

• Max Rolling Length:

  122.05"

• Max Material Thickness:

  5/16"

• Pre-Bending Capacity:

  1/4"

• Minimum Bending diameter::

• 13" for thin material:

• Up to 43" depending on thickness:

• Main Motor Power:

  5.5 kW

• Hydraulic Motor:

  1.5 kW

• Working speed:

  approx 5 m/min

• Powered Rolls:

  Top and Bottom

• Machine Dims:

  197" x 59" x 54"

• Weight:

  14000 lbs
