Chevalier Smart-B1640 III 2017

machine specification

• MAX. GRINDING WIDTH
• 16"

• MAX. GRINDING LENGTH
• 40"

• DISTANCE FROM TABLE SURFACE TO SPINDLE CENTER
• 24" Max

• MAX WORKPIECE WEIGHT
• 1,473 lbs

• TABLE SIZE
• 16" x 40"

• T-SLOT SIZE
• 0.55" x 3

• DISTANCE BETWEEN TABLE AND GROUND
• 38.3"

• LONGITUDINAL TRANSVERSE TRAVEL RAPID
• 0 - 65.6 FPM

• LONGITUDINAL TRANSVERSE TRAVEL MAX. TRAVEL
• 43"

• CROSS TRANSVERSE TRAVEL MAX. TRAVEL
• 17.7"

• CROSS TRANSVERSE TRAVEL RAPID
• 0 - 10 FPM

• CROSS TRANSVERSE TRAVEL LEAST INCREMENT INPUT
• 0.0001"

• WHEEL HEAD ELEVATION MAX. TRAVEL
• 17.7"

• WHEEL HEAD ELEVATION RAPID
• 0 - 10 FPM

• WHEEL HEAD ELEVATION LEAST INCREMENT INPUT
• 0.0001"

• SPINDLE SPEED
• 600 - 2500 RPM

• GRINDING WHEEL
• 14" x 2" x 5"

• POSITIONING ACCURACY
• 0.0002"

• REPEATABILITY
• Y&Z 0.00012" / X -0.00023"

• SPINDLE MOTOR
• 15 HP

• DIMENSIONS
• 129.6" x 100.8" x 82.3" H

• WEIGHT (APPROX.)
• 9,240 lbs

machine equipped with

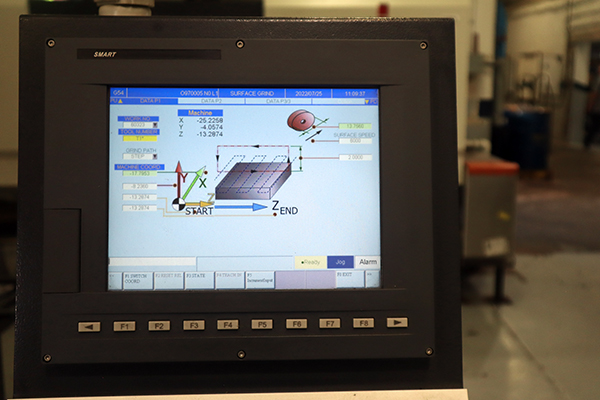

• CNC CONTROLLED SMART ICONTROL
• FULL ENCLOSURE
• AIR CONDITIONING UNIT ON ELECTRICAL CABIN
• COOLANT SYSTEM
• COOLANT FILTRATION SYSTEM
• 3 LIGHT SIGNAL
• REMOTE MPG
• USB DATA PORT
