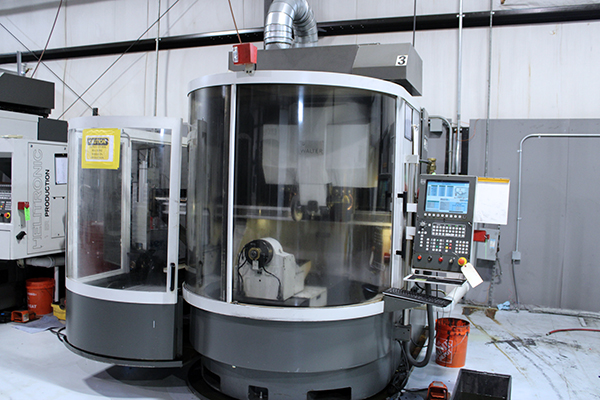

Walter "R" 500 WWM 2001

machine specifications

• X Axis Travel:

  460 mm

• Y Axis Travel:

  320 mm

• Z Axis Travel:

  660 mm

• Rapid traverse speed X, Y, Z max:

  15 m/min

• C axis:

  +/- 200 Deg

• A axis :

  Infinite

• Linear resolution :

  0.0001 mm

• Radial resolution:

  0.0001 Deg

• Max. grinding wheel diameter :

  200 mm

• Grinding Spindle Speed:

  0 – 10,500 rpm

• Spindle ends:

  2

• Spindle ends:

  NCT

• Peak power :

  11.5 kW

• Spindle Diameter:

  80 mm

• Max. grinding wheel diameter :

  200 mm

• Grinding Spindle Speed:

  0 – 7,000 rpm

• Min. tool diameter:

  3 mm

• Max. Tool Diameter:

  320 mm

• Max. Tool Diameter:

  with automated work table

• Max. workpiece length, peripheral grinding:

  350 mm

• Max. workpiece length, end face grinding:

  280 mm

• Max. Workpiece Weight:

  50 kg
