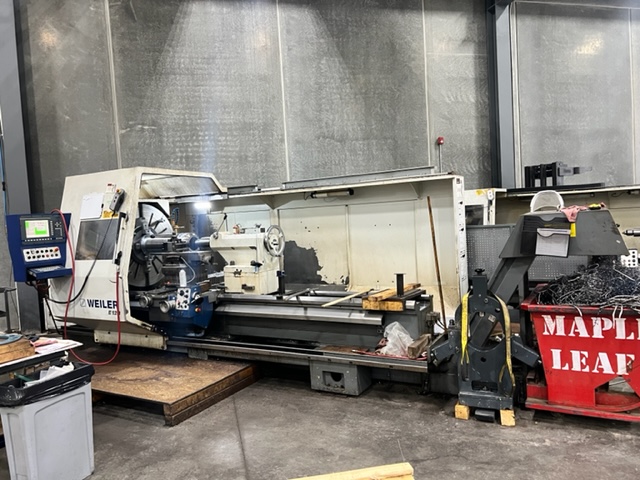

Weiler E120 2007

machine specifications

• Working Range:

  ---

• Swing over Bed:

  47.24"

• Swing over cross slide:

  32.67"

• Distance Between Center:

  3 meters - 118"

• Spindle Nose:

  size 11

• LATHE SPINDLE:

  ---

• Spindle Bore:

  5.039"

• Spindle diameter front bearing:

  7"

• Main drive:

  ---

• Drive power:

  60% / 100% duty cycle 45/37 kW

• Speed Range:

  1 - 1.120 rpm

• Number of Speed Ranges:

  stepless

• Feed Range:

  ---

• Longitudinal Feed Range:

  20.000 N

• Thread cutting range:

  ----

• Inch Threads:

  112- 1/64 TPI

• Feed force transverse:

  20.000 n

• Metric Threads:

  0,1 - 2.000 rpm

• Max. Feed range longitudinal and transverse:

  10/5M/MIN

• Tailstock:

  ---

• Quill Diameter:

  5.5"

• Quill Travel:

  11.8

• Quill taper:

  MK 6
