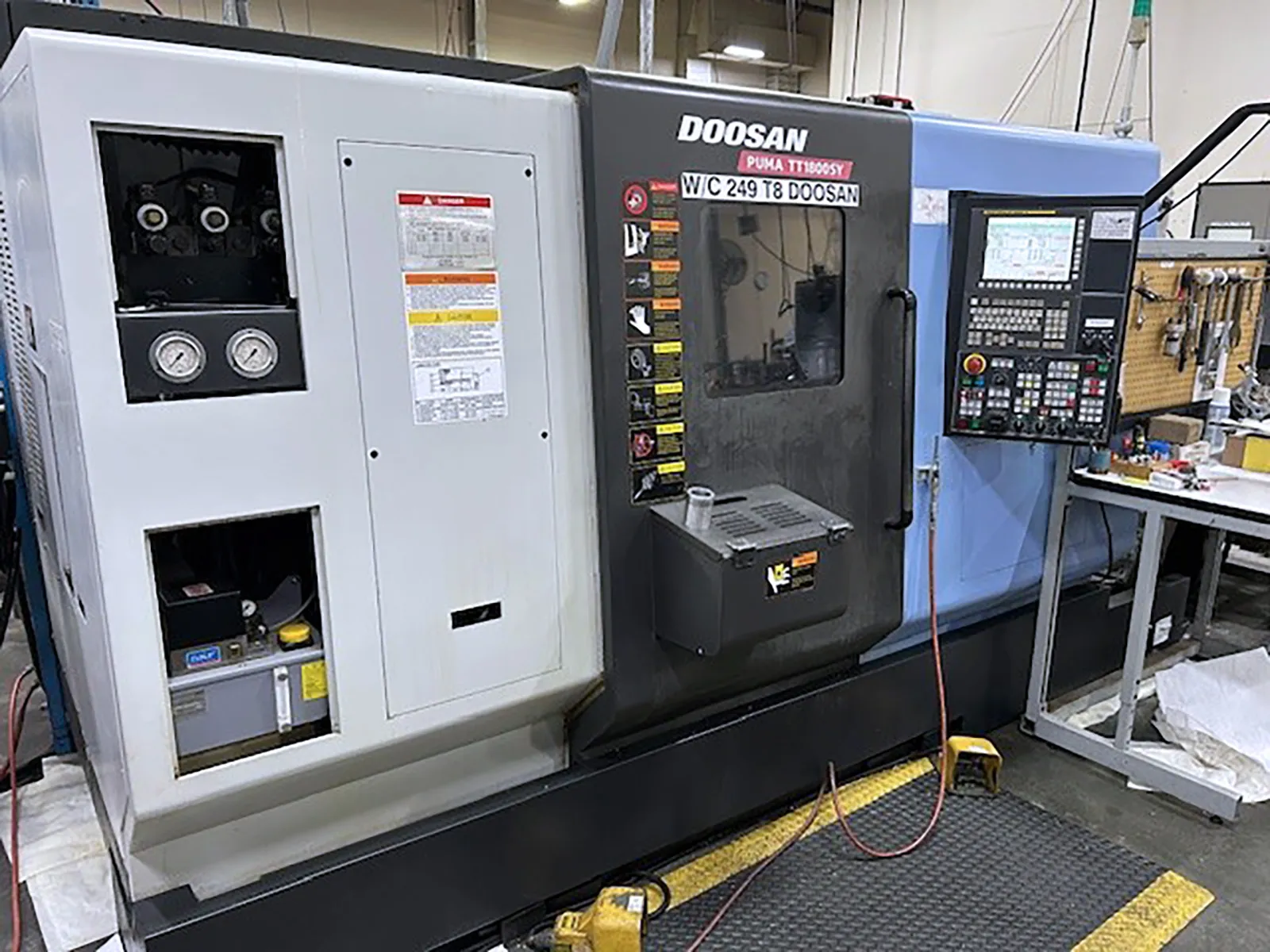

Doosan TT1800SY 2013

machine specifications

• Bar Capacity:

  2.625"

• Chuck Size:

  8"

• Spindle Speed:

  5,000 RPM

• Spindle Motor:

  30 HP

• X Axis Travel:

  6.5"

• Z Axis Travel:

  31.5"

• Rapid Rate Z Axis:

  944 IPM

• Rapid Rate X Axis:

  787 IPM

• Max Turning Dia:

  9.1"

• Max Turning Length:

  9.1"

• Max Swing:

  9.1"

• Turret:

• Turret Configuration (Upper + Lower):

  24 + 24 (48 Total Stations)

• O.D Tool Size:

  0.8" x 0.8"

• Maximum I.D. Tool Size:

  1.3"

• Turret Indexing Time:

  0.15 Seconds

• Maximum Rotary Tool Speed:

  5,000 RPM

• SUB & MAIN SPINDLE:

• Spindle Speed.:

  5000 RPM

• Spindle Motor (30 min / Cont):

  29.5 HP / 20.1 HP

• Maximum Spindle Torque:

  153.5 Ft-Lbs

• Spindle Nose:

  A2 #6

• Spindle Bearing Diameter:

  4.3"

• Spindle Inner Diameter:

  3.0"

• C-Axis Indexing:

  360° in .001° increments

• Weight:

  17,196 LBS
