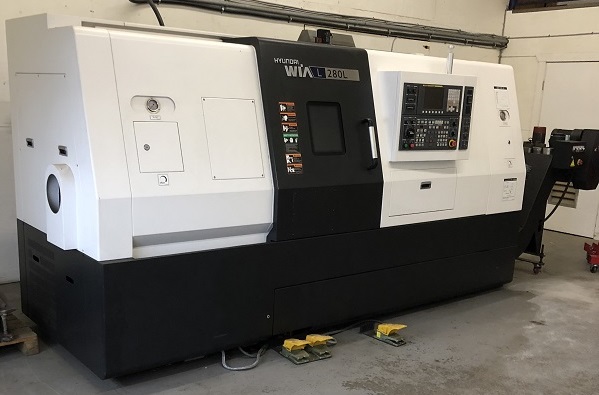

Hyundai WIA L280L 2013

machine specification

• SWING
• 23.2"

• SWING OVER CROSS SLIDE
• 14.8"

• MAX MACHINING DIAMETER
• 16.1"

• DISTANCE BETWEEN CENTERS
• 42.1"

• SPINDLE SPEEDS
• 0 - 3,000 RPM

• MAIN MOTOR
• 25/30 hp

• SPINDLE BORE
• 3.54?

• NUMBER OF POSITIONS
• 10

• X- AXIS TRAVEL
• 8.7"

• Z-AXIS TRAVEL
• 43.5"

• QUILL TRAVEL
• 4.7"

• QUILL DIAMETER
• 3.9"

• TAPER
• 5 MT

• BODY TRAVEL
• 36.2"

• RAPIDS ON X-AXIS
• 787 IPM

• RAPIDS ON Z-AXIS
• 945 IPM

• CHUCK SIZE
• 15" Hyd. Chuck

• CHUCK HOLE THRU
• 3"

• CHUCK - NUMBER OF JAWS
• 3

machine equipped with

• FANUC 0I-TD CNC CONTROL
• AUTOMATIC TOOL SETTER
• STANDARD TOOLING PACKAGE
• TAILSTOCK
• CHIP CONVEYOR
• COOLANT SYSTEM
• 10" 3-JAW HYDRAULIC CHUCK WITH 3" BAR CAPACITY

machine description

This used 2013 Hyundai Wia CNC Lathe features an Automatic Tool Setter, a Standard Tooling Package, a chip conveyor, a tailstock, and a 10" 3 Jaw Hydraulic Chuck with 3" bar capacity.
