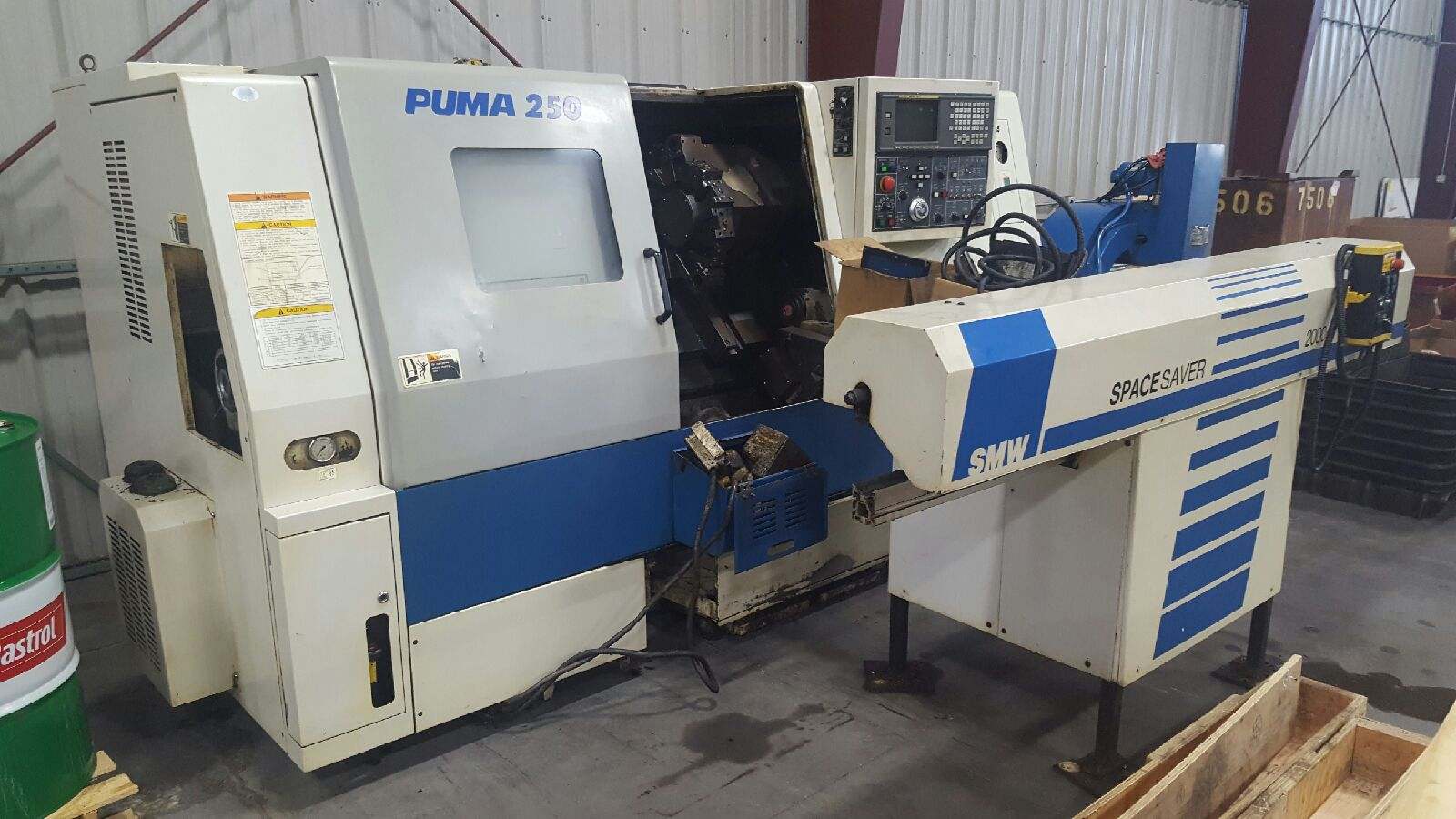

Daewoo Puma 250 1998

machine specifications

• Wire Traveling Speed:

  22

• Chuck Size (Inches):

  8"

• Y - Axis Travel (inches):

  15.7" / 400mm

• Spindle Taper (CAT/BT):

  HSK-463

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Tool Changer Type:

  60 ATC

• Throat Depth:

  9.45"

• Resonator ( Type ):

  55

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• X - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Speed:

  12,000 RPM

• Spindle Bore Diameter:

  3.54"

• Spindle Nose Taper:

  A2-8

• Max Swing (inches):

  17.32"

• Swing Over Saddle:

  14.57"

• Maximum Machining Diameter:

  15.75"

• Maximum Work Length:

  25.6"

• Recommended Machining Diameter:

  10"

• Draw Tube Diamete:

  3.03"

• Cutting Feed Rates, X, Z:

  787, 944 IPM

• Rapid Traverse Rate, X, Z:

  1968 IPM

• Number of Positions on Turret:

  10

• Tool Indexing Time:

  .2 seconds

• Tailstock Quill Diameter:

  3.94"

• Quill Bore Taper:

  #5 MT

• Quill Travel:

  3.94"
