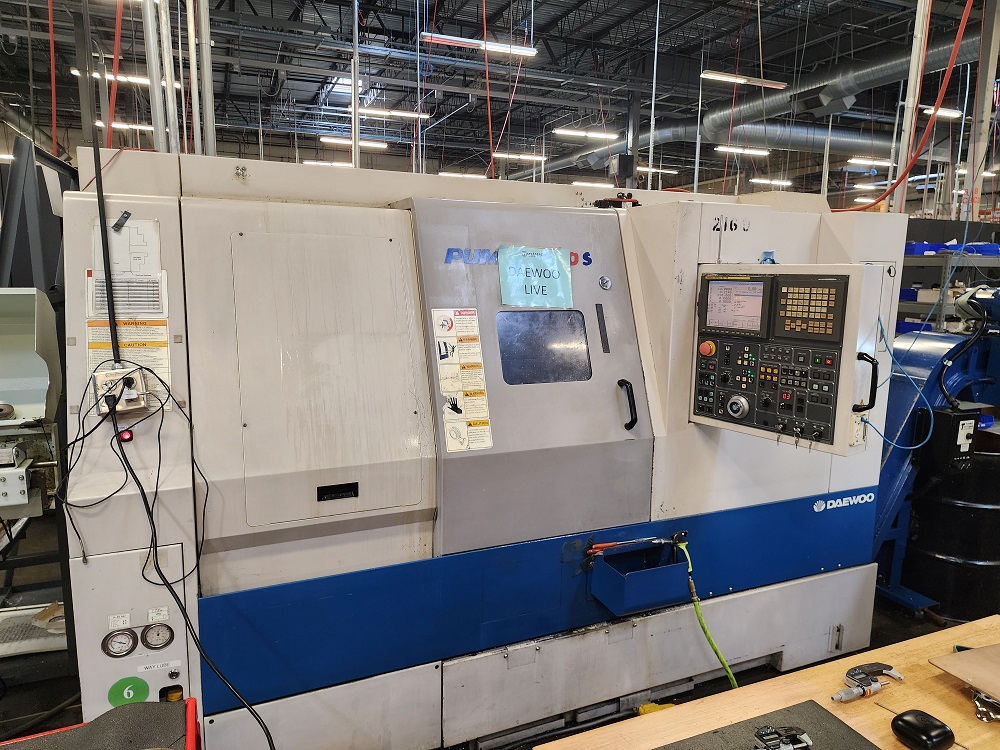

Daewoo Puma 2500SY 2003

machine specifications

• Chuck Size:

  10"

• Max Diameter Bar Capacity:

  3"

• MAX SWING OVER BED/CARRIAGE/COVER:

  23.6" / 21.6"

• Max Turning Diameter:

  13"

• Max Machining Length:

  19.6"

• Spindle Speed:

  35 - 3500RPM

• Spindle Bore:

  3.54"

• Spindle Nose:

  A2-8

• Spindle Motor:

  30 HP

• Tools:

  12

• Milling Motor:

  5 HP

• Milling Speed:

  6000 RPM

• Rapid Traverse Rate (X,Z):

  790/945 IPM

• Sub Spindle Chuck Size: :

  6.5"

• X Axis Travel:

  9.8"

• Sub Spindle Motor::

  10/ 7.4 HP

• Z Axis Travel:

  22.8"

• Sub Spindle Speed:

  6000 RPM

• C axis index:

  0.0001 Degrees

• Sub Spindle Bar Capacity:

  1.375"

• Y Axis Travel:

  +/-2"

• Turret Index (Single Step):

  0.1 Seconds

• Machine Dimensions (L x W x H):

  123" x 67.1" x 81.7"

• Machine Weight:

  10810 lbs
