Daewoo Puma 800L 2004

24" 4-Jaw Chuck, 12.5" Spindle Bore, 12 Station Turret, Tailstock, Steadyrest, Fanuc CNC Control,

  • Make: Daewoo

  • Model: Puma 800L

  • Year: 2004

  • Control: - Fanuc

  • Type: CNC Lathe

  • Reference: 3648739

Get Quote Make Offer Contact Us Sell Your Daewoo
  • Maximum Swing 40.55"
  • Machine Dimensions 290" x 109" x 102"
  • Machine Weight 47,400 lbs
  • Swing Over Carriage 31.49"
  • Maximum Cutting Diameter 35.43"
  • Maximum Cutting Length 125.98"
  • X-Axis Travel 18.50"
  • Z-Axis Travel 127"
  • Spindle Motor Power 60 HP
  • Spindle Nose A1-20
  • Spindle Bore 12.5"
  • Bar Capacity 12.20"
  • Chuck Size 24"
  • Spindle Speed 750 RPM
  • Rapid Feedrates (X,Z) (472,629) IPM
  • Turret Positions 12 Station
  • Tool Size 1.25"
  • Tailstock Quill Diameter 6.299"
  • Tailstock Quill Stroke 7.87"
  • Tailstock Taper MT #6

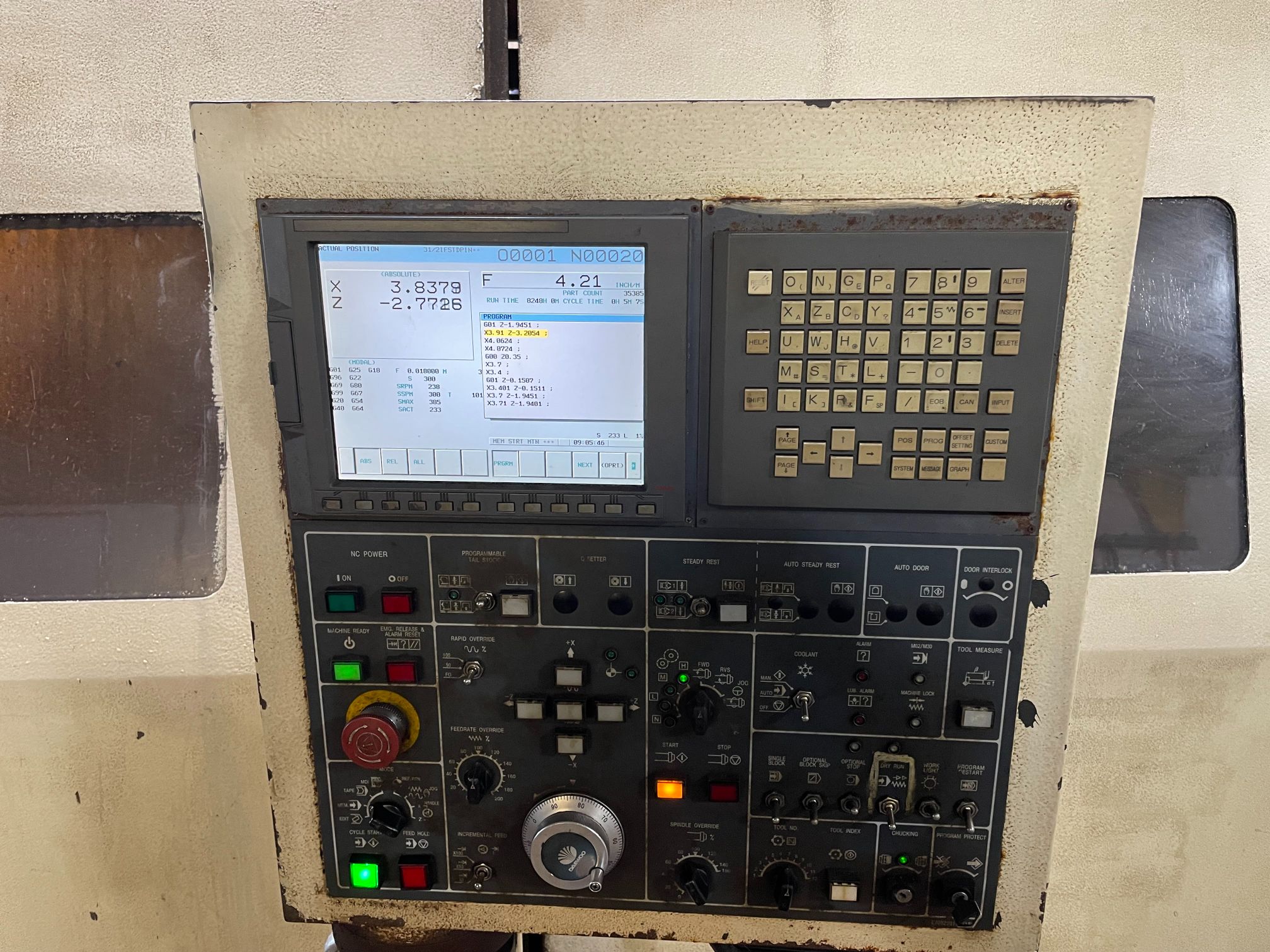

  • Fanuc CNC Control
  • 24" 4-Jaw Chuck
  • 12.5" Spindle Bore
  • 12 Station Turret
  • Tailstock
  • Steadyrest
  • Chip Conveyor
  • Rear Chuck

Used Daewoo Puma 800L. This pre-owned CNC Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Daewoo CNC Lathe we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
