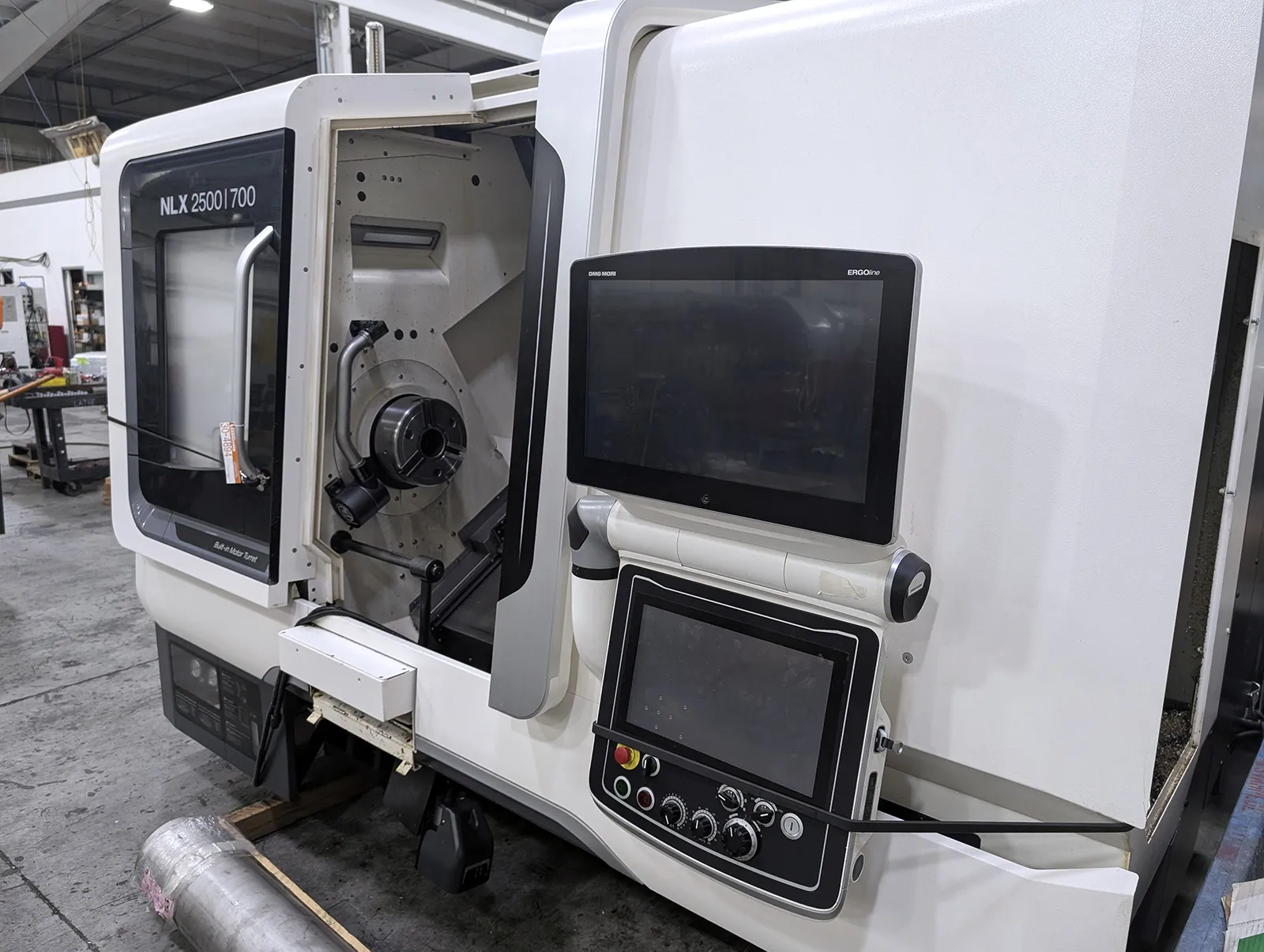

DMG Mori NLX 2500SY/700 2022

machine specifications

• Swing over Bed:

  36.2"

• Swing over cross slide:

  29.2"

• Max Turning Diameter:

  14.4"

• Max Turning Length:

  27.7"

• Bar Capacity:

  3.15"

• Main Spindle Speed:

  4,000 RPM

• Main Spindle Nose:

  A2-8

• Main Spindle Bore:

  3.58"

• Sub Spindle Speed:

  5,000 RPM

• Sub Spindle Nose:

  A2-6

• Sub Spindle Bore:

  2.87"

• Axes Travel (X / Z / Y):

  10.2" / 31.3" / ±2.0"

• Rapid Traverse Rate:

  1,181 IPM (X/Z)

• Turret:

  12-Station BMT

• Rotary Tool Speed:

  10,000 RPM

• Rotary Tool Torque:

  29.5 / 22.1 / 10.3 ft-lbs

• Chuck Size (Main):

  12" Kitagawa

• Chuck Size (Sub):

  8" Kitagawa

• Coolant Tank Capacity:

  96.6 Gallons`

• Machine Dimensions (L x W):

  131.8" x 82.9"

• Machine Weight:

  Approx. 13,500 lbs
