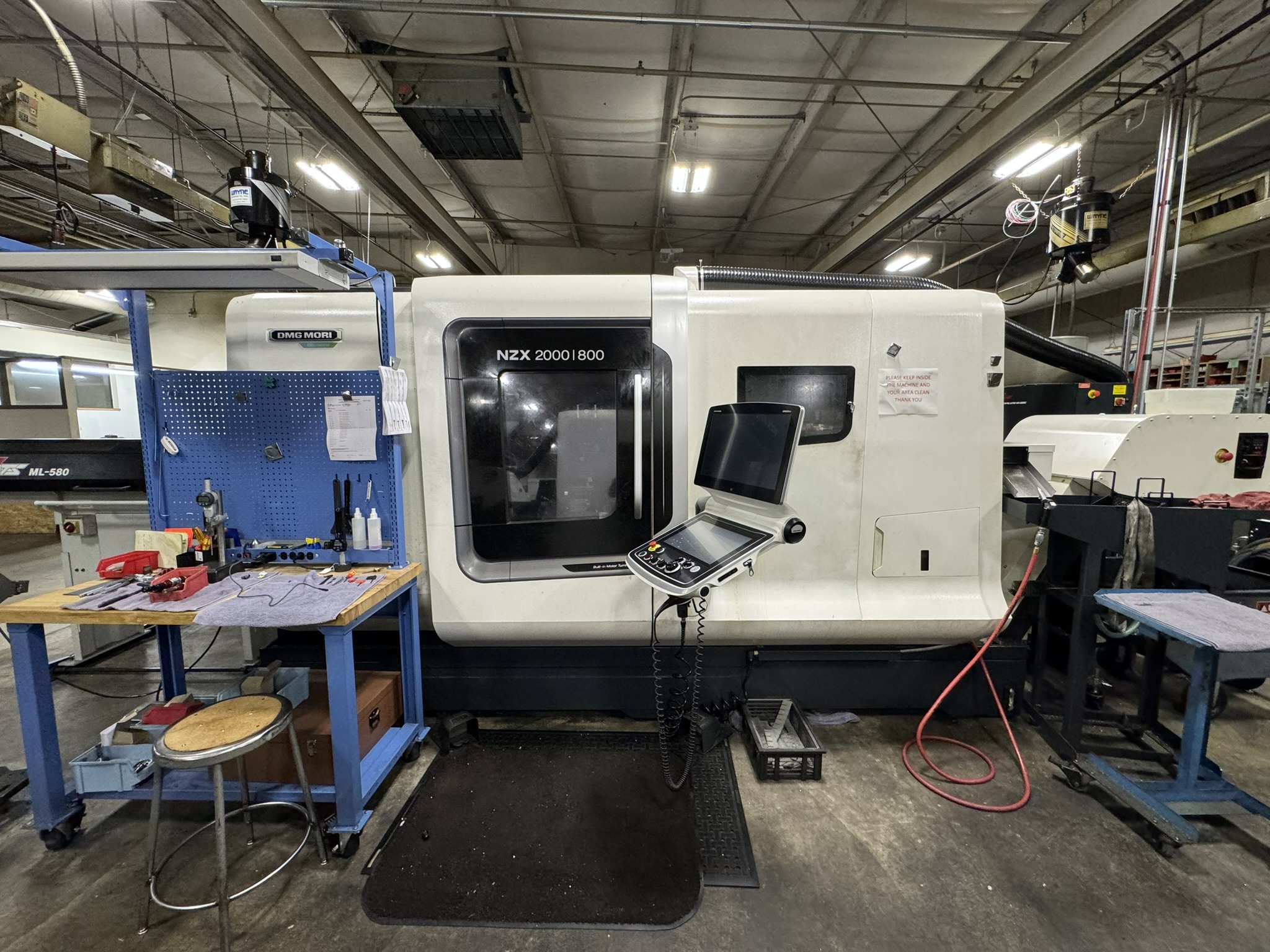

DMG Mori NZX 2000/800SY 2021

machine specifications

• Maximum Swing :

  31.5"

• Max Turning Diameter:

  12.5"

• Max Bar Capacity:

  3.1"

• Maximum Cutting Length:

  31.8"

• Distance Between Spindles:

  44.1"

• X Axis Travel:

  (X1, X2) 8.3"

• Z Axis Travel:

  (Z1, Z2) 31.9"

• Y Axis Travel:

  (Y1, Y2) 4.3"

• C Axis Indexing:

  (1, 2) .0001 deg

• W Axis Travel:

  34.3"

• Main Spindle Chuck:

  8"

• Main Spindle Bore:

  3.5"

• Main Spindle Max Bar Capacity :

  3.1"

• Main Spindle Speed:

  4,000 rpm

• Main Spindle Nose:

  A2-8

• Main Spindle Horsepower:

  30 HP

• Number of Turrets:

  2

• Sub Spindle/2nd Spindle Chuck Size:

  8"

• Approx. Weight:

  18,480 LBS

• Sub Spindle/2nd Spindle Bore Size:

  2.8"

• Sub Spindle Maximum Bar Work:

  2.5"

• Sub Spindle/2nd Spindle Speed:

  5,000 rpm

• Sub Spindle/2nd Spindle Horsepower :

  30 hp

• Turret Tool Positions 1, 2:

  16

• Turret Rotary Tool Spindle Speed 1, 2:

  12000

• Turret Rotary Tool Horse Power 1, 2:

  10HP

• Number of Available Live Tool Holders:

  4
