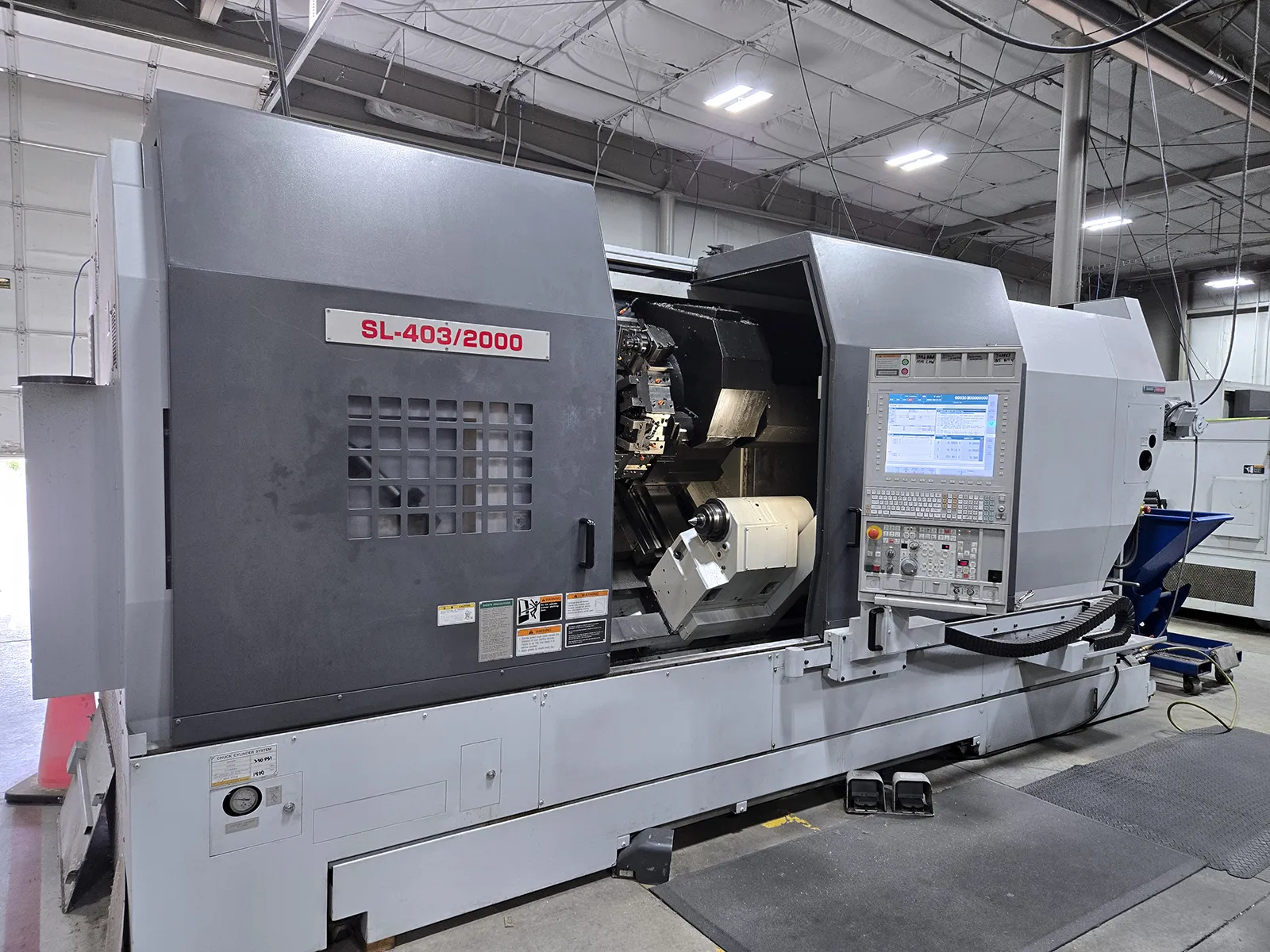

DMG Mori SL403BMC/2000 2014

machine specifications

• Swing over Bed:

  36.8"

• Swing over cross slide:

  29.1"

• DISTANCE BETWEEN CENTERS:

  91.5"

• Max Turning Diameter:

  24.0"

• Max Turning Length:

  84.9"

• X-Axis Travel:

  14.7"

• Z-Axis Travel:

  82.7"

• Max Spindle Speed:

  2400 RPM

• Number of Spindle Speed Ranges:

  2

• Type of Spindle Nose:

  JIS-A2-11

• THROUGH-SPINDLE HOLE DIAMETER:

  5.1"

• MIN SPINDLE INDEXING ANGLE:

  0.001°

• Number of Tool Stations:

  12

• Shank Height For Square Tool:

  1-1/4"

• Shank diameter for boring bar:

  2-1/2"

• Turret Indexing Time:

  0.4 SEC

• MAX ROTARY TOOL SPINDLE SPEED:

  3000 RPM

• RAPID TRAVERSE X/Z/C:

  787.4 / 944.9 / 56

• Tailstock Travel:

  78.7"

• Tailstock Spindle Diameter:

  5.9"

• Taper Hole of Tailstock Spindle:

  MT#5, BUILT-IN

• Spindle Drive Motor:

  50 HP

• Rotary Tool Spindle Drive Motor:

  12 HP

• Electrical power supply:

  52.3 KVA

• Coolant Tank Capacity:

  87.1 GAL

• Machine Dimensions:

  243" × 101" × 100" TALL

• Machine Weight:

  33,000 LBS
