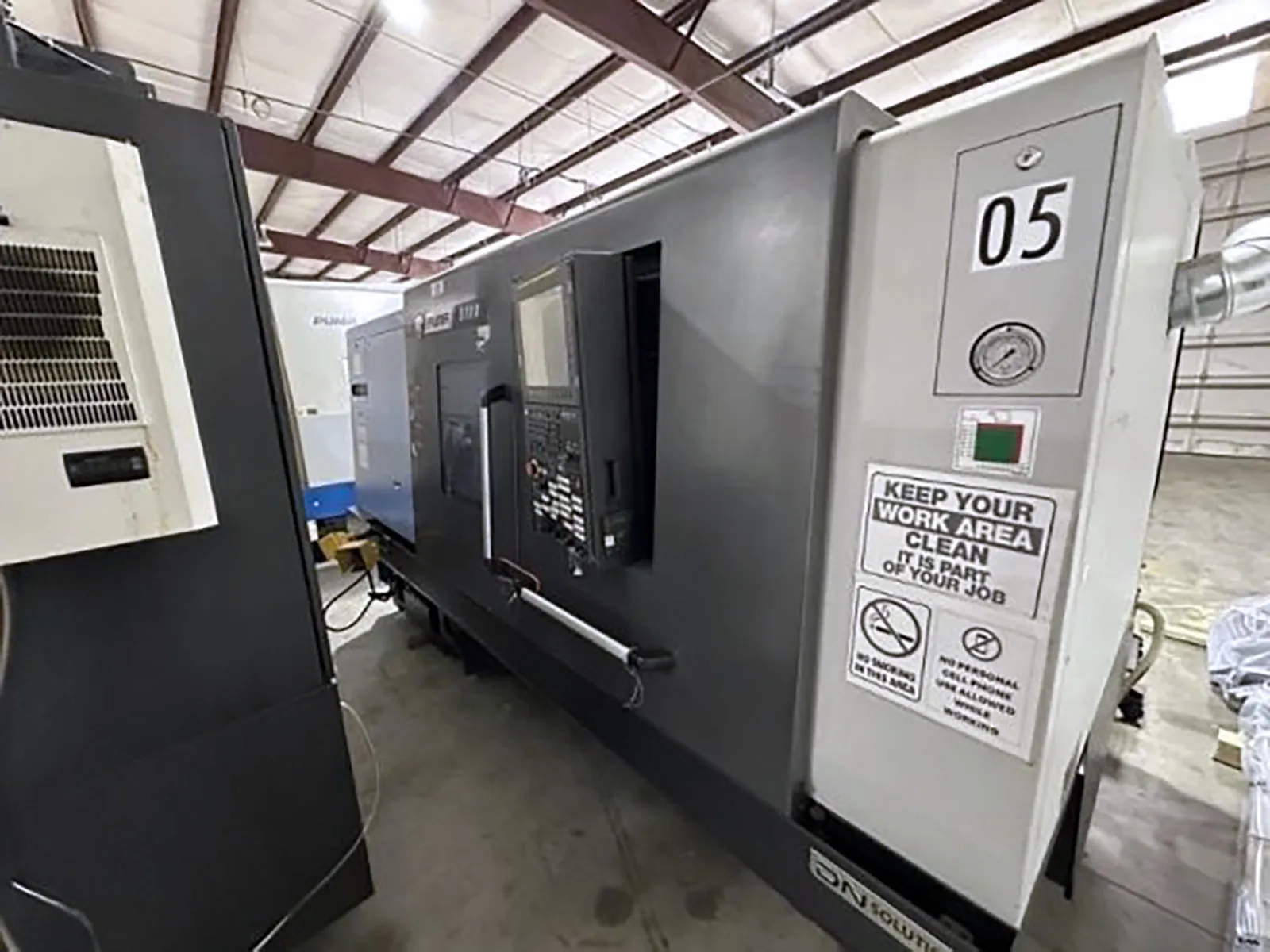

Doosan 5100B 2023

machine specifications

• Swing over Bed:

  35.4"

• Machining Length:

  44.4"

• DISTANCE BETWEEN CENTERS:

  46.4"

• Chuck Size 1:

  24"

• Spindle Nose 1:

  A1 - 15

• Spindle Bar Capacity 1:

  66.25"

• Turning Diameter, Shaft Diameter:

  27.2"

• Spindle Speeds 1:

  1,500 RPM

• Spindle Horsepower 1:

  60 hp

• Spindle Bore Diameter 1:

  7.12"

• X1 - Axis Travel:

  14.3"

• Z1 - Axis Travel:

  44.39"

• Rapid Traverse Rate - X1:

  630 in/min.

• Rapid Traverse Rate - Z1:

  790 in/min.

• Spindle Torque:

  2978

• Gear Ranges:

  2

• Turret Configuration 1:

  12

• Tailstock Quill Diameter:

  4.7"

• Tailstock Taper:

  MT 6

• Tailstock Quill Travel:

  4.7"

• Programmable Tailstock:

  YES

• # Axis:

  2

• Bar Capacity:

  6.6"

• Tailstock:

  Yes

• Live Tooling:

  No

• Sub Spindle:

  No

• Control:

  CNC (DOOSAN FANUC SERIES I CNC CONTROL)

• Weight:

  23,369
