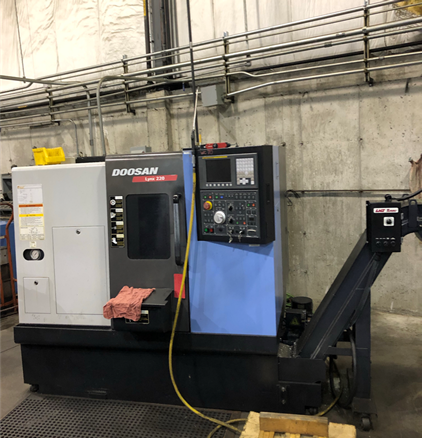

Doosan Lynx 220A 2007

machine specification

• BAR STOCK CAPACITY
• 2.0"

• TURRET CAPACITY
• 8 Positions

• TOOL CHANGER TYPE
• 60 ATC

• THROAT DEPTH
• 9.45"

• TABLE SIZE - W
• 30"

• TABLE SIZE - L
• 61"

• PALLET SIZE (INCHES)
• 25"

• MAX SWING (INCHES)
• 17.32"

• SPINDLE SPEED
• 12,000 RPM

• SPINDLE TAPER (CAT/BT)
• HSK-463

• Z - AXIS TRAVEL (INCHES)
• 14.7" / 375mm

• Y - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• X - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• CHUCK SIZE (INCHES)
• 8"

• Z-AXIS TRAVEL
• 43.5"

• X-AXIS TRAVEL
• 14.3"

• TURRET INDEX TIME
• 0.1 Second

• OD TOOL SIZE
• 1" x 1"

• NUMBER OF TOOL STATIONS
• 12

• CUTTING FEEDRATE
• 1- 24,000 mm/min / 1- 944"

• X-AXIS RAPID TRAVERSE RATE
• 1,181.1” ipm

• Z-AXIS RAPID TRAVERSE RATE
• 1,417" ipm

• SPINDLE THROUGH HOLE
• 5.2"

• SPINDLE BEARING DIAMETER
• 3.5" (Front)

• SPINDLE NOSE
• A2-8

• BAR WORKING DIAMETER
• 1.8”

• CHUCK SIZE
• 15" Hyd. Chuck

• MAX TURNING LENGTH
• 41.1"

• MAX TURNING DIAMETER
• 21.7"

• SWING OVER SADDLE
• 11.4"

• SWING OVER BED
• 20.1?

• MAIN SPINDLE MOTOR
• 5 hp / 7.5 hp

• MAX. ROTARY TOOL SPEED
• 6,000 r/m

• MAX. BORING BAR SIZE
• 1.6"

machine equipped with

• FANUC OITD CONTROL WITH 10.4? COLOR DISPLAY & EASY GUIDE
• PARTS CATCHER
• CHIP CONVEYOR
• COOLANT TANK
• COOLANT PUMP
• NO TAIL STOCK
