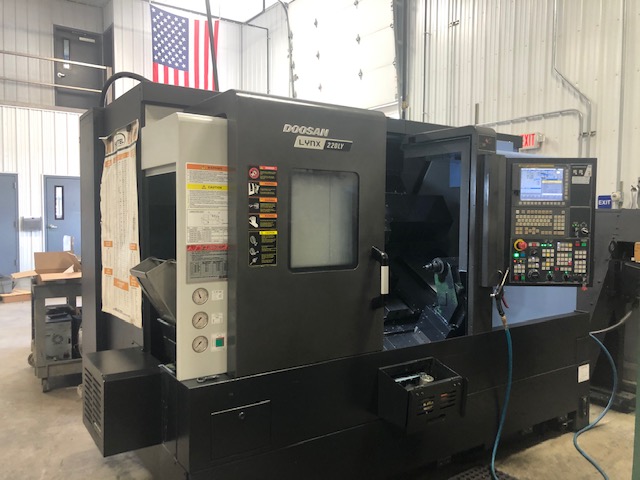

Doosan Lynx 220 LYC 2016

machine specification

• BAR CAPACITY
• 2.65"

• CHUCK SIZE
• 8"

• SPINDLE MOTOR
• 20 HP

• TURRET TOOLING STATIONS
• 12

• MAX TURNING DIAMETER
• 11.8"

• MAX TURNING LENGTH
• 20"

• MAX SWING
• 23.6"

• ROTATING TOOL SPEED
• 60 - 6,000 RPM

• ROTATING TOOL SPINDLE MOTOR
• 5 HP (10 min. rating) (3.7kW)

• Y-AXIS TRAVEL
• (105(±52.5mm)) 4.13” (±2.065”)

• Y-AXIS RAPID TRAVERSE RATE
• 394 IPM (10 m/min)

• SPINDLE SPEEDS
• 4,500 RPM

• MILLING COLLET CAPACITY
• .078" to .5" (2 – 13mm)

• ROTATING TOOL TORQUE
• 17.3 ft-lbs. (10 min. rating) (23.5Nm)

• ROTATING TOOL COLLET TYPE
• ER 20

• Y-AXIS REPEATABILITY
• + 0.00012" (+.003mm)

machine equipped with

• Y AXIS
• TOOL PRESETTER
• PARTS CATCHER
• LNS TURBO CHIP CONVEYOR
• 8” SAMCHULLY 3 JAW HYDRAULIC CHUCK
• 2 X-AXIS LIVE TOOLS
• 1 Z-AXIS LIVE TOOL
