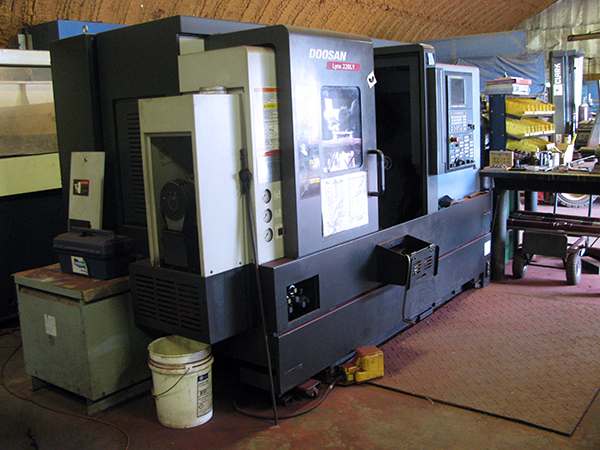

Doosan Lynx 220LYC 2014

machine specification

• BAR CAPACITY
• 2.65"

• CHUCK SIZE
• 8"

• SPINDLE SPEED
• 4,500 RPM

• SPINDLE MOTOR
• 20 HP

• TURRET TOOLING
• 12 Station

• MAX TURNING DIAMETER
• 11.8"

• MAX TURNING LENGTH
• 20"

• MAX SWING
• 23.6"

• ROTATING TOOL SPINDLE MOTOR
• (10 min. rating) (3.7kW) 5 Hp

• ROTATING TOOL TORQUE
• (10 min. rating) (23.5Nm) 17.3 ft-lbs

• ROTATING TOOL SPEED
• 60 - 6,000 RPM

• ROTATING TOOL COLLET TYPE
• ER 20

• MILLING COLLET CAPACITY
• (2 – 13mm) .078" to .5"

• Y-AXIS TRAVEL
• (105(±52.5mm)) 4.13” (±2.065”)

• Y-AXIS REPEATABILITY
• (+.003mm) + 0.00012"

• Y-AXIS RAPID TRAVERSE RATE
• (10 m/min) 394 IPM

machine equipped with

• CHIP CONVEYER
• 8" 3 JAW CHUCK
