This Machine has been sold and is No longer Available... Find similar machines below

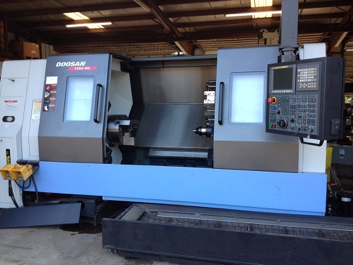

Doosan Puma 400B 2014

MAKE: Doosan
YEAR: 2014
TYPE: CNC Lathe

MODEL: Puma 400B
CONTROL:
REF #: 566965

Sell Similar Machine

Get a quote to sell your machine

Buy Similar / Same Machine

View available similar machines

Activate Search Agent

We'll help you find what you need

machine specifications

Spindle Speed:

12,000 RPM
Spindle Motor (HP):

50 HP
Chuck Size (Inches):

8"
Max Swing (inches):

17.32"
Dist. Between Centers (inches):

44.7"
X - Axis Travel (inches):

15.7" / 400mm
Y - Axis Travel (inches):

15.7" / 400mm
Z - Axis Travel (inches):

14.7" / 375mm
Pallet Size (inches):

25"

machine equipped with

Fanuc OiDT Control
EZ Guide i Conversational Programming
Chip Conveyor
Programmable Hydraulic Tailstock
Automatic Tool Setter
Automatic Metered Lubrication System
Way Lube Recovery System
Chip Guarding
Tool Monitoring System
65 PSI Multi-Stage
6 pc. ID tool holder
3 pc. U-Drill cap (for coolant through the drill or boring bar)
6 pc. Straight shank 2.5" OD bushings (5/8 3/4"- 1" - 1-1/4"- 1-1/2" - 2")
4 pc. U-drill sleeve (1" 1-1/4" 1-1/2" 2")
2 pc. Facing tool holder
2 pc. Extended turning tool holder
2 pc. OD clamp wedge (for mounting of OD tools to turret)
Read more

machine description

Swing over bed: 30.3" Swing over carriage: 23.2” Distance between centers: 44.7” Maximum turning diameter: 21.7" Maximum turning length: 41.1" Spindle speed: 20 – 2,000 RPM Spindle nose: ASA-A2-11 Draw tube ID: 4.62” Spindle bore diameter: 5.20” AC Spindle Motor (30 min. rating): 50 HP Spindle speed ranges: 2 Turret type: 12 Position Maximum spindle torque (30 min. rating): 2,419 ft-lbs. X axis travel (362mm) 14.3” Z axis travel (1105mm) 43.5” Rapid traverse rate X/Z: 630 IPM/790 IPM Repeatability X/Z: +0.00008"/+0.00012” Tailstock quill diameter / center: 4.7" / MT #5 Tailstock quill travel: 4.7” Coolant pump pressure: 65 PSI Complete set of tool holders for turret: - 6 pc. ID tool holder - 3 pc. U-Drill cap (for coolant through the drill or boring bar) - 6 pc. Straight shank 2.5” OD bushings (5/8”, 3/4“, 1”, 1-1/4”, 1-1/2”, 2”) - 4 pc. U-drill sleeve (1”, 1-1/4”, 1-1/2”, 2”) - 2 pc. Facing tool holder - 2 pc. Extended turning tool holder - 2 pc. OD clamp wedge (for mounting of OD tools to turret) Like New - 140 Hours
