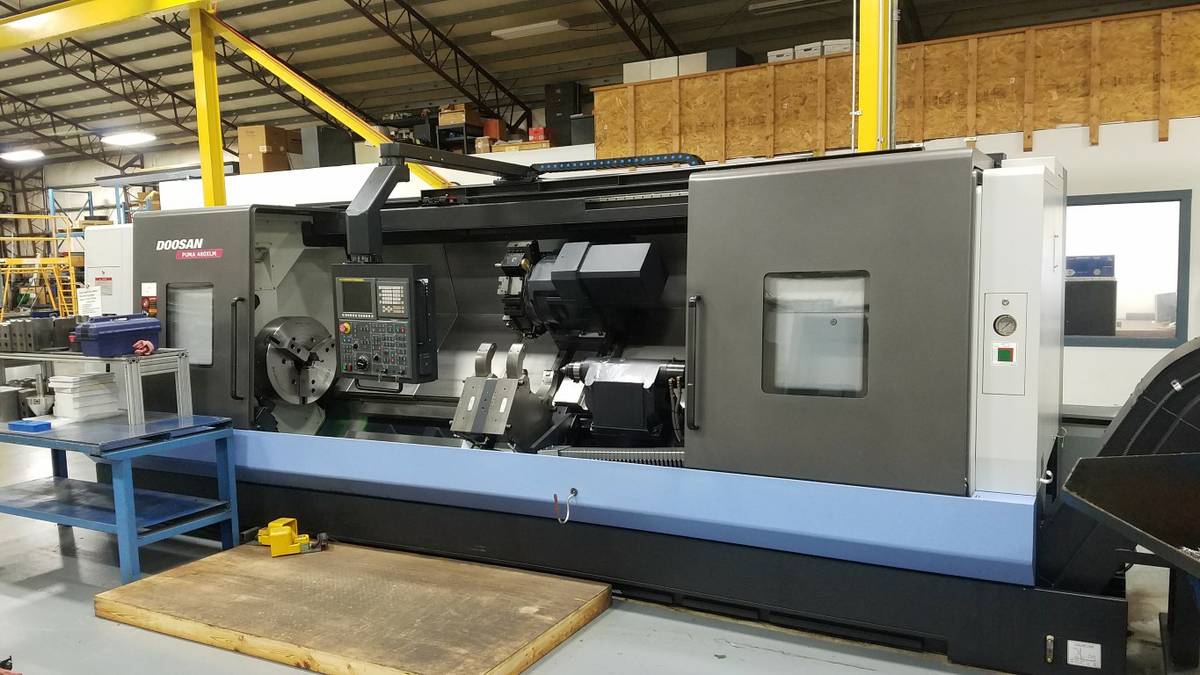

Doosan 480XLM 2012

machine specifications

• Wire Traveling Speed:

  22

• Spindle Taper (CAT/BT):

  HSK-463

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Resonator ( Type ):

  55

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Swing over Bed:

  35.4"

• Swing Over Carriage:

  28.3"

• Y - Axis Travel (inches):

  15.7" / 400mm

• Max Swing (inches):

  17.32"

• Max Turning Diameter:

  25.6"

• Max Turning Length:

  120"

• Bar Capacity:

  6.55"

• X - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Nose:

  A2-15

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  60 HP

• Chuck Size (Inches):

  8"

• Turret Capacity:

  8 Positions

• Capacity:

  24" DIA X 120" L

• Accuracy:

  +/- 0.0005"DIA, 0.002" LENGTH

• MAX WEIGHT:

  4500 LBS

• C Axis Travel:

  360 degree

• Spindle Bore Diameter:

  7.12"

• Bearing Diameter (Front):

  9.45"

• OD tool height:

  0.98"

• Indexing Time:

  0.25 sec

• Rapid Traverse X/Z:

  629.92" / 393.70"

• Cutting Feed X/Z:

  0.001 ~ 500.000 mm/rev

• Tailstock Quill Diameter:

  4.72"

• Quill Bore Taper:

  MT#6

• Quill Travel:

  4.72"
