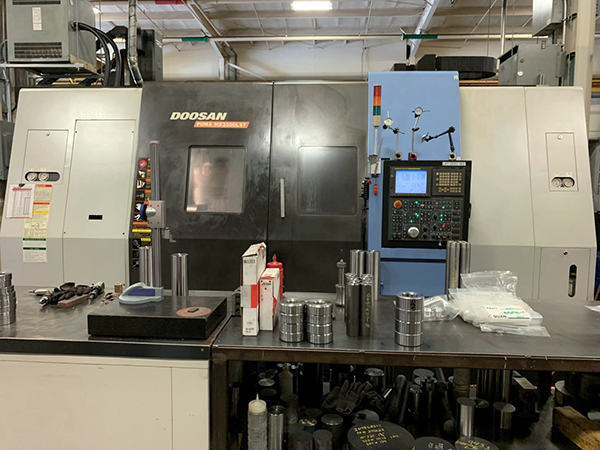

Doosan Puma MX2500LST 2008

machine specification

• LOWER TURRET STATION
• 12

• CUTTING FEEDRATES
• 19 IPR

• C-AXIS ROTATION
• 360° in .001 Increments

• B-AXIS TRAVEL
• 9.4" +/- 4.7"

• A-AXIS TRAVEL
• 61.6"

• Y-AXIS TRAVEL
• 6.3" +/-3.15"

• Z2-AXIS TRAVEL
• 64.5"

• Z1-AXIS TRAVEL
• 62.8"

• X2-AXIS TRAVEL
• 7.2"

• X1-AXIS TRAVEL
• 21.8"

• SWING OVER BED
• 29.5"

• MAX TOOL SPEED LOWER TURRET
• 4000 RPM

• MILLING SPINDLE ATC
• 24 Tools

• MAX MILLING UPPER SPINDLE SPEED
• 10,000 RPM

• MAIN SPINDLE SPEED
• 3500 RPM

• SPINDLE HOLE
• 3.38"

• MAX TURNING LENGTH
• 59.8"

• MAX TURNING DIAMETER
• 21.25"

• SWING OVER SADDLE
• 23.6"

machine equipped with

• TWO 12" POWER CHUCKS
• CHIP CONVEYOR
• TOOL HOLDERS FOR LOWER TURRET AS SHOWN IN THE PICTURES
• COMPLETE MANUALS
• COOLANT TANKS
