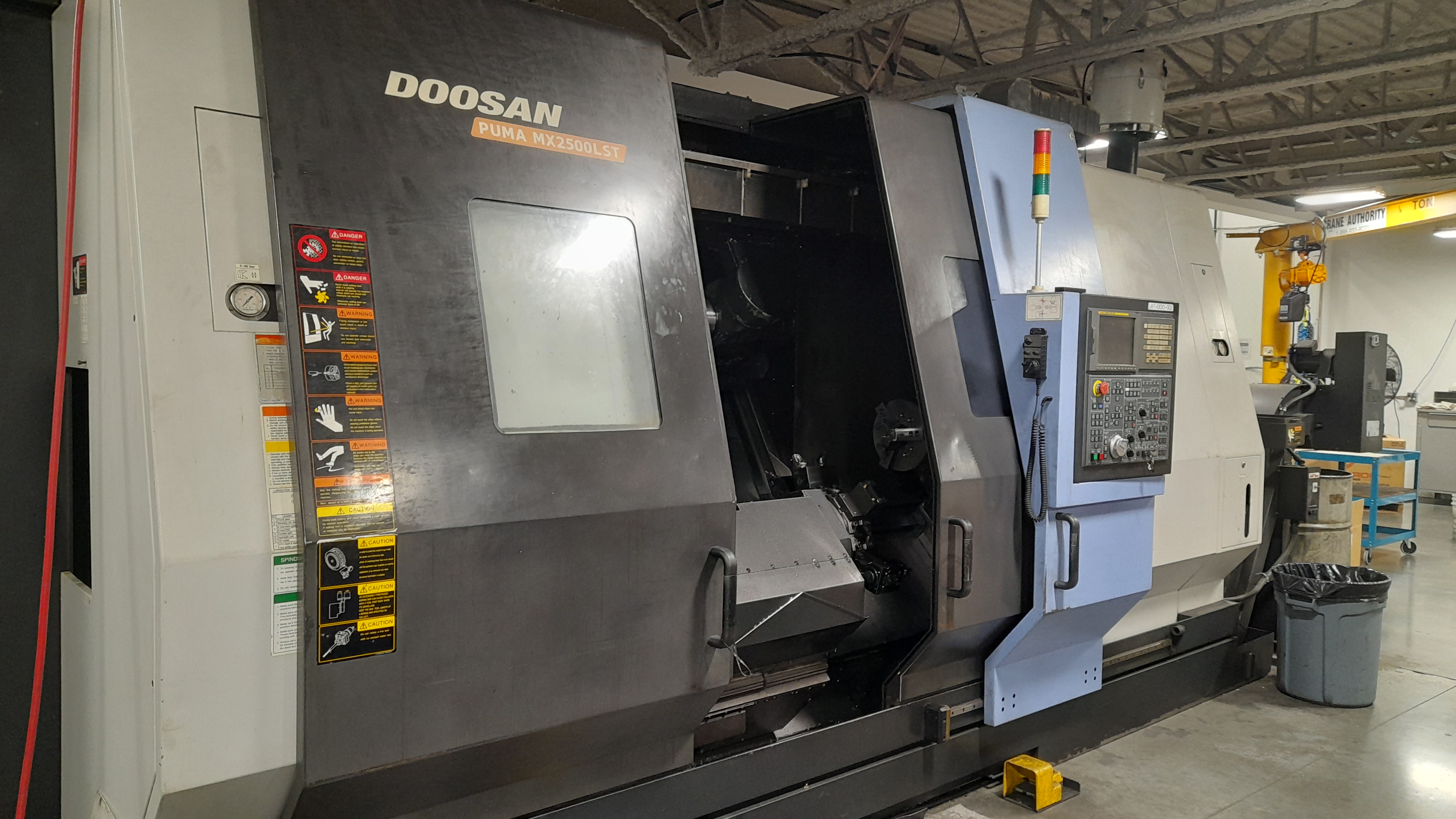

Doosan Puma MX2500LST 2008

machine specifications

• Swing over Bed:

  29.5"

• Swing Over Saddle:

  23.6"

• Max Turning Diameter:

  21.25"

• Max Turning Length:

  59.8"

• Spindle Hole:

  3.38"

• Maximum Main Spindle Speed: :

  3500 RPM

• Maximum Milling Upper Spindle Speed: :

  10,000 RPM

• Milling Spindle Taper: :

  Capto C6

• Milling Spindle ATC: :

  24 Tools

• Maximum Tool Speed Lower Turret: :

  4000 RPM

• Lower Turret Stations::

  12

• X1-Axis Travel: :

  21.8"

• X2-Axis Travel::

  7.2"

• Z1-Axis Travel: :

  62.8"

• Z2-Axis Travel: :

  64.5"

• Y-Axis Travel::

  6.3" +/-3.15"

• A-Axis Travel: :

  61.6"

• B-Axis Travel: :

  9.4" +/- 4.7"

• C-Axis Rotation::

  360° in .001 Increments

• Cutting Feedrates: :

  19 IPR

• Electrical Requirements ::

  220/3/60 94 kVA
