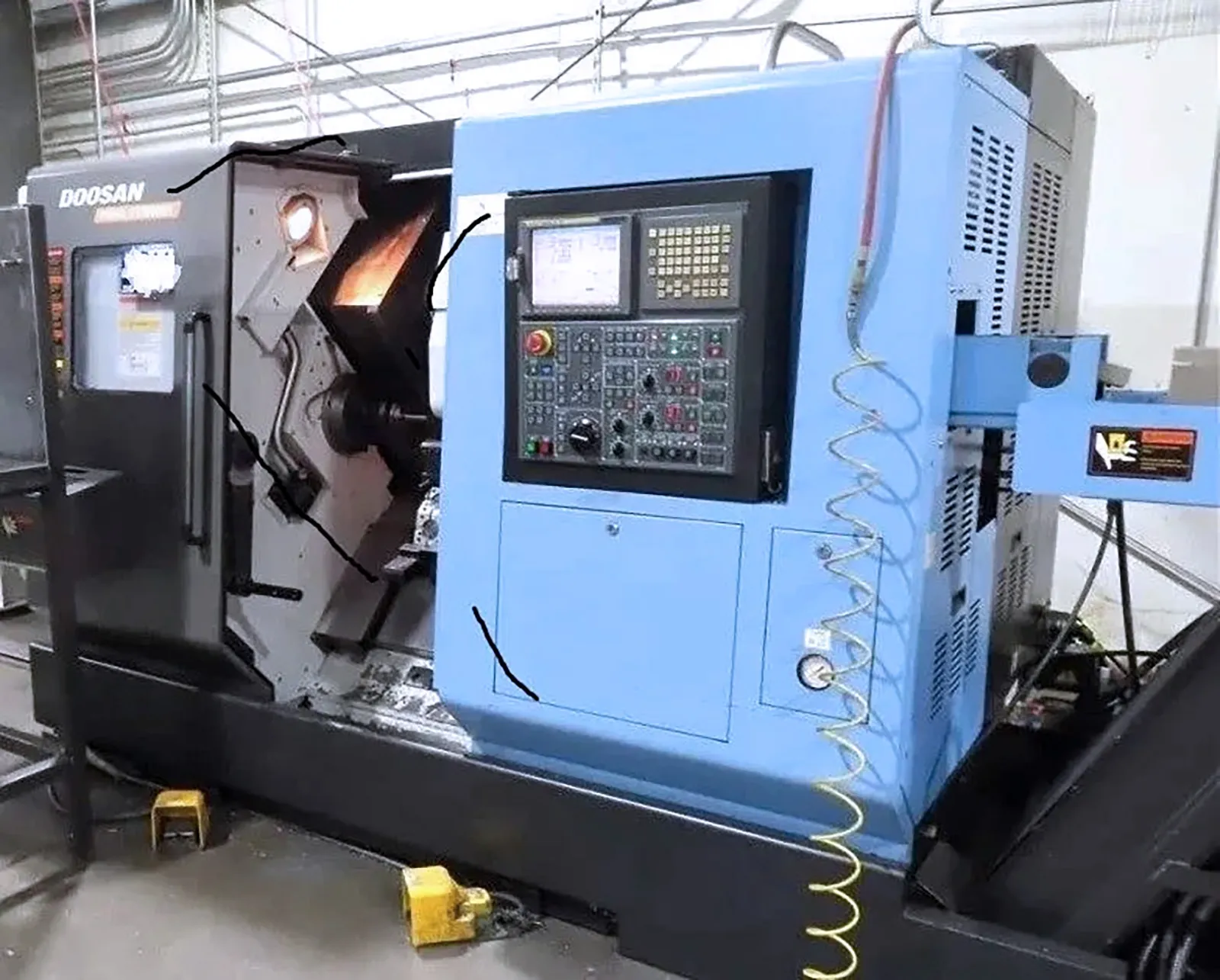

Doosan Puma TT1500SY 2008

machine specifications

• Spindle:

• Main Spindle Bore:

  2.0″

• Sub Spindle Bore:

  1.77″

• Main Spindle Nose:

  A2-5

• Sub Spindle Nose:

  A2-5

• Main Spindle Speed:

  60 – 6000 RPM

• Sub Spindle Speed:

  60 – 6000 RPM

• Main Spindle Power:

  20 hp

• Sub Spindle Power:

  20 hp

• Capacity:

• Max Turning Diameter:

  9.05″

• Max Turning Length:

  20.1″

• Max Bar Capacity:

  2.0″

• Swing over Bed:

  23.62″

• Travels:

• X1 Axis Travel:

  6.5″

• Z1 Axis Travel:

  18.5″

• X2 Axis Travel:

  7.48″

• Z2 Axis Travel:

  19.29″

• Y Axis Travel:

  4″ (+/- 2.0″)

• C Axis Travel:

  360° (0.001°)

• Feedrate:

  Rapid Traverse

• Rapid Traverse (X Axis):

  787 IPM

• Rapid Traverse Z Axis:

  945 IPM

• Rapid Traverse Y Axis:

  295 IPM

• Turret:

• Upper Turret Capacity:

  12 Stations

• Lower Turret Capacity:

  12 Stations

• Live Tool Speed:

  50-5000 RPM

• Live tool power:

  5 HP

• Turret Indexing Time:

  1 Second

• GENERAL:

• Power:

  53 kva, 220v / 3-Phase

• Overall Dimensions:

  120″ x 67″ x 72″ High

• Overall Dimensions - With Chip Conveyor:

  136″ x 67″ x 72″ High with Chip Conveyor

• Weight:

  11500 lbs
