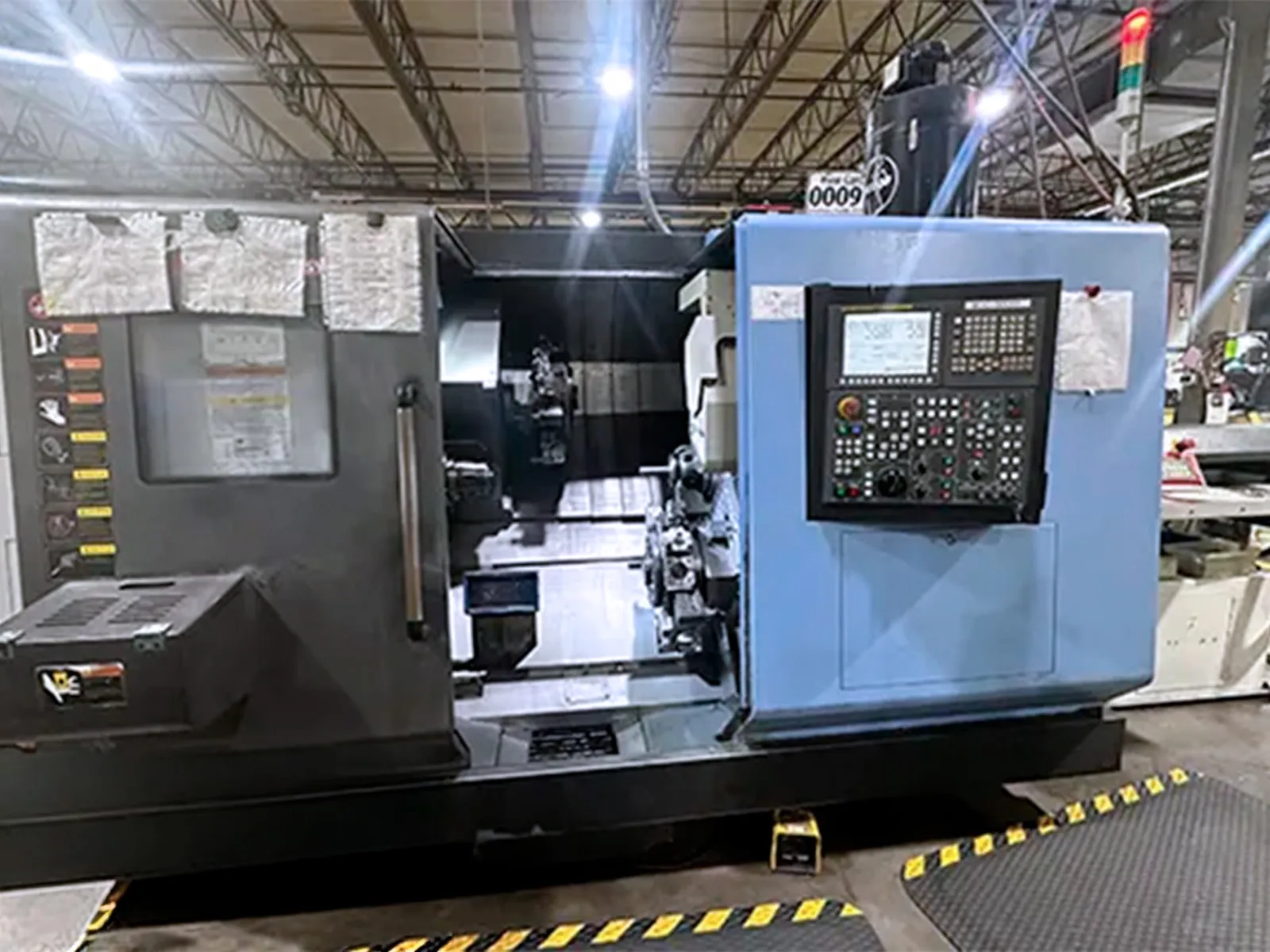

Doosan Puma TT1800SY 2012

machine specifications

• Turret Configuration:

  24 + 24 (48 Total Stations) (Upper + Lower)

• C-Axis Indexing:

  360° in .001° increments

• Sub Spindle Bearing Diameter:

  3.0"

• Sub Spindle Nose:

  A2 #6

• Sub Spindle Torque:

  153.5 Ft-Lbs

• Sub Spindle Motor:

  29.5 HP / 20.1 HP (30 min / Cont)

• Sub Spindle Speed:

  5000 RPM

• Maximum Rotary Tool Speed:

  5,000 RPM

• Turret Indexing Time:

  0.15 Seconds

• Max. tool size:

  1.3"

• OD tool size:

  0.8" x 0.8"

• Chuck Size:

  8"

• Max Swing:

  9.1"

• Max Turning Length:

  9.1"

• Max Turning Diameter:

  9.1"

• Rapid Rate X Axis:

  787 IPM

• Rapid Rate Z Axis:

  944 IPM

• Z Axis Travel:

  31.5"

• X Axis Travel:

  6.5"

• Spindle Motor:

  30 HP

• Spindle Speed:

  5,000 PRM

• Bar Capacity:

  2.625"
