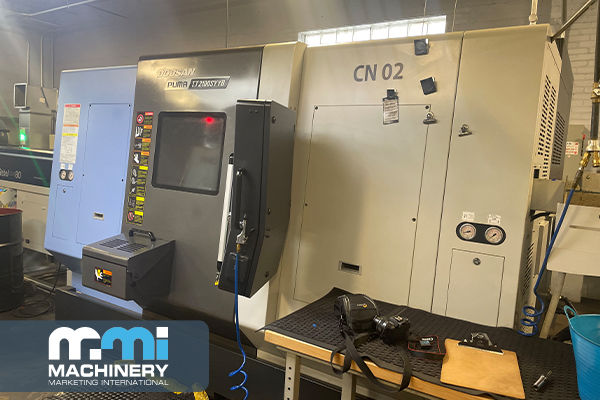

Doosan Puma TT2100SYYB 2019

machine specifications

• Travel Distance X1-axis: :

  165 mm (6.5 in.)

• Travel Distance Z1-axis: :

  700 mm (27.5 in.)

• Travel Distance X2-axis: :

  165 mm (6.5 in.)

• Travel Distance Z2-axis: :

  700 mm (27.5 in.)

• Rapid Traverse Y-axis: :

  100±50 mm (3.9±2 in.)

• Travel Distance A-axis: :

  730 mm (28.7 in.)

• Rapid Traverse X-axis: :

  30 m/min. (1,181 in./min.)

• Rapid Traverse Y-axis: :

  15 m/min. (590 in./min.)

• Rapid Traverse Z-axis: :

  40 m/min. (1,575 in./min.)

• Rapid Traverse C-axis: :

  600 rpm

• Max Turning Diameter (Upper Turret)::

  230 mm (9.1 in.)

• Max Turning Diameter (Lower Turret)::

  230 mm (9.1 in.)

• Max Turning Length::

  230 mm (9.1 in.)

• Through Hole Diameter (Left Spindle): :

  82 mm (3.2 in.)

• Through Hole Diameter (Right Spindle): :

  76 mm (3 in.)

• Chuck Size: :

  10/8 in

• Speed: :

  3,500/5,000 rpm

• Power::

  22/18 kW (30/25 Hp)

• Torque::

  244/223 Nm (180/164 ft-lbs.)

• Shank: :

  BMT-55

• Turret Stations: :

  2 x 12/Turret

• Boring Bar Diameter: :

  32 mm (1.2 in.)

• Rotary Tool Speed: :

  5,000 rpm

• Rotary Tool Power: :

  7.5 kW (10 Hp)

• Rotary Tool Torque: :

  47 Nm (34.7 ft-lbs.)

• Length: :

  3,940 mm (155 in.)

• Height::

  2,250 mm (88.6 in)

• Width::

  2,360 mm (93 in.)

• Weight::

  9,600 kg (21,170 lbs.)
