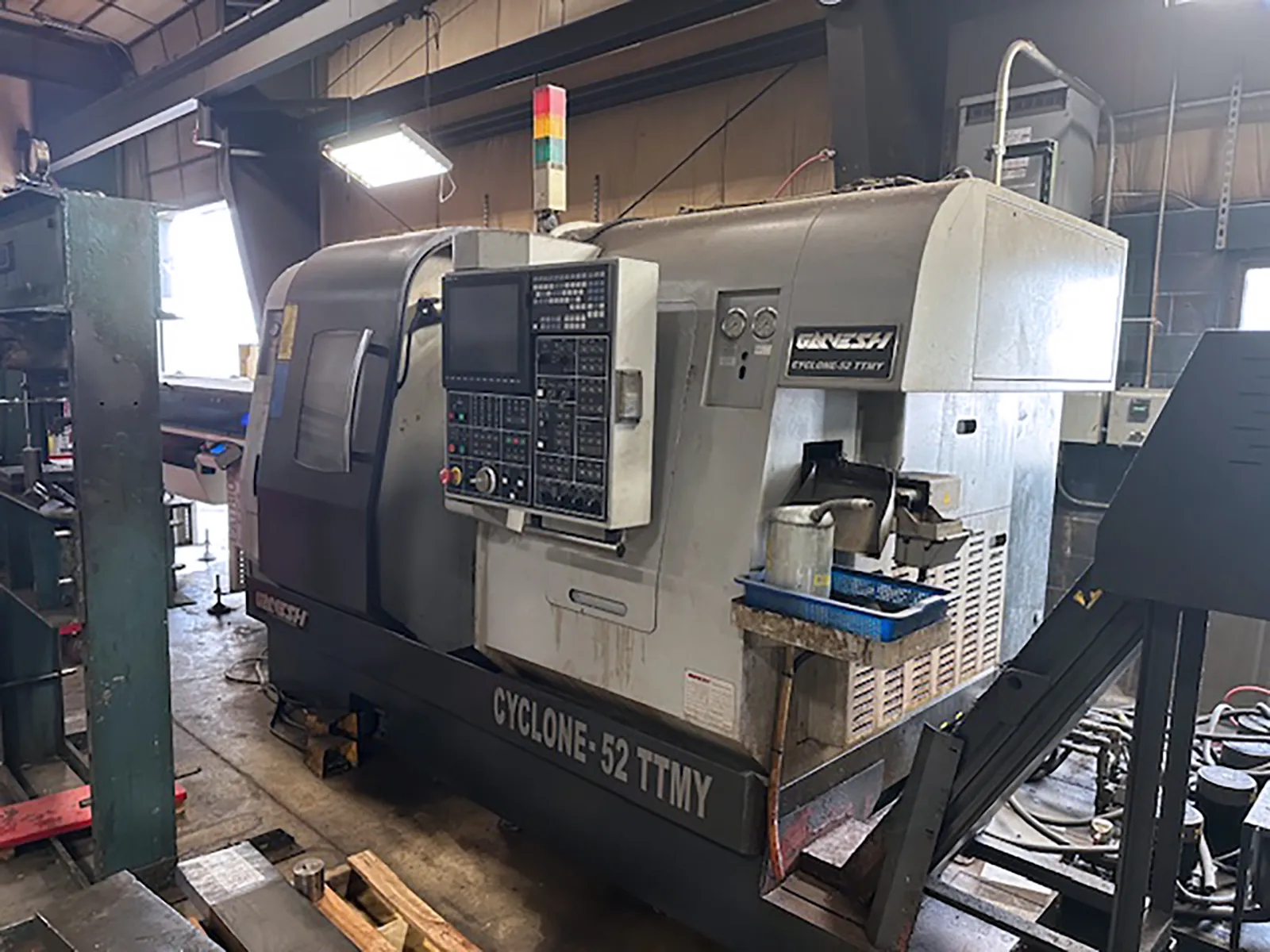

Ganesh Cyclone-52 TTMY 2014

machine specifications

• # of Axis:

  8

• Capacity:

• Max Turning Diameter:

  7.48"

• Max Cutting Length:

  15.75"

• Bar Capacity:

  2.0"

• Centers:

  (spindle distance) 36"

• Axes/Traverses:

• X-axis (upper turret):

  5.94"

• X-axis (lower turret):

  9.05"

• Z-axis (both spindles):

  17.32"

• Y-axis (upper turret):

  ±1.38"

• B-axis (sub-spindle):

  25.59"

• C-axis (main & sub spindles):

  360° full contouring; 0.001° resolution, 360,000 divisions

• Spindles/Turrets:

• Nose:

  A2‑5

• Bore:

  2.40"

• Speed:

  6,000 RPM max

• Power:

  20 HP peak (15 HP continuous)

• Dual live‑tool turrets, 16 stations each:

  32 tool positions total

• Tool holders:

  BMT‑65, accepts 25 mm tooling and ER‑32 collets

• Turret indexing:

  0.2 s adjacent, 1.2 s 180°

• Live‑tool speed:

  4,000 RPM, typically 7 HP milling capability

• Feed/Rapidity:

• X-Axis Rapid:

  630 IPM

• Z-Axis Rapid:

  1,573 IPM

• Y-axis rapid:

  236 IPM (6 m/min)

• B-Axis Rapid:

  1,573 IPM (40 m/min)

• Machine Dims:

  150" x 105" x 90"

• Weight:

  25,000 lbs
