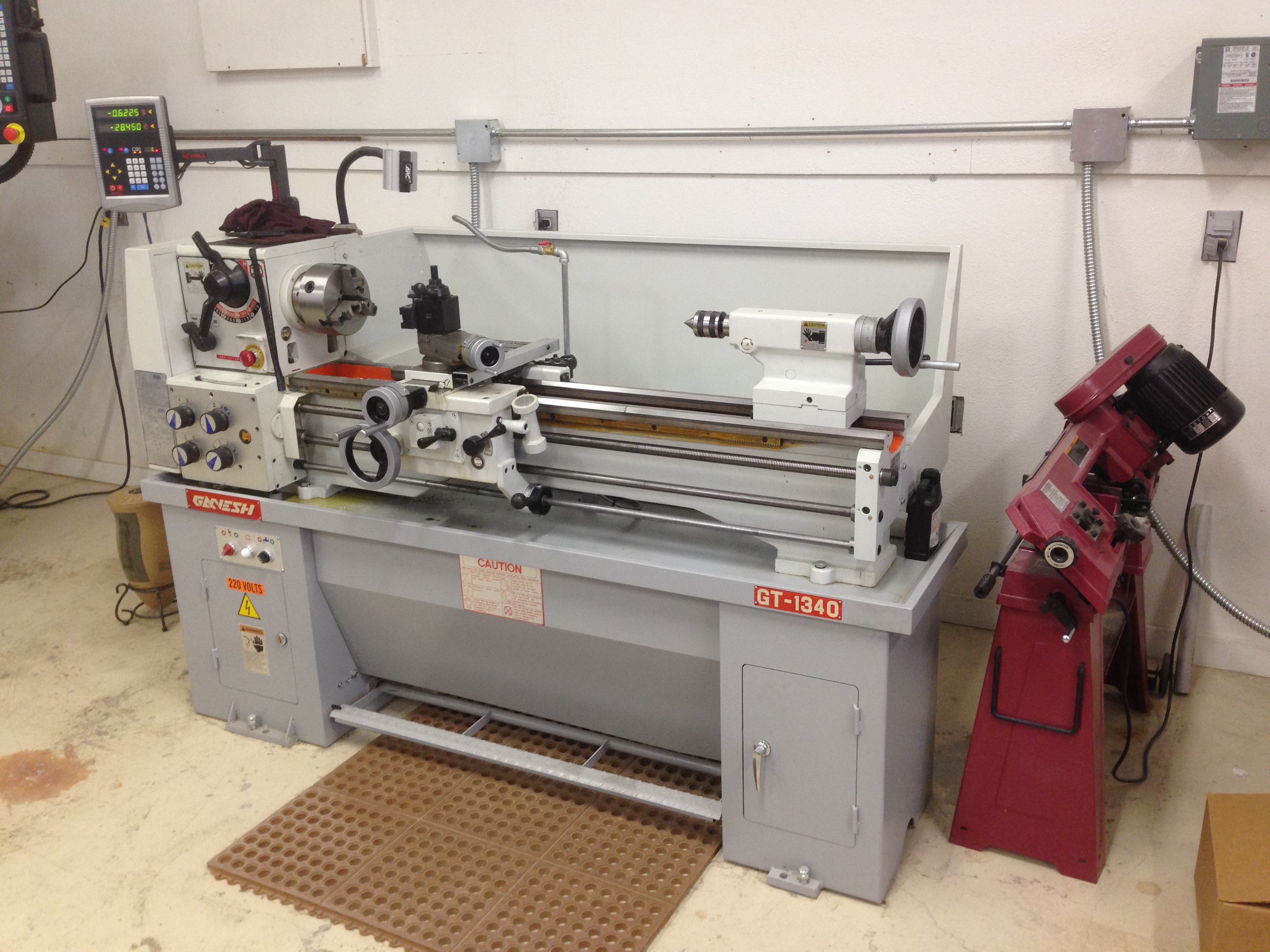

Ganesh GT-1340 2010

machine specifications

• Pallet Size (inches):

  25"

• Dist. Between Centers (inches):

  40"

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  3 HP

• Swing over Bed:

  13”

• Center Height:

  6-1/2”

• Swing over cross slide:

  7-25/32”

• Swing thru Gap:

  18-3/4”

• Length Of Gap In Front Of Face Plate:

  D1-4 4-1/2”

• Bed casting width, length, depth:

  7-3/8”, 49-1/8”, 11-13/32”

• Spindle Bore:

  1-1/2”

• Spindle Nose:

  D1-4

• Spindle taper in spindle nose:

  MT-5 Morse Taper-5

• Cross slide travel:

  6 - 5/16” 160mm

• Cross Slide Width:

  4 – 5/8” 118mm

• Cross slide lead screw pitch:

  .200”/rev.

• Cross slide resolution per division:

  0.001” (on diameters)

• Carriage lead screw diameter / pitch:

  7/8” / 8 TPI 22mm / 3mm pitch

• Feed rod dimension:

  3/4” hexagon 19mm hexagon

• Compound top slide travel:

  2-11/16” 68mm

• Compound top slide width:

  3” 76mm

• Cutting tool height maximum:

  5/8” x 5/8” 16mm x 16mm

• Tailstock:

  Engraved with inch / metric quill graduations

• Quill Diameter:

  1-21/32” 42mm

• Quill Stroke:

  4-1/2” 114mm

• Quill taper MT-3 Morse Taper:

  #3

• Tailstock body set-over adjustment:

  ± 3/8” ± 10mm

• Thread cutting range:

  31 inch pitches 4 – 56 TPI

• Thread cutting range:

  26 metric pitches 0.4 – 7mm

• Thread cutting range:

  32 diametral pitches 8 – 120 D.P.

• Thread cutting range:

  44 module pitches 0.2 – 3 M.P.

• Feeds:

  (With Clutched Feed Shaft For Safety)

• Feeds:

  longitudinal - 32 feeds 0.002” – 0.548”/rev.

• Feeds (cross ):

  32 feeds 0.0007” – 0.0187”/rev.

• Electrical power requirements:

  220 volts , 3-Phase @ 20-amps
