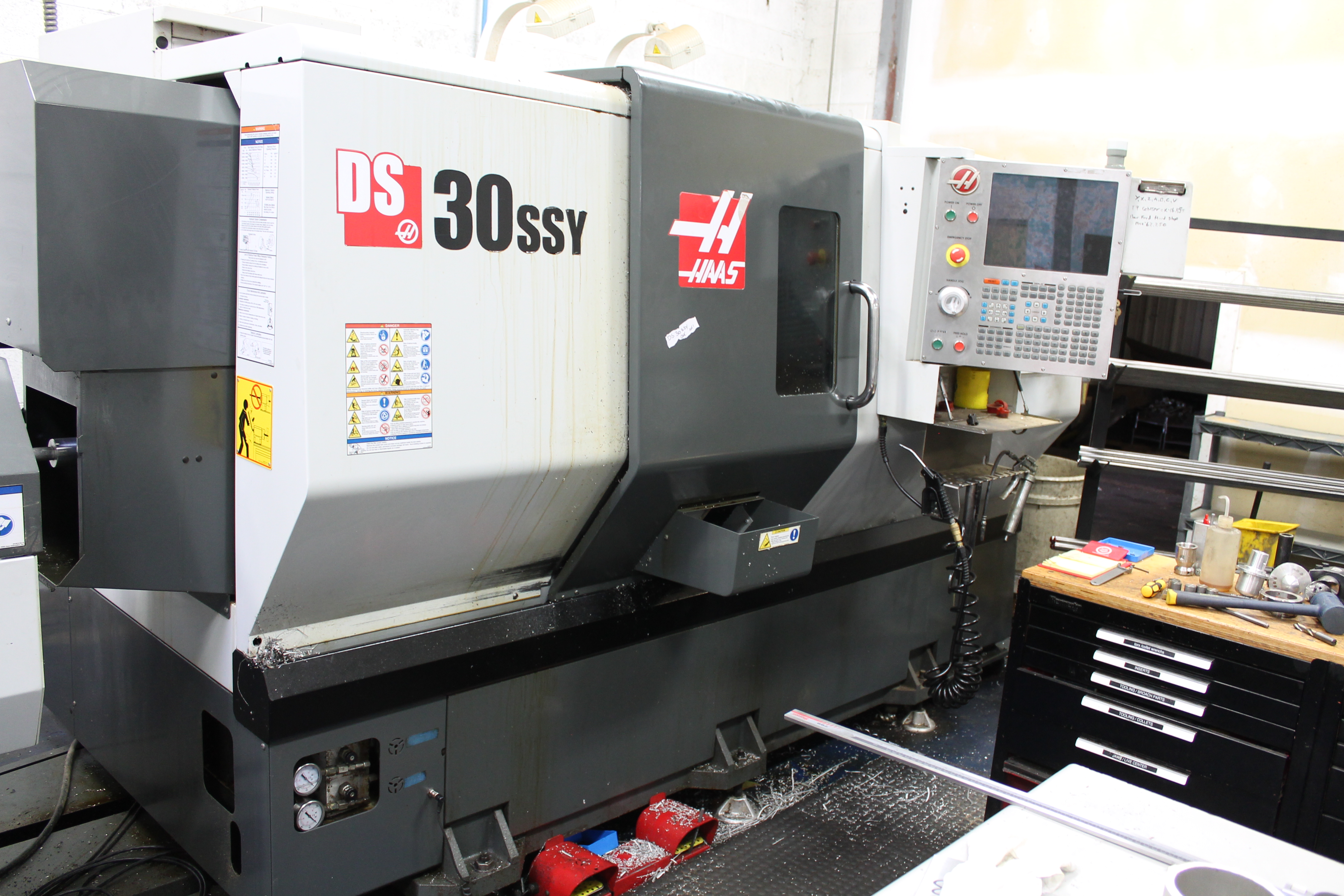

Haas DS-30SSY 2014

machine specifications

• V-Axis Travel:

  5555

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Spindle Speed:

  12,000 RPM

• Spindle Taper (CAT/BT):

  HSK-463

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Chuck Size (Inches):

  8"

• Over Front Apron:

  31.75 "

• Over Cross Slide:

  20.75 "

• Over Second Spindle:

  21.75 "

• Max Cutting Diameter (varies with turret):

  16.0 "

• Max Cutting Length (without workholding):

  23 "

• Bar Capacity:

  2.0 "

• Rapids on X/Y/Z:

  472"/472"/1200"

• Max Thrust X/Y/Z:

  4100 Lb./2300 Lb/4050 Lb.

• Max Rating:

  30 HP

• Max Speed:

  4800 RPM

• Max Torque:

  275 ft-lb @ 600 rpm

• Spindle Nose:

  A2-6

• Spindle Bore:

  3.50 "

• Max Rating:

  5 hp

• Positioning:

  0.01 (deg.)

• Brake Clamp Force:

  1000 lb

• Brake Diameter:

  14.4 "

• Max Rating:

  20 hp

• Max Torque:

  110 ft-lb @ 700 rpm

• Spindle Nose:

  A2-5

• Spindle Bore:

  2.44 "

• Brake Clamp Force:

  500 lb

• Brake Diameter:

  7"

• Number of Tools:

  24 Stations

• OD vs ID Tools:

  Hybrid 12 BOT/12 VDII

• Boring Bar Rear Clearance (from back of turret ):

  4.0"

• Max Speed:

  6000 rpm

• Brake Diameter:

  13.25 "

• Tooling:

  VDI40

• Air Required:

  4 scfm, 100 psi

• Coolant Capacity:

  55 Gal
