Haas SL-10 2003

machine specifications

• Spindle Motor (HP):

  15 HP

• Y - Axis Travel (inches):

  15.7" / 400mm

• Spindle Taper (CAT/BT):

  HSK-463

• Max Swing (inches):

  17.32"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• Dist. Between Centers (inches):

  16.5"

• Spindle Speed:

  12,000 RPM

• Z - Axis Travel (inches):

  14.7" / 375mm

• X - Axis Travel (inches):

  15.7" / 400mm

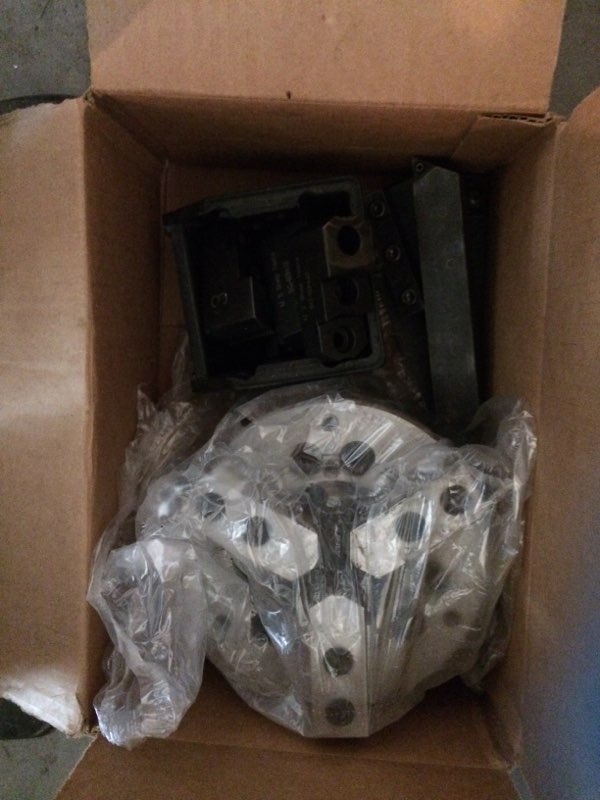

• Chuck Size (Inches):

  8"

• Turret Capacity:

  8 Positions

• Bar Stock Capacity:

  2.0"

• Max Turning Diameter:

  21.7"

• Max Turning Length:

  41.1"

• Wire Traveling Speed:

  22

• Swing Over Front Apron:

  16.25"

• Swing over cross slide:

  8"

• Rapid Traverse Rates:

  710 IPM

• Spindle Torque:

  75 @ 1,300 RPM

• Spindle Bore:

  2.31"

• Draw Tube Bore:

  1.81"

• Tailstock Taper:

  MT-3

• Tailstock Travel:

  4"
