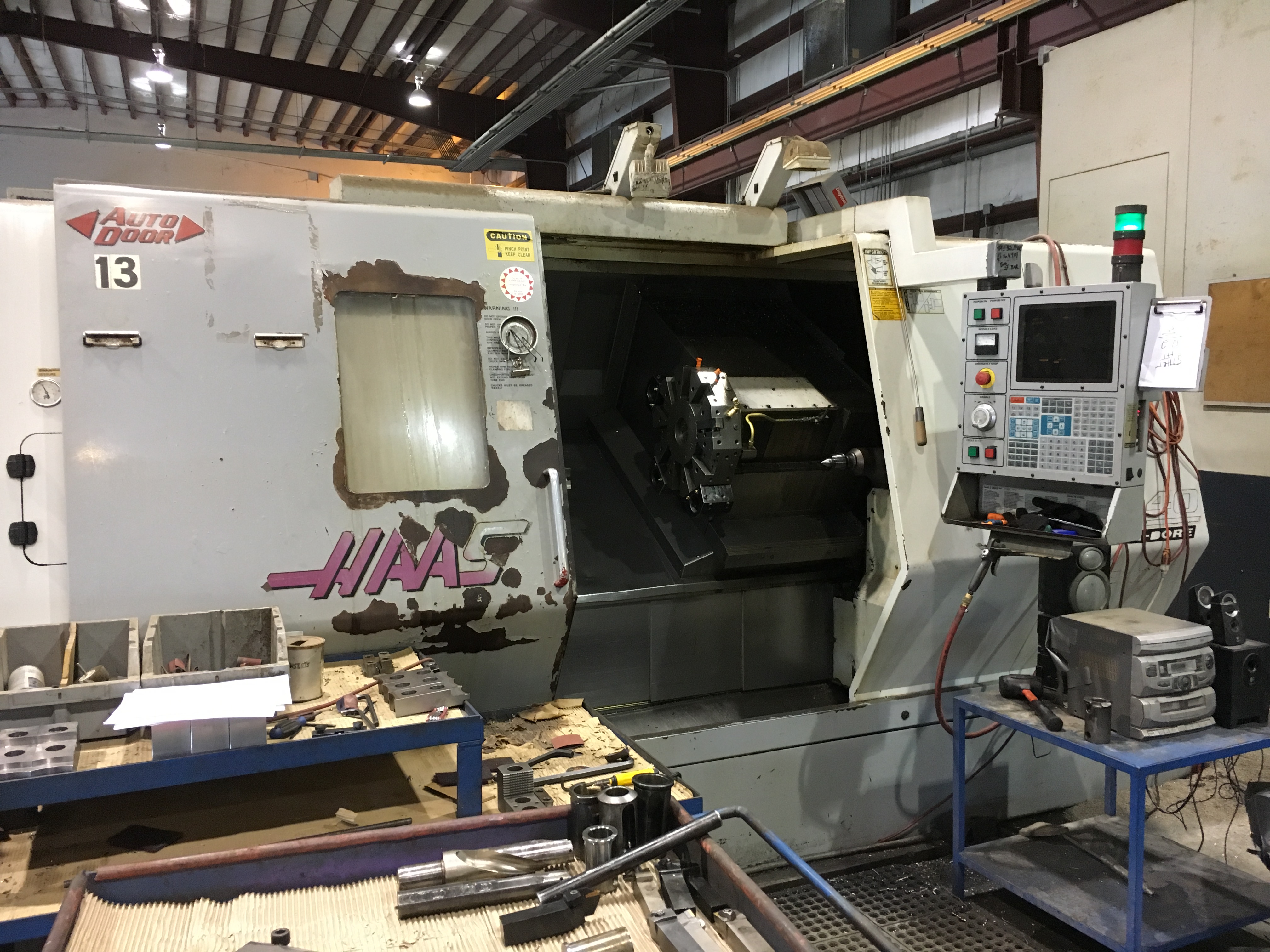

Haas SL-40T 2001

machine specifications

• Dist. Between Centers (inches):

  51"

• Chuck Size (Inches):

  8"

• Y - Axis Travel (inches):

  15.7" / 400mm

• Spindle Taper (CAT/BT):

  HSK-463

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Vertical Travel of Ram:

  4444

• Turret Capacity:

  8 Positions

• Spindle Motor (HP):

  55 HP

• Spindle Speed:

  12,000 RPM

• X - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Resonator ( Type ):

  55

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• V-Axis Travel:

  5555

• Swing over cross slide:

  25"

• Rapid Traverse All Axis:

  710 IPM

• Spindle Nose:

  A2-8

• Spindle Bore:

  4.0"

• Turret Capacity:

  10 Station

• Tailstock Taper:

  MT #5

• Tailstock Travel:

  44"
