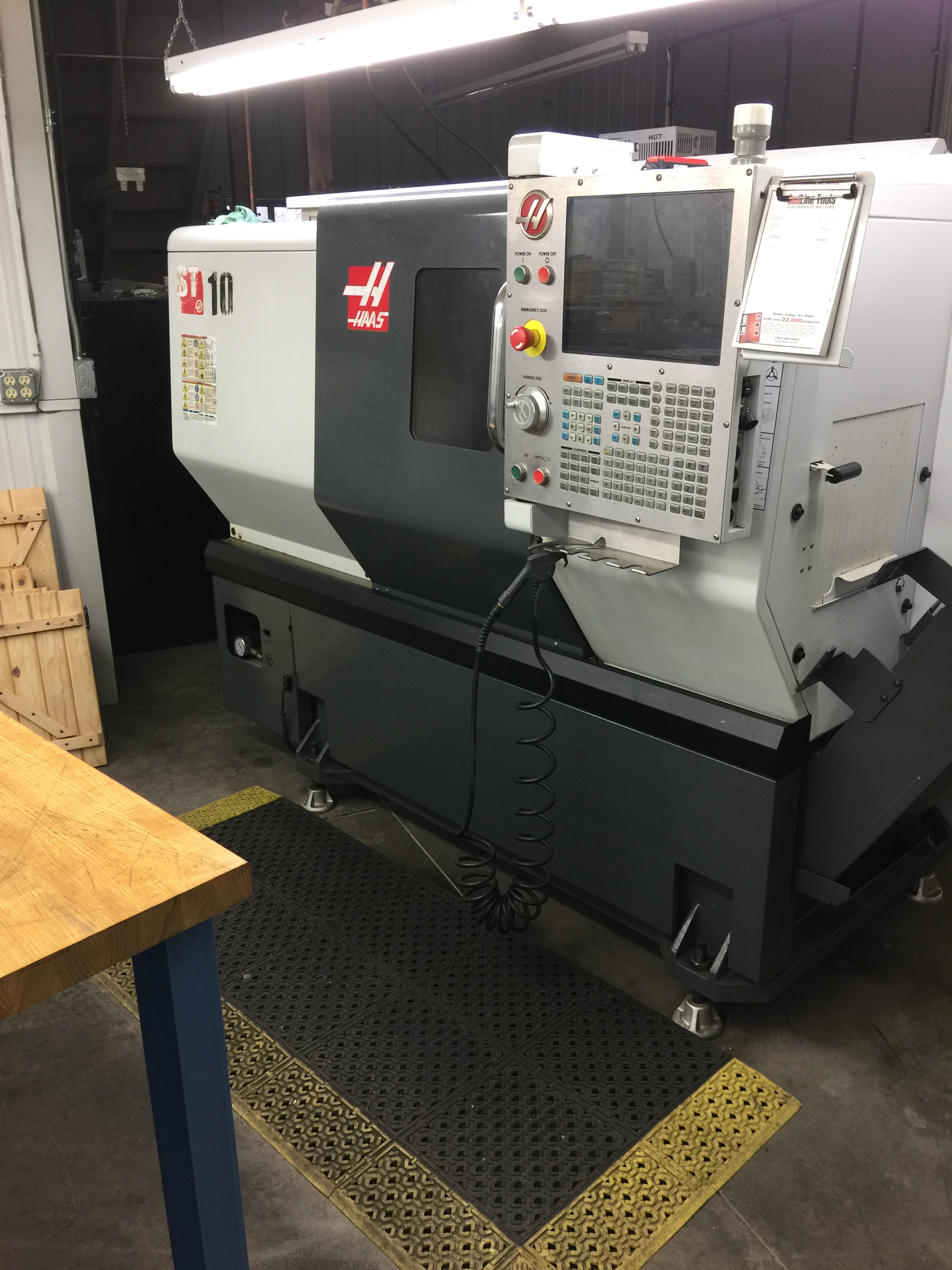

Haas ST-10 2012

machine specifications

• Table Size - L:

  61"

• Y - Axis Travel (inches):

  15.7" / 400mm

• Spindle Taper (CAT/BT):

  HSK-463

• Resonator ( Type ):

  55

• Pallet Size (inches):

  25"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Chuck Size (Inches):

  8"

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• X - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Bar Stock Capacity:

  2.0"

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  15 HP

• Max Swing (inches):

  17.32"

• Turret Capacity:

  8 Positions

• Chuck:

  Collet Chuck

• Cross Slide:

  16.25"

• Maximum Turning Diameter:

  14"

• Maximum Turning Length:

  14"

• Spindle Nose / Bore:

  A2-5" / 2.31"

• Spindle Torque:

  75 ft./lbs.

• Rapid Traverse Rates:

  1,200 IPM
