Haas ST-10 2018

machine specification

• CHUCK SIZE
• 6"

• MAX SWING OVER BED
• 25.25"

• MAX SWING OVER CROSS SLIDE
• 16.5"

• MAX CUTTING DIAMETER
• 12"

• MAX CUTTING LENGTH
• 16"

• MAX BAR CAPACITY
• 1.75"

• X-AXIS TRAVEL
• 7.9"

• Z-AXIS TRAVEL
• 16"

• SPINDLE SPEED
• 6,000 RPM

• TURRET STATIONS
• 12 Position

• RAPID TRAVERSE RATE
• 1,200 IPM (X/Z)

machine equipped with

• 6” 3 JAW CHUCK
• SPINDLE ORIENTATION
• USER DEFINABLE MACROS
• AUTOMATIC TOOL PRESETTER SYSTEM
• CHIP CONVEYOR
• BELT TYPE
• PARTS CATCHER SYSTEM
• ETHERNET INTERFACE
• VISUAL QUICK CODE PROGRAMMING SYSTEM
• TURRET FACE CLAMP BLOCK FOR BOT TURRET 2 HOLDERS
• BOLT ON 3/4" FACE GROOVE HOLDER 1 HOLDER
• BOT10ID-1 BOLT-ON 1" ID BORING BAR HOLDER 5 HOLDERS
• CB COOLANT NOZZLE BLOCK FOR BOT TURRET 2

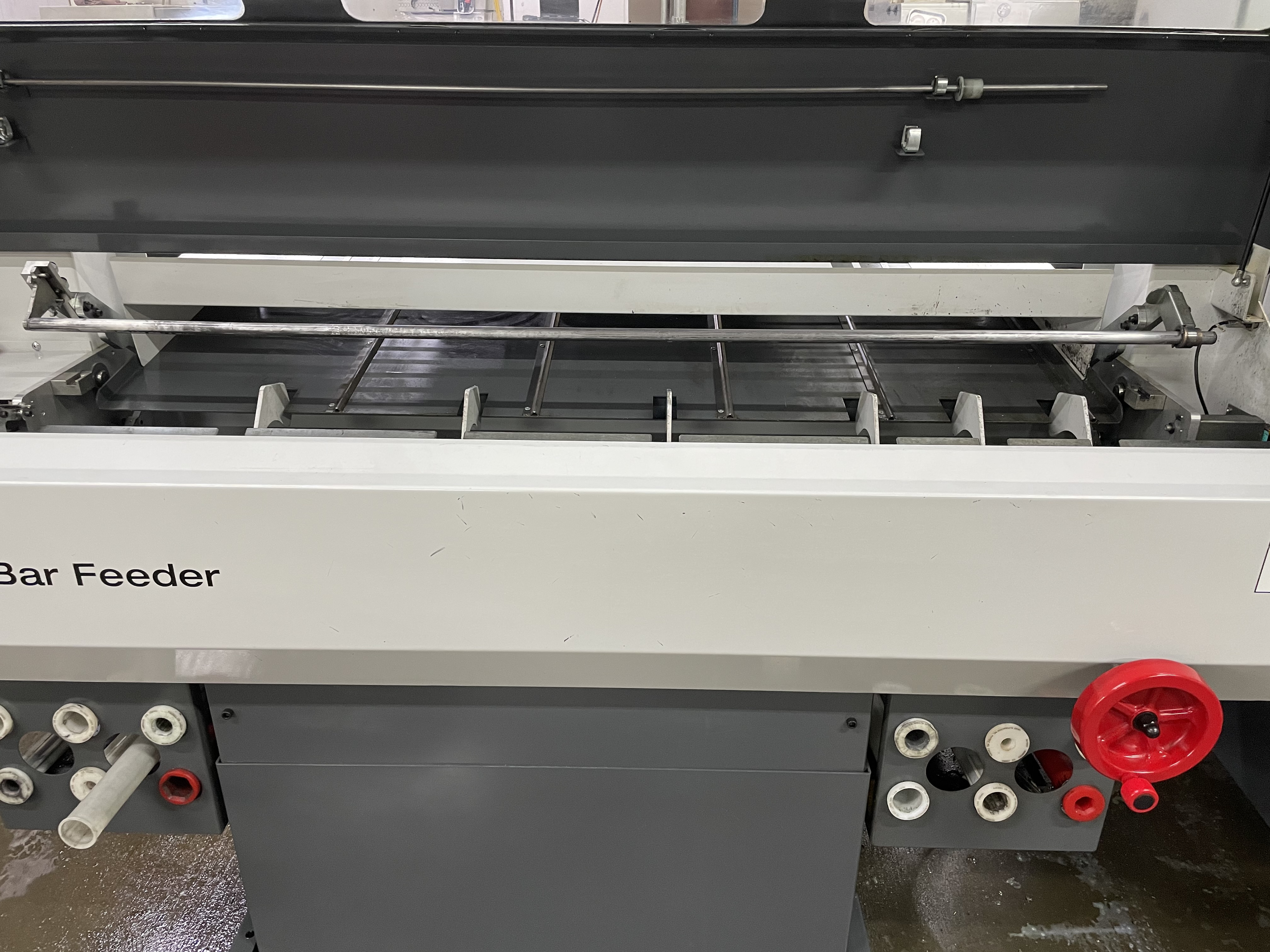

• HAAS BAR HAAS BAR FEEDER
• ROYAL LOW-PROFILE PULLBACK COLLET CHUCK A2-5 1 (3J STYLE COLLETS)
