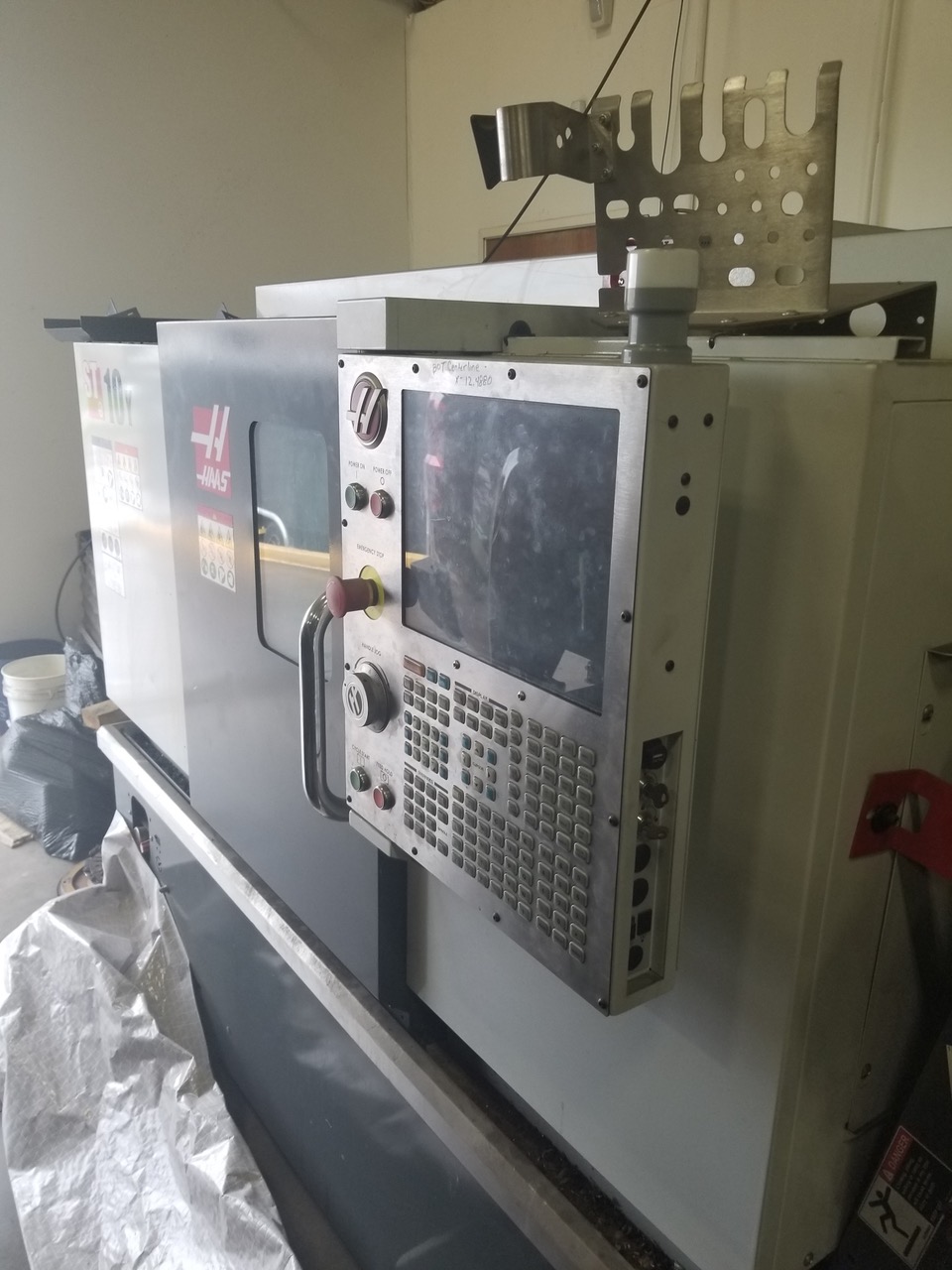

Haas ST-10Y 2016

machine specifications

• Bar Capacity:

  1.75"

• Rapids on Z:

  1200 in/min (30.5 m/min)

• Rapids on X:

  472 in/min (12.0 m/min)

• Number of Tools:

  12 (VDI)

• Rapid X & Y:

  472" & 1200" IPM

• Z-Axis Travel:

  14"

• Y-Axis Travel:

  +/-2.0"

• X-Axis Travel:

  7.88"

• Max Cutting Length:

  14"

• Max Cutting Diameter:

  9”

• Coolant Capacity:

  30 U.S. gallons

• Chuck Size:

  6.5"

• Draw Tube Bore:

  Ø1.80"

• Spindle Bore:

  Ø2.31"

• Peak Horsepower:

  15 hp

• Spindle Torque:

  75 ft-lb (102 Nm) @ 1300 rpm

• Voltage/Phase:

  195-260 VAC, 3-phase, 50-60 Hz

• Power required:

  14 kVA

• Air Required:

  4 scfm at 100 psi (113 L/min at 6.9 bar)
