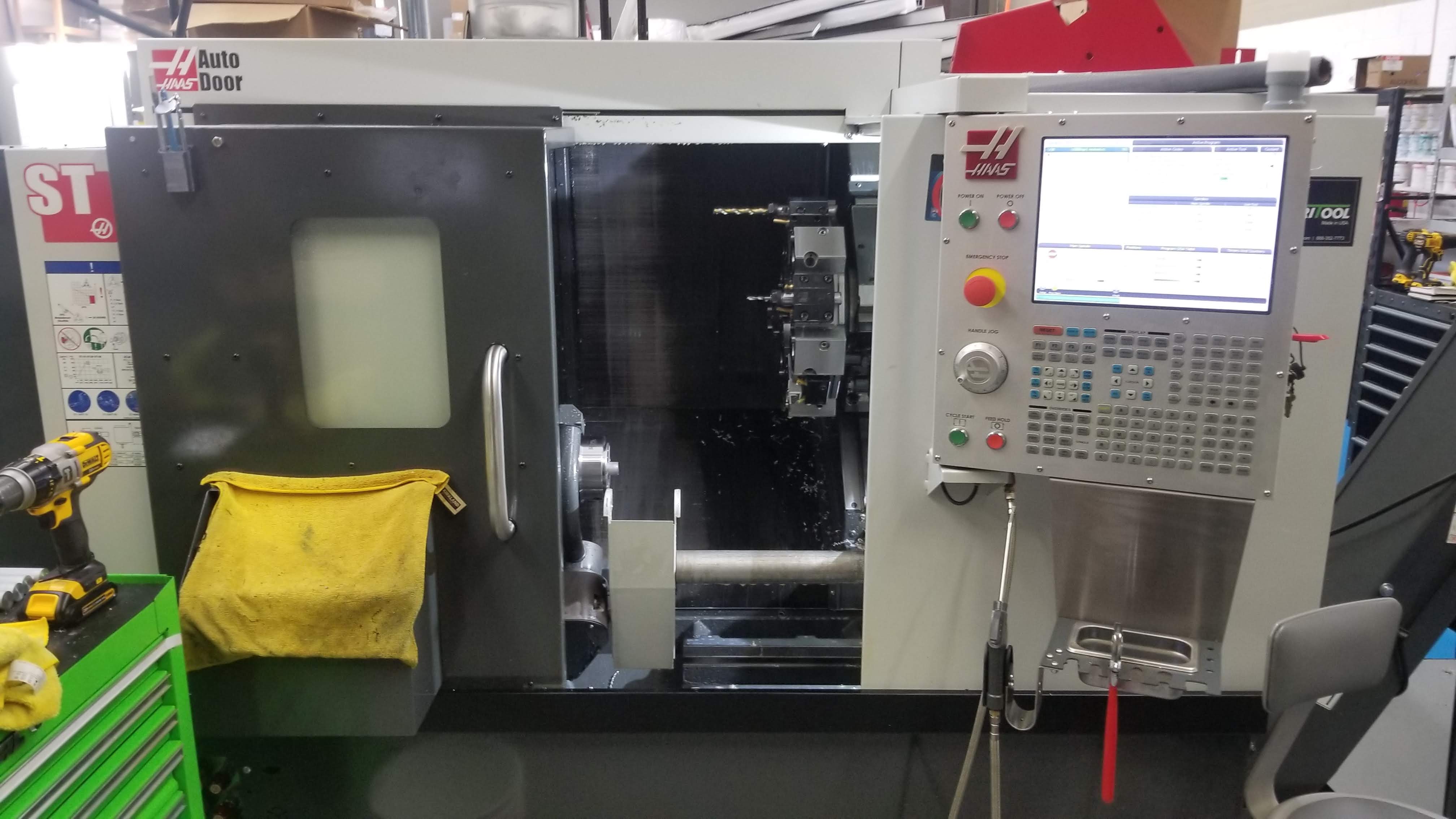

Haas ST-15Y 2019

machine specification

• MAX PART DIAMETER
• 16.5 in

• OVER WEDGE
• 16.5 in

• CHUCK SIZE
• 8.3 in

• MAX CUTTING DIAMETER
• 12.0 in

• MAX CUTTING LENGTH
• 16.0 in

• BAR CAPACITY
• 2.50 in

• X-AXIS TRAVEL
• 7.9 in

• Y-AXIS TRAVEL
• ± 2.0 in

• Z-AXIS TRAVEL
• 16.0 in

• RAPIDS ON X/Y/Z
• 472/472/1200 IPM

• MAX THRUST X
• 2400 lbf (Axis Motors)

• MAX THRUST Y
• 2300 lbf (Axis Motors)

• MAX THRUST Z
• 3700 lbf (Axis Motors)

• SPINDLE NOSE
• A2-6

• MAX RATING
• 20.0 HP

• MAX SPEED
• 4000 rpm

• MAX TORQUE
• 150.0 ft-lbf @ 500 rpm

• SPINDLE BORE
• 3.50 in

• MAX SPEED
• 60 rpm (Main Spindle C-Axis)

• MAX RATING
• 5.0 hp (Main Spindle C-Axis)

• POSITIONING (±)
• 0.02 °

• BRAKE CLAMP FORCE
• 1000 lbf

• BRAKE DIAMETER
• 14.4 in

• QUILL TRAVEL
• 3.8 in (Hydraulic)

• BORING BAR REAR CLEARANCE (FROM BACK OF TURRET )
• 0.75 in

• SPINDLE SPEED
• 4000 rpm

• SPINDLE POWER
• 20.0 hp

• INPUT AC VOLTAGE (3 PHASE)
• High 440 VAC

• FULL LOAD AMPS (3 PHASE)
• High 20A

• BRAKE HOLDING TORQUE
• 140 ft-lbf

• MANUAL BODY POSITIONING
• 20.0 in

• MAX THRUST (HYD. QUILL ONLY)
• 1130 lbf

• MIN THRUST (HYD. QUILL ONLY)
• 140 lbf

• BORING BAR REAR CLEARANCE (FROM BACK OF TURRET )
• 0.75 in

• AIR REQUIRED
• 4 scfm @ 100 psi

• COOLANT CAPACITY
• 30 gal

• NUMBER OF TOOLS
• 12-Station Hybrid (6 VDI; 6 BOT)

• LIVE-TOOLING
• VDI40

• LIVE TOOL SPEED
• 4000 rpm

machine equipped with

• ROYAL QG65 PULL BACK CHUCK W/ 7 COLLETS
• USB PORT
• RIGID TAPPING
• SPINDLE ORIENTATION
• AUTOMATIC TOOL PRESETTER
• BELT-TYPE CHIP CONVEYOR
• MANUAL TAILSTOCK W/ HYDRAULIC QUILL
• 1 RADIAL DRIVEN TOOLHOLDER
• 1 AXIAL DRIVEN TOOLHOLDER
• HAAS SPINDLE LINER KIT
• PARTS CATCHER
