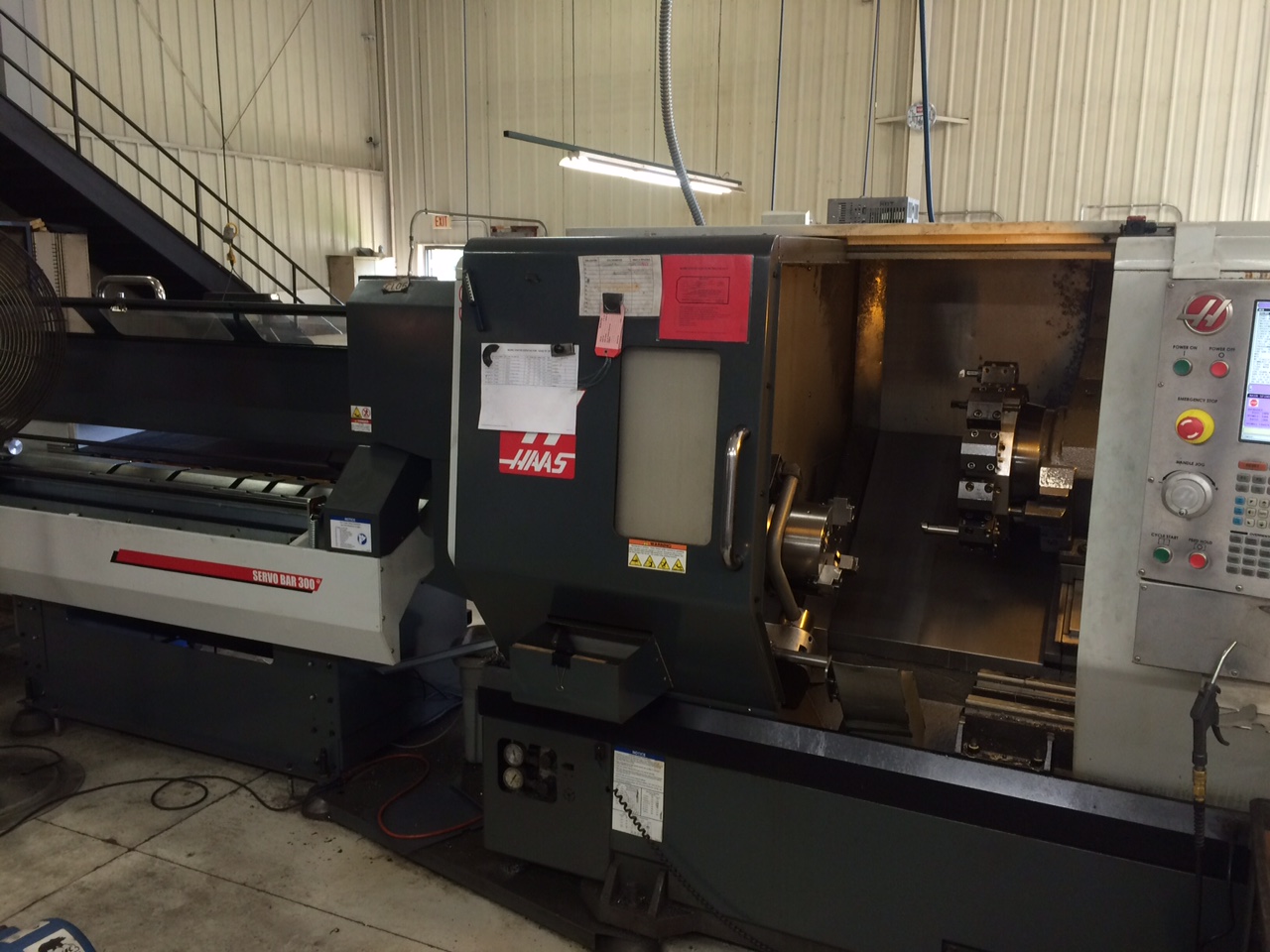

Haas ST-30 2011

machine specifications

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• Tool Changer Type:

  60 ATC

• Throat Depth:

  9.45"

• Table Size - W:

  30"

• Table Size - L:

  61"

• Pallet Size (inches):

  25"

• Resonator ( Type ):

  55

• Y - Axis Travel (inches):

  15.7" / 400mm

• Max Swing (inches):

  17.32"

• Spindle Taper (CAT/BT):

  HSK-463

• X - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Chuck Size (Inches):

  8"

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  30 HP

• Bar Stock Capacity:

  2.0"

• Dist. Between Centers (inches):

  30"

• Over Front Apron:

  31.75"

• Over Cross Slide:

  20.75"

• Over Tailstock:

  23.0"

• Max Cutting Diameter (varies with turret):

  21.0"

• Max Cutting Length (without workholding):

  26.0"

• Rapids on X:

  945 in/min

• Rapids on Z:

  945 in/min

• Max Thrust X:

  4100 lb

• Max Thrust Z:

  5100 lb3

• Max Torque:

  300 ft-lb @ 500 rpm

• Spindle Nose:

  A2-6

• Max Torque w/opt Gearbox:

  1000 ft-lb @ 150 rpm

• Spindle Bore:

  ø 3.50"

• Number of Tools:

  12 Stations

• Boring Bar Rear Clearance (from back of turret):

  4.0"

• Air Required:

  4 scfm, 100 psi

• Coolant Capacity:

  55 gal
