Haas ST-30Y 2016

machine specification

• BAR CAPACITY
• 3"

• TOOL TURRETS
• 12 Station

• SPINDLE BAR
• 3.5"

• CHUCK SIZE
• 10"

• MAX CUTTING DIAMETER
• 18"

• MAX CUTTING LENGTH
• 23"

• MAX SWING
• 31.8"

• LIVE TOOLING SPEED
• 4,000 RPM

• X-AXIS TRAVEL
• 12.5"

• Y-AXIS TRAVEL
• +- 2"

• Z-AXIS TRAVEL
• 26"

• RAPID RATE Z AXIS
• 945 IPM

• RAPID RATE X Y AXIS
• 472 IPM

machine equipped with

• 10" HYDRAULIC CHUCK
• A2-6
• RIGID TAPPING
• USB PORT
• LIVE TOOLING
• CHIP CONVEYOR
• PROGRAMMABLE HYDRAULIC TAILSTOCK
• 55-GALLON COOLANT TANK

machine description

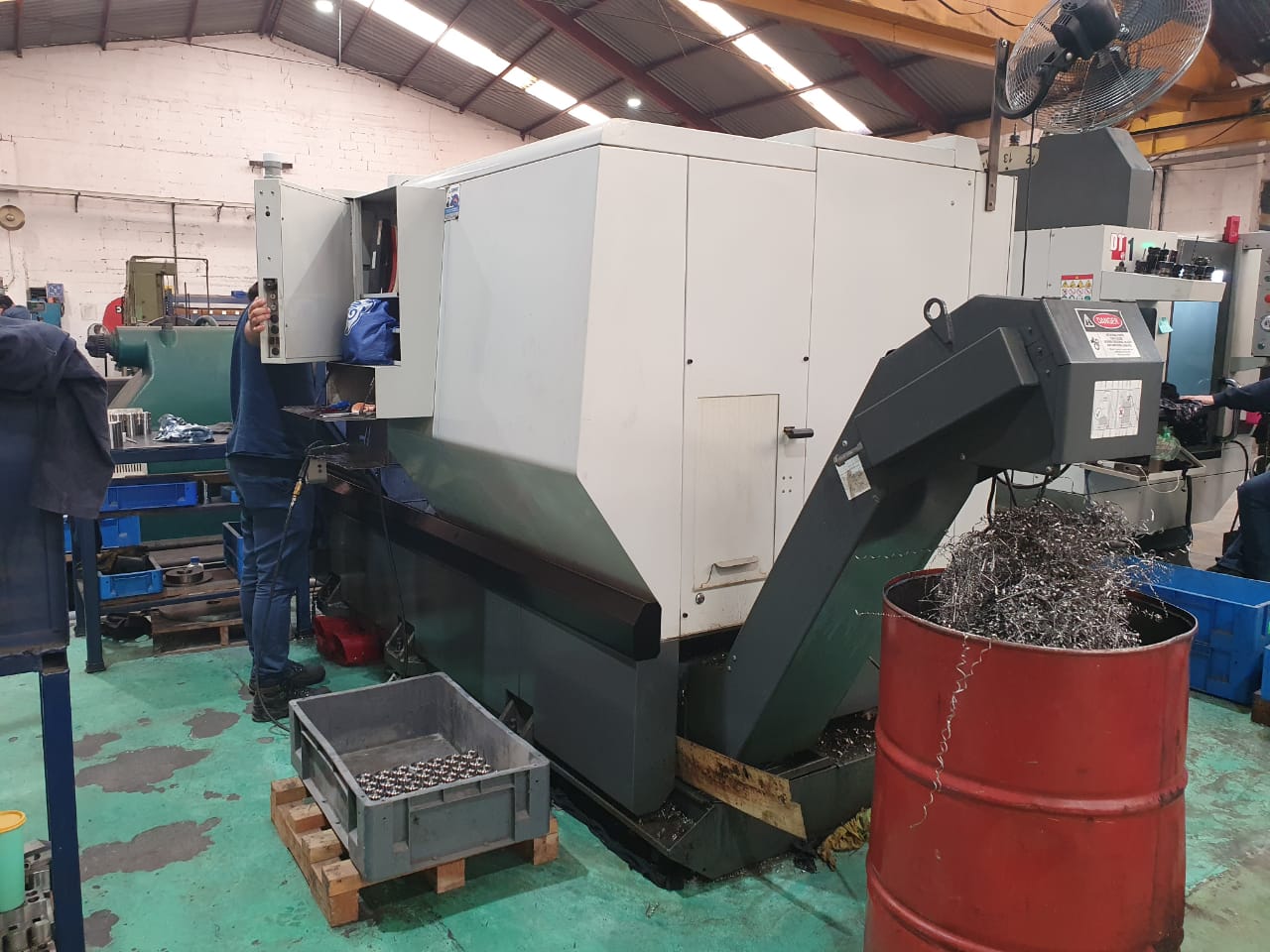

This Haas CNC Lathe features a 10” Hydraulic Chuck, a 2” Y axis, a maximum swing of 31.75” and a 3400 RPM spindle speed. The CNC Machine comes equipped with a rigid tap, a USB Port, Live Tooling, a Chip Conveyor, a 55 Gallon Coolant Tank, and a tailstock. The CNC Machine was new in 2016. For further details contact Machinery Marketing International at 312.226.4150.
