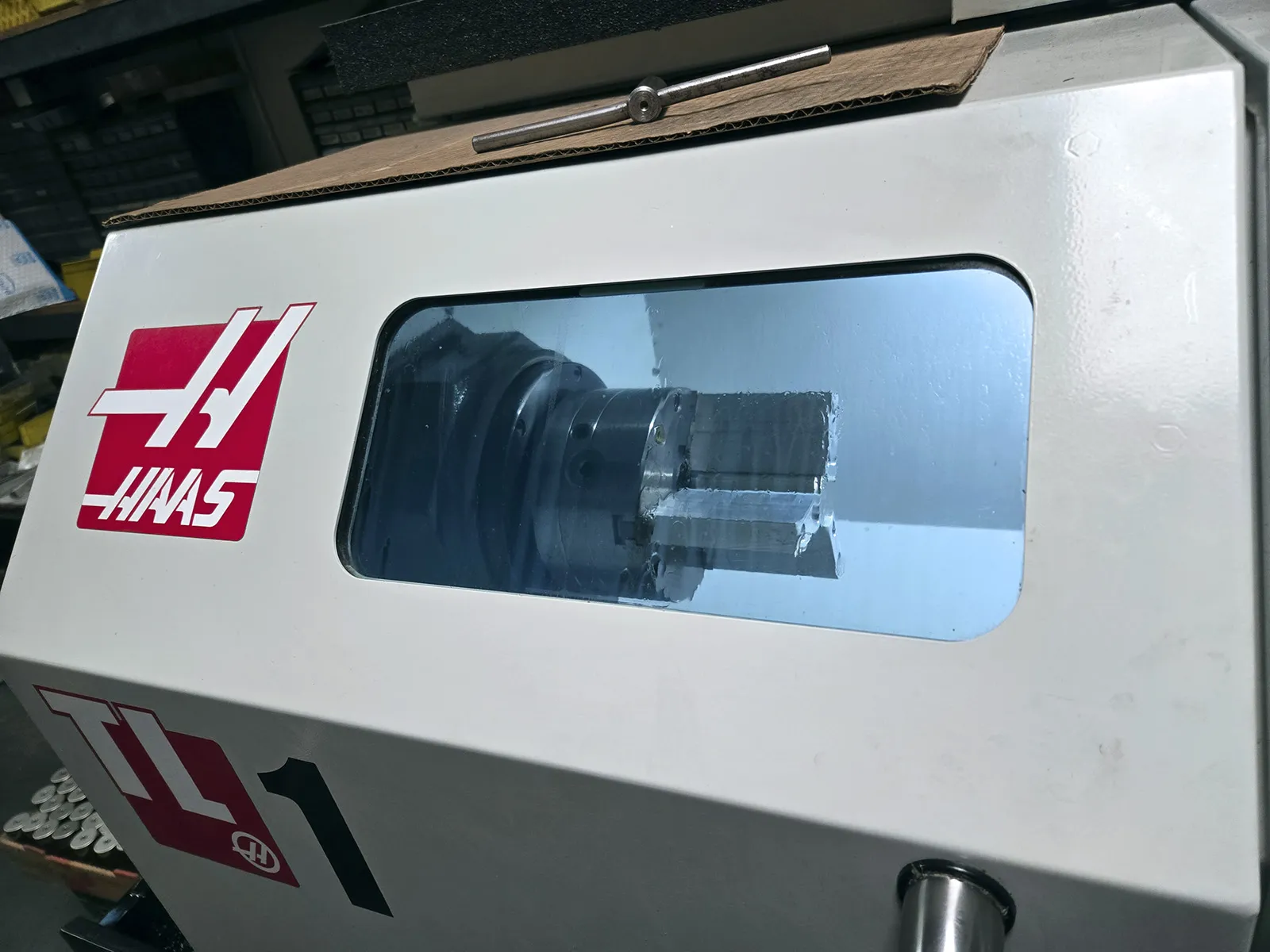

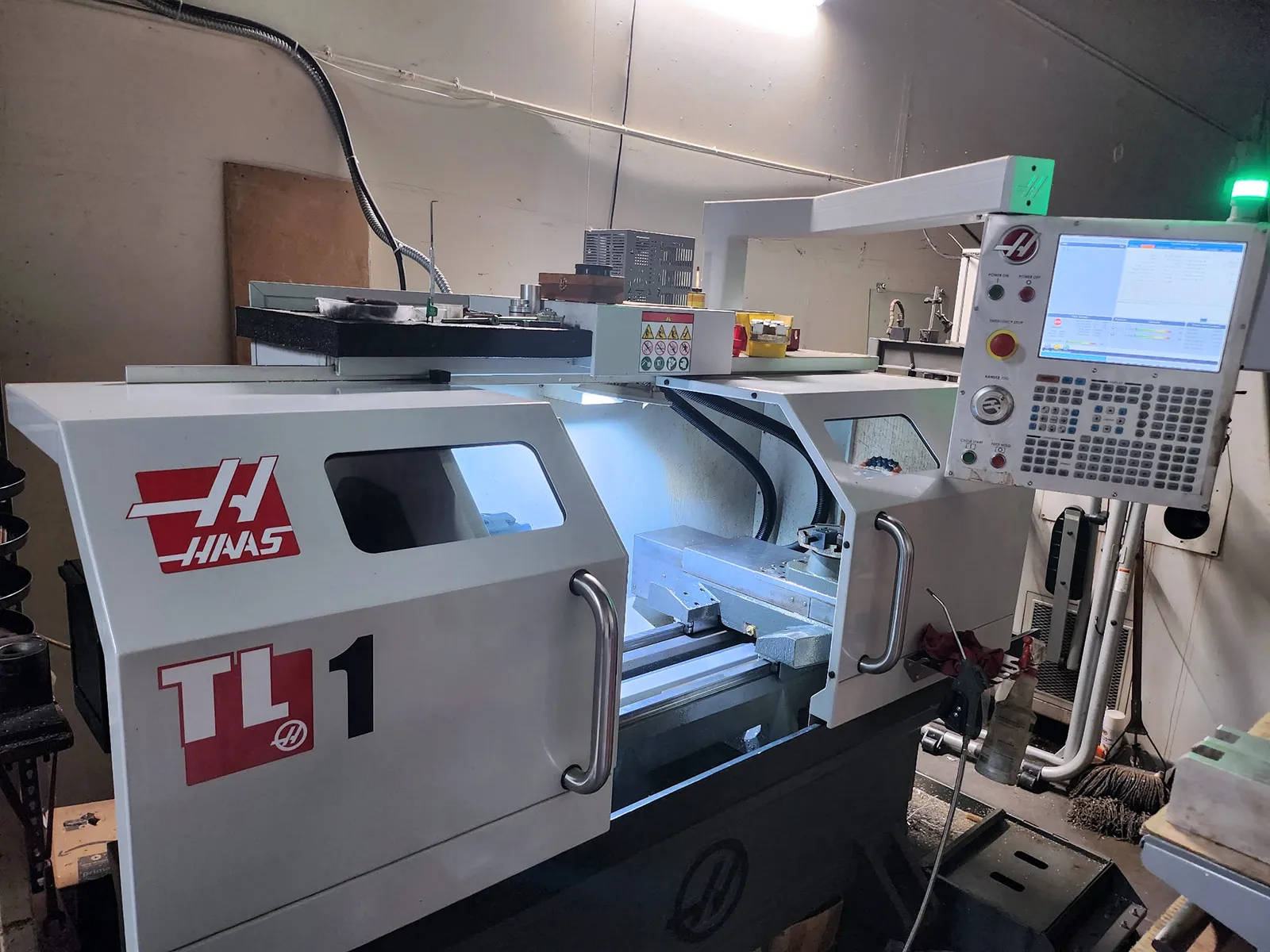

Haas TL-1 2018

machine specifications

• Over Front Apron:

  20.0 in

• Over Cross Slide:

  11.0 in

• Chuck:

  8.0 in

• Max Cutting Length (with 8-station turret):

  1.65 in

• X Axis:

  8.00 in

• Z axis:

  30.00 in

• Rapids on X:

  450 ipm

• Rapids on Z:

  450 ipm

• Max Thrust X:

  3894 lbf

• Max Thrust Z:

  1947 lbf

• Spindle Nose:

  A2-5

• Max Rating:

  10.0 hp

• Max Speed:

  1800 rpm

• Max Torque:

  108.0 ft-lbf @ 355 rpm

• Spindle Bore:

  ø 2.30 in
