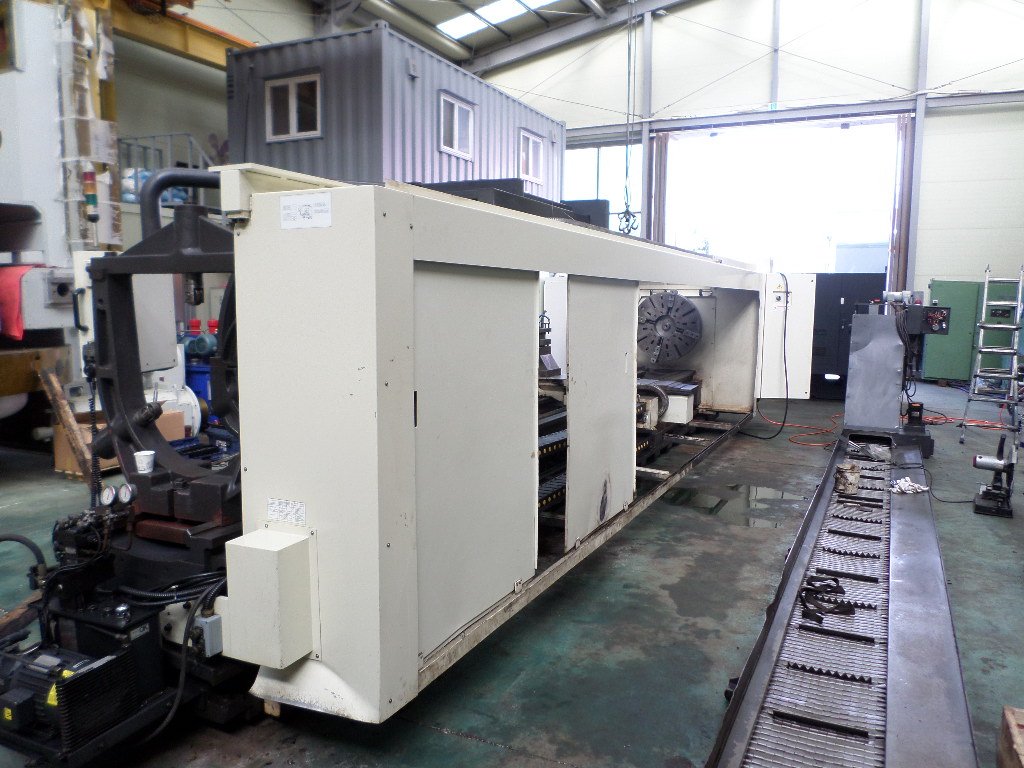

Hwacheon Mega 100 x 6000 2008

machine specifications

• Y - Axis Travel (inches):

  15.7" / 400mm

• X-Axis Servo Motor:

  1.34 HP

• Z - Axis Travel (inches):

  14.7" / 375mm

• Z-Axis Servo Motor:

  4 HP

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  30 HP

• Spindle Nose:

  A2 20

• Spindle Ranges:

  Auto 3 Steps

• Spindle Bore Taper:

  No. 260

• Spindle through Hole:

  10.03"

• Chuck Size (Inches):

  8"

• Dist. Between Centers (inches):

  236"

• Max Swing (inches):

  17.32"

• Swing over cross slide:

  28.34"

• Max Turning Diameter on Cross Slide:

  27.55"

• Max Cutting Diameter over Bed:

  42.12"

• Tailstock Quill Diameter:

  5.9"

• Tailstock Bore Taper:

  No. 6

• Bed Length:

  236"

• Bed Sliding Length:

  27.55"

• Turret Capacity:

  8 Positions

• Standard Tool Size:

  32 (Auto Turret: 25)

• Quill Travel:

  10.23"

• Feedrates (X/Y/Z):

  236 IPM X/Z Axis

• Resonator ( Type ):

  55

• Coolant Pump Motor:

  0.24 HP

• Head Lubrication Motor:

  0.07 HP

• Power:

  45 kVa

• Spindle Taper (CAT/BT):

  HSK-463

• Bar Stock Capacity:

  2.0"

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Pallet Size (inches):

  25"

• X - Axis Travel (inches):

  15.7" / 400mm

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC
